structural analysis Figure Q() Question 2 For the bar assemblages shown in Figure Q(2), determine the nodal displacements, the forces in each element and the reactions. Use the direct stiffness me...
Problem 2: a. For the plane truss shown in Figure 2, determine the nodal displacements, the element forces and stresses, and the support reactions. All elements have E-70 GPa and A-25 cm 100 kN 50 kN 50 kN 4 4 6 Figure 2. Plane Truss
Problem 2: a. For the plane truss shown in Figure 2, determine the nodal displacements, the element forces and stresses, and the support reactions. All elements have E-70 GPa and A-25 cm 100 kN 50...
Problem 2: For the beam shown in below figure, determine the nodal displacements and slopes, the forces in each element, and the reactions. 4 kN/ Im E 70 GPa 13 x 10-4 m4 4 m

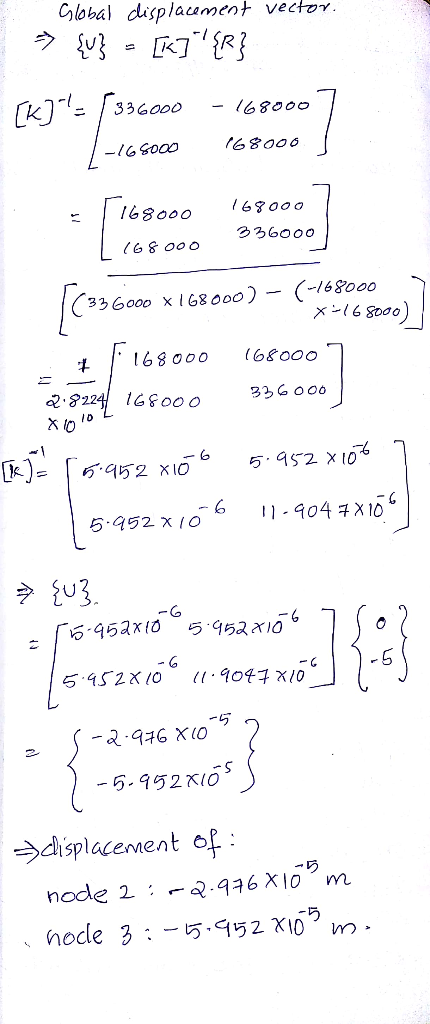

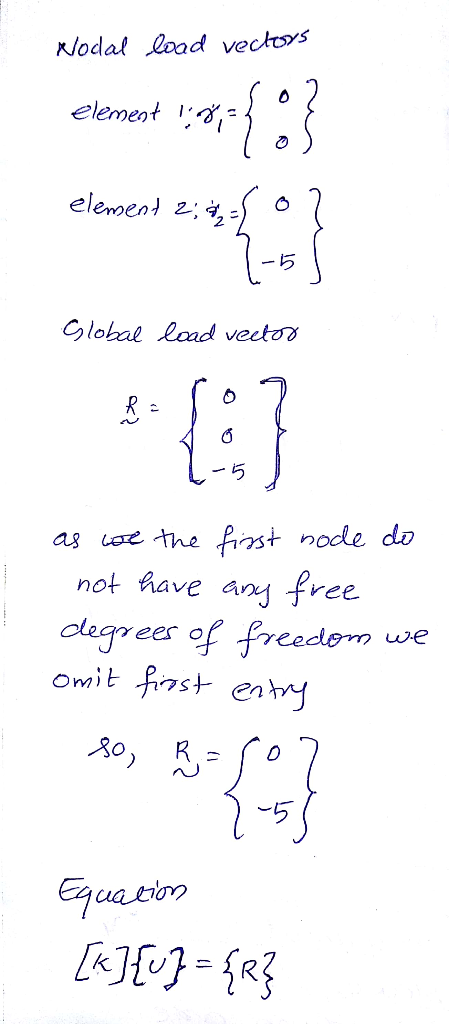

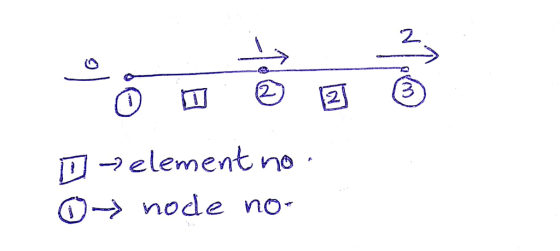

Determine the nodal displacements and find the reaction forces
using the finite element method.
Correct Answer:
1 m 1000 kN - Determine displacements and reactions E = 210 GPa 1 for 1 and 2 A=6x10-4 m| E = 210 GPa 1 m →X A=672x10-4 m2 for 3 d2x = 11.91x10-m; dăx = 5.613x10-'m . Fix =-500kN; F1, =-500kN; F2y = 0; F;, = 707 kN
Solve all problems using the finite element stiffness method. For the rigid frame shown in Figure P5-4, determine (1) the nodal displacements and rotation at node 4, (2) the reactions, and (3) the forces in each element. Then check equilibrium at node 4 Finally, draw the shear force and bending moment diagrams for each element. Let E 30x 103 ksi, A 8 in2, and I 800 in.4 for all elements. 20 kip 25 ft 25 ft 40 ft Figure P5-4...
problem 5-10
For the rigid frames shown in Figure, determine the displacements and rotations of the nodes the element forces, and the reactions. The values of E, A, and /to be used are listed next to each figure. 10 KN E 210 GPa A x 10-2m 2 x 10-m O kN- m 10 kN Tm 5 kN m 45°
For the rigid frames shown in Figure, determine the displacements and rotations of the nodes the element forces, and the reactions....
Consider the bar in Fig.3.7 loaded as shown. Determine the nodal displacements, element stresses, and support reactions. Solve this problem by hand calculation, adopting the elim- ination method for handling boundary conditions. Verify your results using program FEMID. 400 mm2 250 mm2 P-300 kN > X
Consider the bar in Fig.3.7 loaded as shown. Determine the nodal displacements, element stresses, and support reactions. Solve this problem by hand calculation, adopting the elim- ination method for handling boundary conditions. Verify your...
For the spring assemblage shown in Figure 2-13, obtain (a) the global stiffness matrix, (b) the displacements of nodes 2-4, (c) the global nodal forces, and (d) the local element forces. Node l is fixed while node 5 is given a fixed, known displacement δ= 20.0 mm. The spring constants are all equal to k = 200 kN/m.
2. For the spring assemblages shown in Figures 2a through 2e, determine the nodal displacements, the forces in each element, and the reactions. k = 3000 lb/in. k =3000 lb/in. k = 3000 lb/in. 2000 lb 1000 lb 4 Figure 2a. k= 500 lb/in. a 3000 lb/in. 2000 lb V 4 Rigid bar_ k =500 lb/in. Figure 2b.
For the bar assemblage shown Data: in the figure, determine the nodal displacements, the E=nx10" Pa forces in each element, the L; =nx 500mm A=nx10-m? 13 reactions and the stresses L =nx 500mm F =nx10*N L = n x 250mm F2 = 2.5x F, F2 12 L
