R1 = 49.7 Ohms, C1 = 1.60 uF

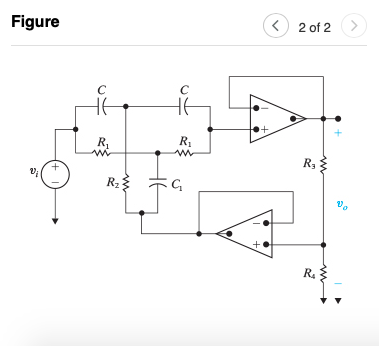

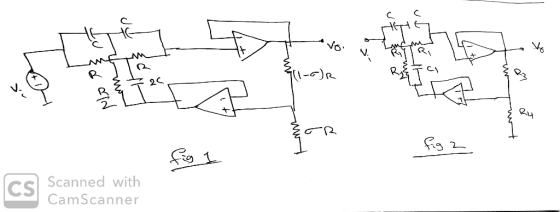

Figure 2 of 2 l6 RI R3 RC 2 Rs

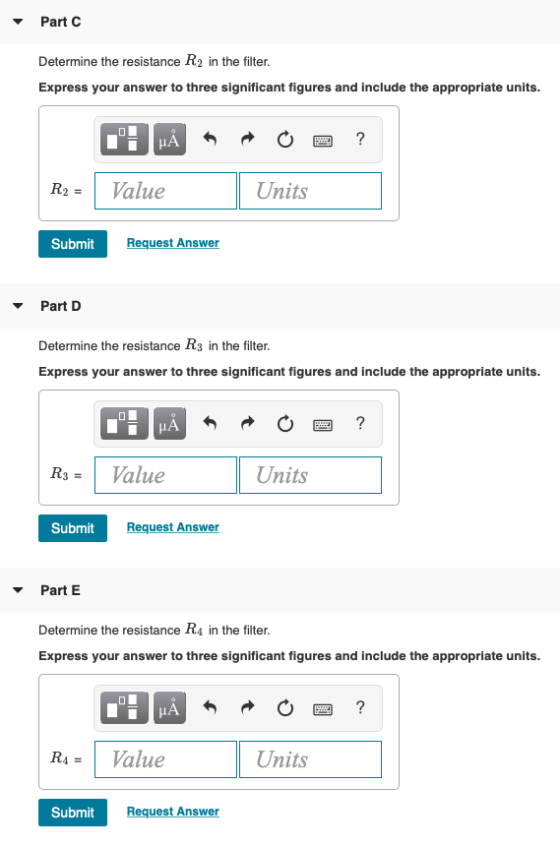

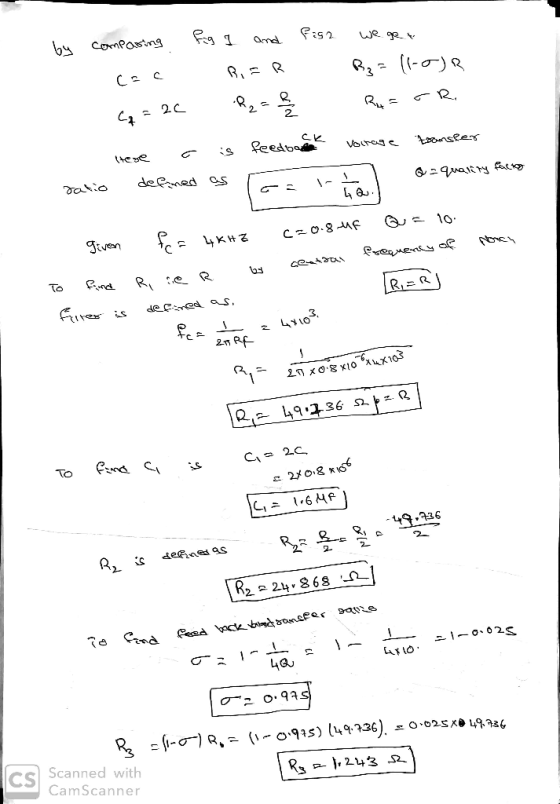

Part C Determine the resistance R2 in the filter Express your answer to three significant figures and include the appropriate units R2Value Units Submit Request Answer Part D Determine the resistance R3 in the filter Express your answer to three significant figures and include the appropriate units HA RValue Units Submit Request Answer Part E Determine the resistance R4 in the filter Express your answer to three significant figures and include the appropriate units R4-Value Units Submit Request Answer

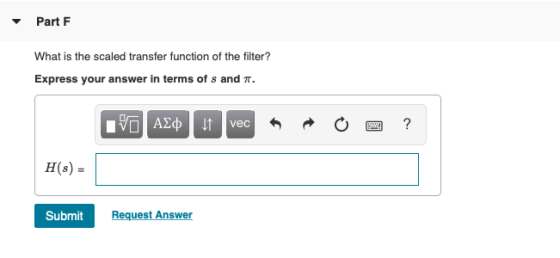

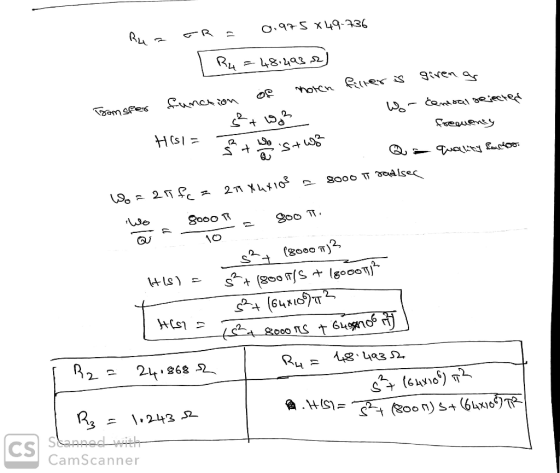

▼ Part F What is the scaled transfer function of the filter? Express your answer in terms of s and T. vec H(s)- Submit Request Answer
Homework Answers
Add Answer to:

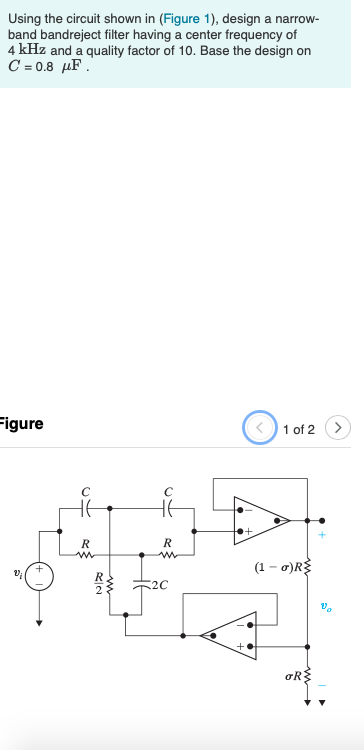

R1 = 49.7 Ohms, C1 = 1.60 uF Using the circuit shown in (Figure 1), design a narrow band bandreject filter having a center frequency of 4 kHz and a quality factor of 10. Base the design on igure 1 of...
