this is structural mechanic concrete
Homework Answers
Length of span = 18 ft = 18 * 12 = 216 in
Simply supported beam
Grade 60 steel reinforcement
Based on deflection, thickness of beam, h = L/16
h = 216/16 = 13.5 in
Add Answer to:

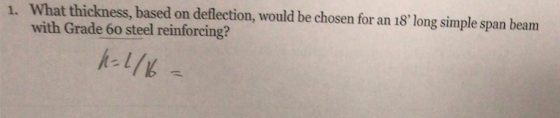

this is structural mechanic concrete What thickness, based on deflection, would be chosen for an 18' long simple span beam with Grade 60 steel reinforcing? 1. What thickness, based on deflec...
this is structural mechanic concrete What thickness would be chosen for the design of a 1o'...
this is structural mechanic concrete

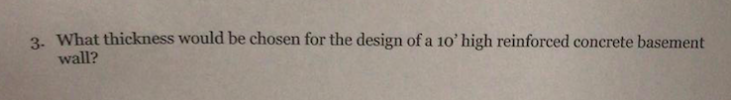

What thickness would be chosen for the design of a 1o' high reinforced concrete basement wall? 3.
