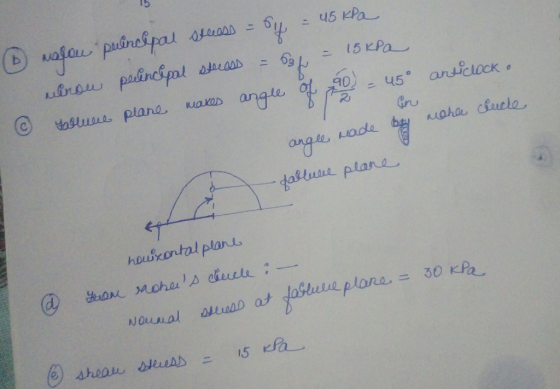

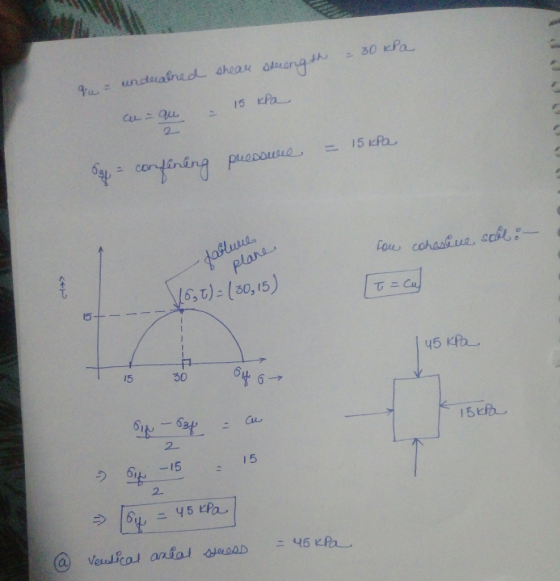

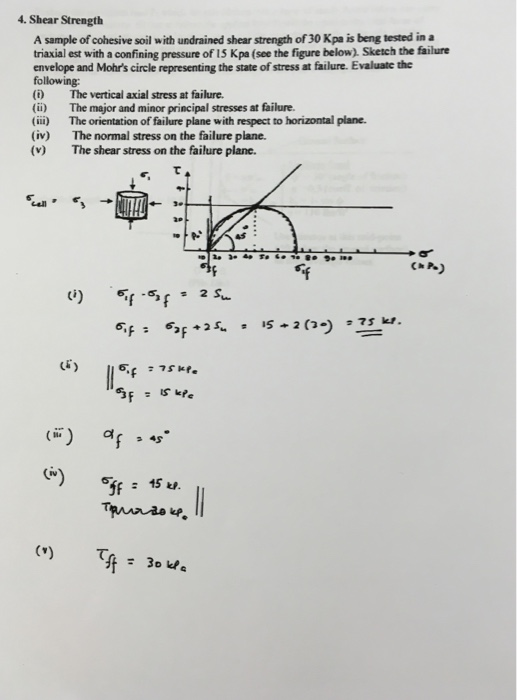

4. Shear Strength A sample of cohesive soil with undrained shear strength of 30 Kpa is beng tested in a triaxial est with a confining pressure of 15 Kpa (see the figure below). Sketch the failure...
The state of stress within the soil below the ground surface is σ.-28 kPa, σ,-14 kPa,...
The state of stress within the soil below the ground surface is σ.-28 kPa, σ,-14 kPa, and t-4 kPa on the horizontal plane. Using Mohr's circle; a) Find the magnitude and directions of the major and minor principal stresses, that is the plane on which there are no shear stresses. b) If the material is a loose sand with a known friction angle of p-30 degrees and c'-0, construct the Coulomb failure envelope and determine if this soil is in...
2. The results of a Consolidated Undrained (CU) triaxial test on a sand soil are in the figures below. The sample was subjected to a vertical load (do). At failure, the Δσ was 914 psi and the induced...
2. The results of a Consolidated Undrained (CU) triaxial test on a sand soil are in the figures below. The sample was subjected to a vertical load (do). At failure, the Δσ was 914 psi and the induced pore water pressure at failure (Au) was 683 psi. consolidated to a stress of 12 psi and then Au 6.83 psi σ,-12 psi -σ,-12 psi Sand At Failure Initial (Consolidation) A. Draw both the total and effective stress Mohr's Circles at failure...
Question 4(Shear Strength) Note: Part a) and b) must be answered on GRAPIT PAPERI A series...
Question 4(Shear Strength) Note: Part a) and b) must be answered on GRAPIT PAPERI A series of conventional triaxial compression tests were conducted on three identical samples of a cohesionless soil. Test results are tabulated as follows: Sample Effective Confining Pressure, 0' (kN/m?) 198.8 347.9 280.0 Principal Stress Difference at Failure, Ag (kN/m2) 596.4 1043.7 a) Draw the Mohr's circles for the soil samples A and B in terms of effective stresses. [10 marks) b) By drawing the Mohr-Coulomb failure...
5, A soil element inside a 20° natural soil slope carries total vertical stress (%) of...
5, A soil element inside a 20° natural soil slope carries total vertical stress (%) of 140 kPa, total horizontal stress (on) of 80 kPa and shear stress (Tvh) of 15 kPa Canticlockwise shear stress on vertical plane). The pore-water pressure (u) inside the element is 30 kPa. The critical state angle of friction of the soil is 30o and its undrained shear strength is 40 kPa. (a) Draw the Mohr's stress circles for this element in terms of total...
PART IV SHEAR STRENGTH OF SOILS 38 pts PROBLEM 4.1 a) A triaxial consolidated drained test...
PART IV SHEAR STRENGTH OF SOILS 38 pts PROBLEM 4.1 a) A triaxial consolidated drained test is performed on a NC clay with ?.-700 kPa and uo-200. The additional axial stress applied through the piston during the shear phase is 1130 kPa. What is the angle of internal friction of the clay (assume c'-0)? Draw total and effective stress Mohr circles for pre-shear and failure conditions. Indicate position of failure plane b) A duplicate specimen is tested undrained following identical...
Problems 39 ist four major factors that influence the internal friction angle of cohesionless soils 7-2 Define soil sensitivity and thixotropy In a direct shear test on a loose sand, a shearing s...
Problems 39 ist four major factors that influence the internal friction angle of cohesionless soils 7-2 Define soil sensitivity and thixotropy In a direct shear test on a loose sand, a shearing stress of 36.1 kPa was recorded 7-3 while the normal stress on the failure plane was 66.4 kPa. (a) What are the shear strength parameters, c', φ'? (b) Find the major and minor principal stresses at failure. (c) Determine the shear strength at a normal stress of 110.0...
1. The following results were obtained at failure in a series of drained triaxial tests on...
1. The following results were obtained at failure in a series of drained triaxial tests on fully saturated clay specimens originally 38 mm diameter by 76 mm long. The minor and major principal stresses are calculated and presented in the table below (You are responsible of learning this procedure for the MT exam). All-round pressure (kN/m²) Axial compression (mm) Axial load (N) Volume change (ml) 200 7.22 480 5.25 400 8.36 895 600 9.41 1300 9.30 7.4 (a) Determine the...
3. Shear Strength a. Plot the effective stress Mohr-Coulomb failure envelope for a soil with c'-500...
3. Shear Strength a. Plot the effective stress Mohr-Coulomb failure envelope for a soil with c'-500 b. A plane through a sample of this soil has an effective normal stress of c. Use a Mohr circle that touches the failure enve psf and 32 deg. acting on it. What is the shear strength of the soil on that plane? of 2000 psf to estimate the values of σ, and σ, at a state of shear failure 2000 psf lope at...
The state of stress within the soil below the ground surface is σ.-28 kPa, σ,-14 kPa, and t-4 kPa on the horizontal plane. Using Mohr's circle; a) Find the magnitude and directions of the major and minor principal stresses, that is the plane on which there are no shear stresses. b) If the material is a loose sand with a known friction angle of p-30 degrees and c'-0, construct the Coulomb failure envelope and determine if this soil is in...
2. The results of a Consolidated Undrained (CU) triaxial test on a sand soil are in the figures below. The sample was subjected to a vertical load (do). At failure, the Δσ was 914 psi and the induced pore water pressure at failure (Au) was 683 psi. consolidated to a stress of 12 psi and then Au 6.83 psi σ,-12 psi -σ,-12 psi Sand At Failure Initial (Consolidation) A. Draw both the total and effective stress Mohr's Circles at failure...
Question 4(Shear Strength) Note: Part a) and b) must be answered on GRAPIT PAPERI A series of conventional triaxial compression tests were conducted on three identical samples of a cohesionless soil. Test results are tabulated as follows: Sample Effective Confining Pressure, 0' (kN/m?) 198.8 347.9 280.0 Principal Stress Difference at Failure, Ag (kN/m2) 596.4 1043.7 a) Draw the Mohr's circles for the soil samples A and B in terms of effective stresses. [10 marks) b) By drawing the Mohr-Coulomb failure...
5, A soil element inside a 20° natural soil slope carries total vertical stress (%) of 140 kPa, total horizontal stress (on) of 80 kPa and shear stress (Tvh) of 15 kPa Canticlockwise shear stress on vertical plane). The pore-water pressure (u) inside the element is 30 kPa. The critical state angle of friction of the soil is 30o and its undrained shear strength is 40 kPa. (a) Draw the Mohr's stress circles for this element in terms of total...
PART IV SHEAR STRENGTH OF SOILS 38 pts PROBLEM 4.1 a) A triaxial consolidated drained test is performed on a NC clay with ?.-700 kPa and uo-200. The additional axial stress applied through the piston during the shear phase is 1130 kPa. What is the angle of internal friction of the clay (assume c'-0)? Draw total and effective stress Mohr circles for pre-shear and failure conditions. Indicate position of failure plane b) A duplicate specimen is tested undrained following identical...
Problems 39 ist four major factors that influence the internal friction angle of cohesionless soils 7-2 Define soil sensitivity and thixotropy In a direct shear test on a loose sand, a shearing stress of 36.1 kPa was recorded 7-3 while the normal stress on the failure plane was 66.4 kPa. (a) What are the shear strength parameters, c', φ'? (b) Find the major and minor principal stresses at failure. (c) Determine the shear strength at a normal stress of 110.0...
1. The following results were obtained at failure in a series of drained triaxial tests on fully saturated clay specimens originally 38 mm diameter by 76 mm long. The minor and major principal stresses are calculated and presented in the table below (You are responsible of learning this procedure for the MT exam). All-round pressure (kN/m²) Axial compression (mm) Axial load (N) Volume change (ml) 200 7.22 480 5.25 400 8.36 895 600 9.41 1300 9.30 7.4 (a) Determine the...
3. Shear Strength a. Plot the effective stress Mohr-Coulomb failure envelope for a soil with c'-500 b. A plane through a sample of this soil has an effective normal stress of c. Use a Mohr circle that touches the failure enve psf and 32 deg. acting on it. What is the shear strength of the soil on that plane? of 2000 psf to estimate the values of σ, and σ, at a state of shear failure 2000 psf lope at...
