Use the C2 point group to illustrate that the irreducible representations in a character table are mutually orthogonal and normalized to the order of the group .

Question

Question

Use the C2 point group to illustrate that the irreducible representations in a character table are mutually orthogonal and normalized to the order of the group .

Use the C₂ point group to illustrate that the irreducible representations in a character table are mutually orthogonal and normalized to the order of the group .

science chemistry

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

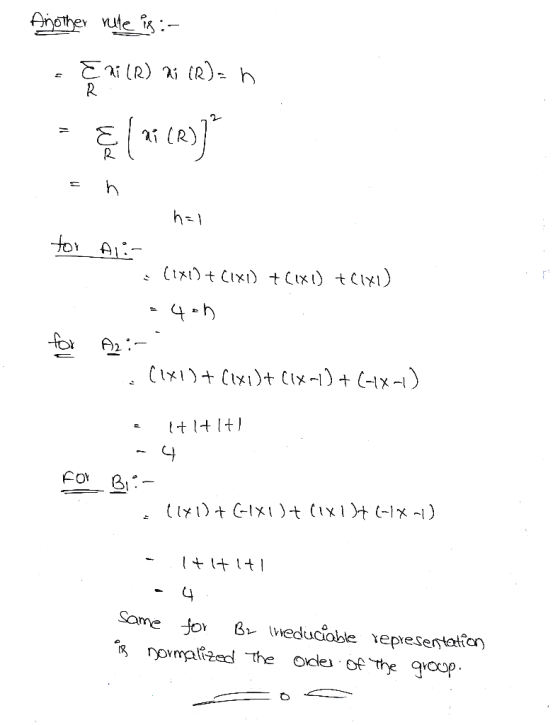

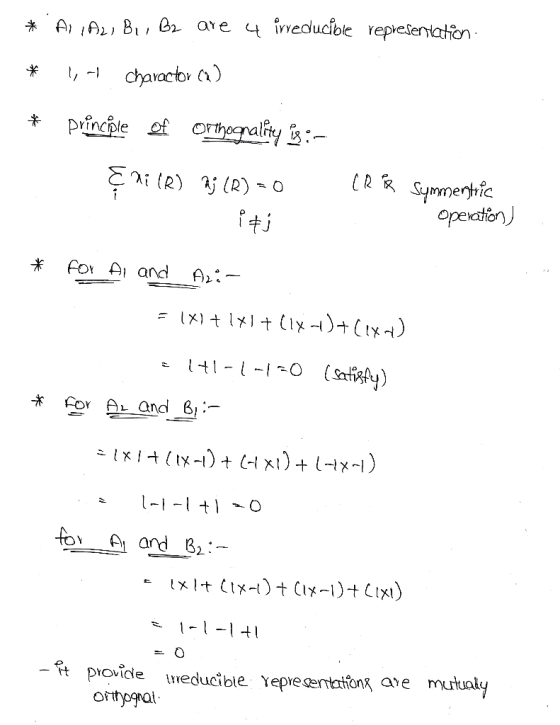

Answer:

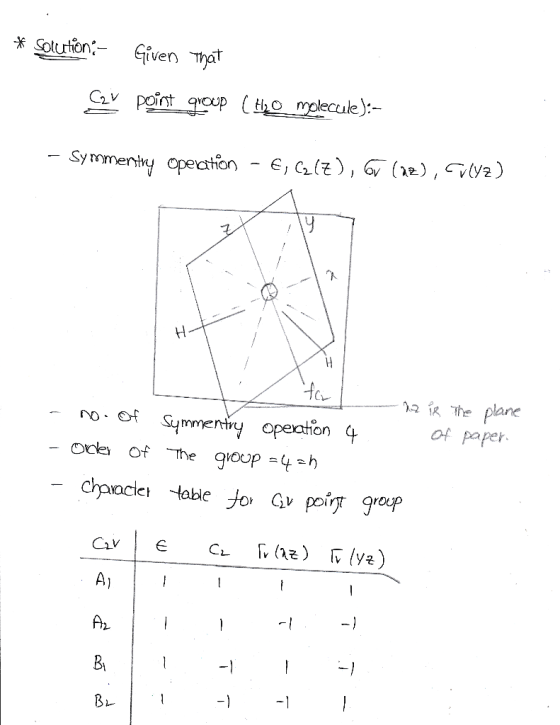

Given that:

Add a comment

Answer 2
