Homework Answers
| LTE(3GPP R8) | LTE-Advanced(3GPP R10) | WiMAX 802.16e(R1.0) | WiMAX 802.16m(R2.0) | |
| USER MOBILITY | 217mph(350km/hr) | 217mph(350km/hr) | 37 to 74mph(60-120km/hr) | 217mph(350km/hr) |
| CHANNEL BANDWIDTH | 1.4,3,5,10,15,20MHz | Aggregate components of release 8 | 3.5, 5,7,8.75,10MHz | 5, 10,20,40MHz |
| LATENCY |
Link layer<5ms Handoff<50ms |
Link layer<5ms Handoff<50ms |
Link layer~20 Handoff~35 to 50 |
Link layer<10ms Handoff<30ms |
| VoIP CAPACITY | 80 users/sector /MHz(FDD) | >80users per sector/MHz(FDD) | 20 users per sector/MHz(TDD) | >30 users per sector/MHz(TDD) |
| SPECTRAL EFFICIENCY |
DL: 1.91 bps/hz(2*2) UL: 0.72 bps/hz(1*2) |
DL: 30bps/hz UL:15bps/hz |
DL:1.91 bps/hz(2*2) UL:0.84bps/hz(1*2) |
DL>2.6bps/hz(4*2) UL>1.3bps/hz(2*4) |
Add Answer to:

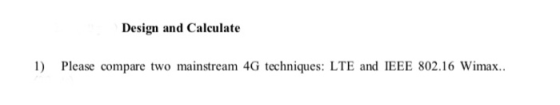

Design and Calculate 1) Please compare two mainstream 4G techniques: LTE and IEEE 802.16 Wimax.. Design and Calculate 1) Please compare two mainstream 4G techniques: LTE and IEEE 802.16 Wima...
