6. (a) Explain the operation of the master-slave S-R flip flop. (b) What is the essential difference in the response of the m
Design the DC fixed mid-point bias conditions and calculate RB, Ic and Rc for a simple common emitter amplifier with followin

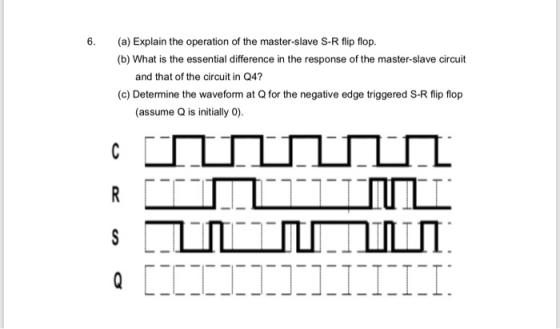

6. (a) Explain the operation of the master-slave S-R flip flop. (b) What is the essential difference in the response of the master-slave circuit and that of the circuit in Q4? (c) Determine the waveform at Q for the negative edge triggered S-R flip flop (assume Q is initially 0)

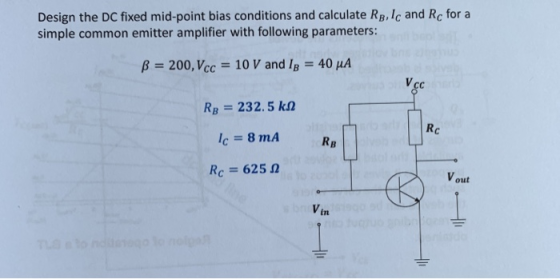

Design the DC fixed mid-point bias conditions and calculate RB, Ic and Rc for a simple common emitter amplifier with following parameters: β 200, Vcc-10 V and IB-40 μΑ V cc R,-232.5 kΩ Re-: 625 Ω out Vin
engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

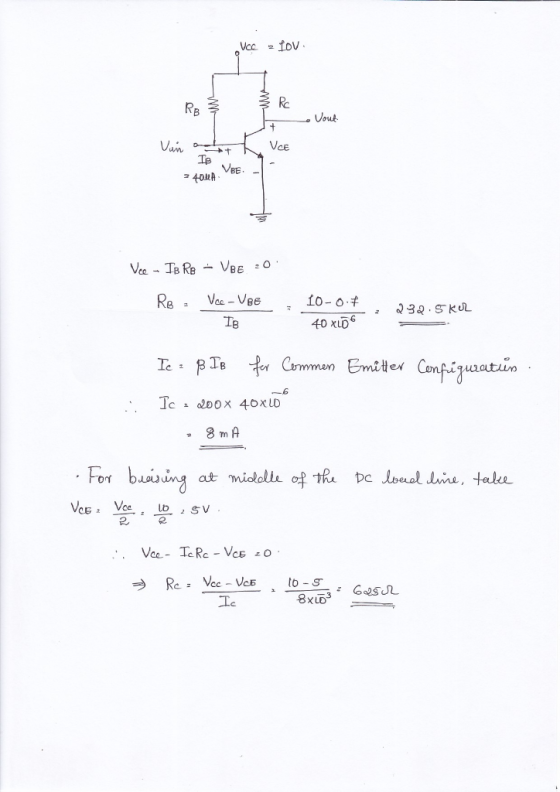

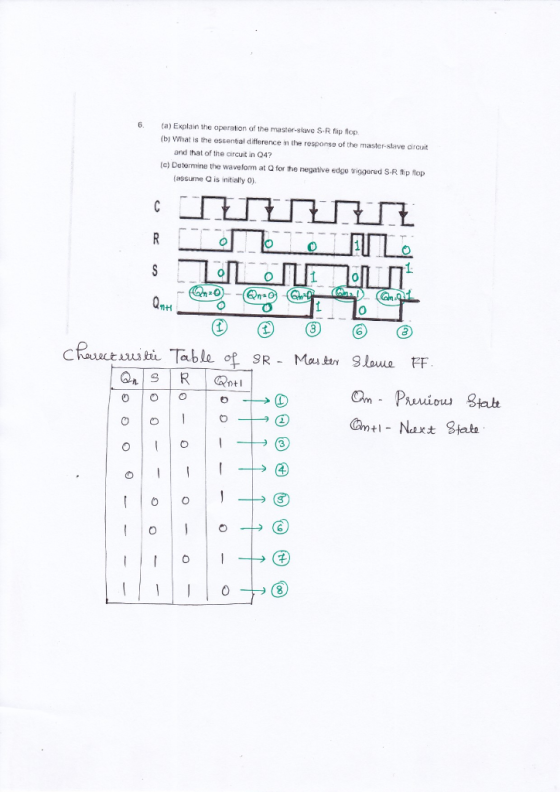

6. (a) Explain the operation af the master-slave S-R fip flop (b) What is the essential difference in the response of the masRc Vout. Vce VBE. Re: Voc-Vee - to-04 IB 40 XUD 2. Re : Yec-VeE.to-gr → 8 xLD3
