Homework Answers
Add Answer to:

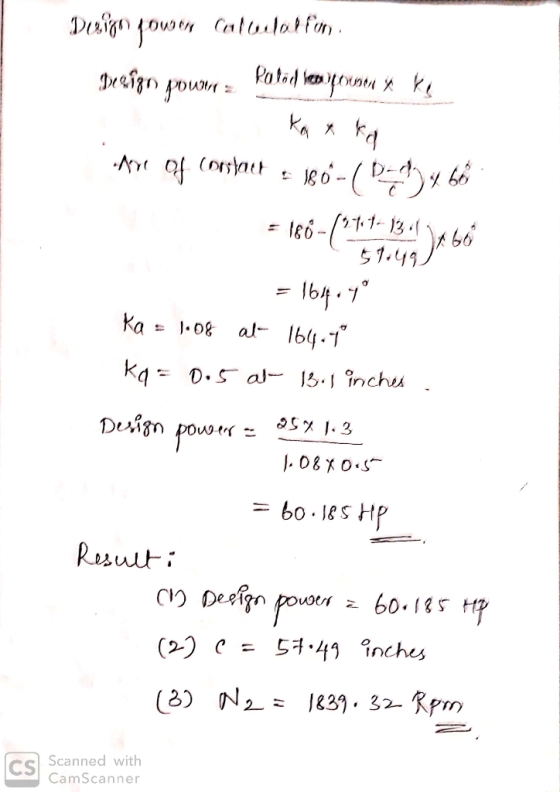

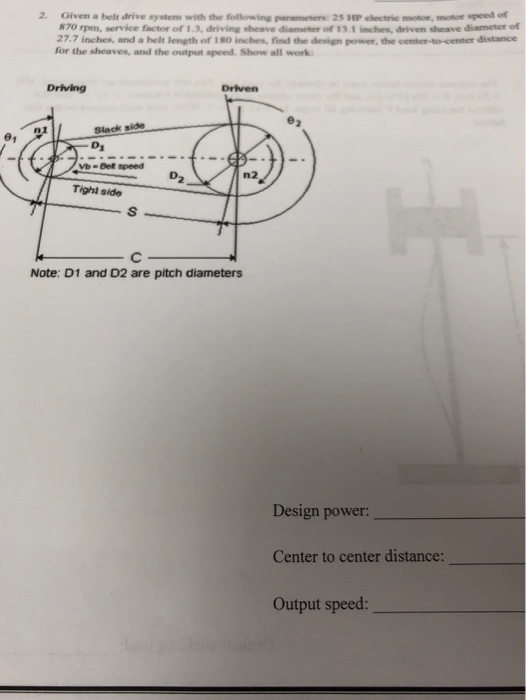

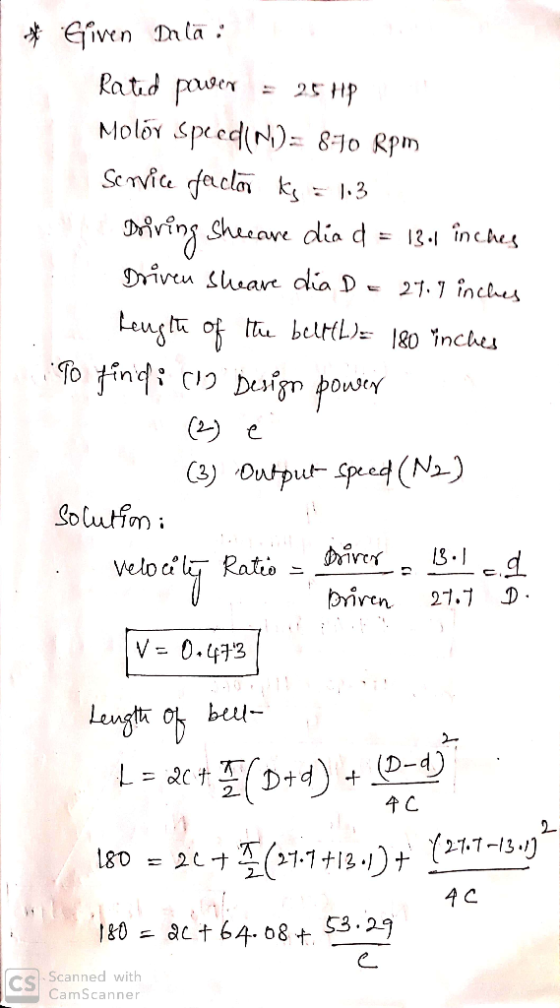

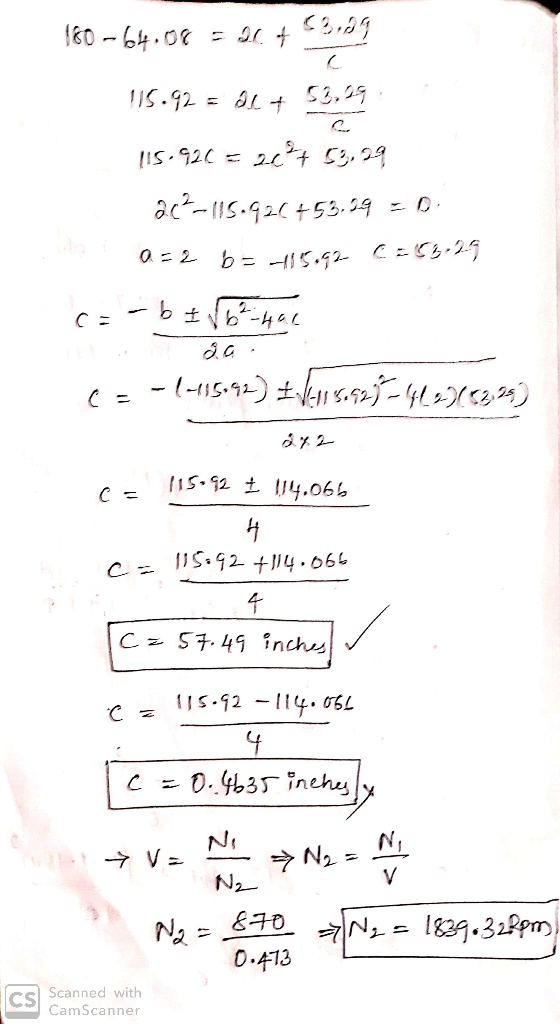

2. Given a belt drive system with the following parmeters: 25 HP electrice motor, motor speed of 870 rpm, service factor of 1.3, driving sheave diameter of 13.1 inches, driven sheave diametet of...
Design a V-belt drive system by specify the belt size, the sheave sizes, and the number...
Design a V-belt drive system by specify the belt size, the sheave sizes, and the number of belts, the actual output speed, and the center distance. Driver type :AC motor (HT) - Driven machine :Hammer mil - Service (h/day) :10 - Input speed (rpm) :890 - Input power (hp) :25 - Nominal output speed (rpm) :310
Design the V-belt drive for the following specifications: Specify the belt size, Belt type, The sheave...
Design the V-belt drive for the following specifications: Specify the belt size, Belt type, The sheave size, the number of belts, the angles of wrap, the belt length, The center distance, The adjusted horsepower Driver type: AC MOTOR Driven machine: Fan Service hours/day: 22 Input speed: 1750 rpm Input power: 5 hp Nominal output speed: 725 rpm
QUESTION 2 Design a V-Beit drive that has the input sheave on the shaft of an...
QUESTION 2 Design a V-Beit drive that has the input sheave on the shaft of an AC electric motor rated at 50 HP (normal torque) at 1200 RPM, ful load speed The drive is to a centrifugal pump that is used 12 hours (h) daily at approximately 450t 10 RPM. The linear beit speed must be 4,500 fimin, and the center distance can not exceed 40 inches Caloulate: (a) Design power (HP) b) Sheave diameters in inches (must be standard...
find v belt drive design power select belt type determine shive size (belt speed 4000 ft/min)...
find v belt drive
design power
select belt type
determine shive size (belt speed 4000 ft/min)
find shive size from power rating figure
find rated power
find estimated centre distance
find belt length (by selecting standard belt length)
calculate actual centre distance
find contact angle for small shieve
determine correct factors
calculate correct power per belt
no. of belt needed
V-Belt Designing Sample Problem . Given: A 4 cylinder diesel engine runs at 80 hp, 1800 rpm, to drive a...
2. A roller chain is to transmit 80 kW at a speed of 700 rpm. Reduction ratio is 5. Driven machinery may cause heavy shock loads while the driving motor has normal torque characteristics. Center dist...
2. A roller chain is to transmit 80 kW at a speed of 700 rpm. Reduction ratio is 5. Driven machinery may cause heavy shock loads while the driving motor has normal torque characteristics. Center distance should be within 550 ± 40 mm and chordal speed variation should be 2.5%. Design the power transmission system
2. A roller chain is to transmit 80 kW at a speed of 700 rpm. Reduction ratio is 5. Driven machinery may cause heavy shock...
0.2) Figure Q.2 shows a drive system in which a 20-hp electric motor drives separate output shaft...
Desgin
0.2) Figure Q.2 shows a drive system in which a 20-hp electric motor drives separate output shafts. Gear A is mounted on the motor shafit that has a rotational spoed or 1750 rpm clockwise. Gear A drives gear train consisting of…B,C,and D thr deliver power through the shafts on which they are mounted. All gears have a diametral pitch of Pa-8.The following data are given Power delivered by gears B, C, and D: Pa Numbers of teeth for all...
Desgin 0.2) Figure Q.2 shows a drive system in which a 20-hp electric motor drives separate...
Desgin
0.2) Figure Q.2 shows a drive system in which a 20-hp electric motor drives separate output shafts. Gear A is mounted on the motor shafit that has a rotational spoed or 1750 rpm clockwise. Gear A drives gear train consisting of…B,C,and D thr deliver power through the shafts on which they are mounted. All gears have a diametral pitch of Pa-8.The following data are given Power delivered by gears B, C, and D: Pa Numbers of teeth for all...
Design the V-belt drive for the following specifications: Specify the belt size, Belt type, The sheave size, the number of belts, the angles of wrap, the belt length, The center distance, The adjusted horsepower Driver type: AC MOTOR Driven machine: Fan Service hours/day: 22 Input speed: 1750 rpm Input power: 5 hp Nominal output speed: 725 rpm
QUESTION 2 Design a V-Beit drive that has the input sheave on the shaft of an AC electric motor rated at 50 HP (normal torque) at 1200 RPM, ful load speed The drive is to a centrifugal pump that is used 12 hours (h) daily at approximately 450t 10 RPM. The linear beit speed must be 4,500 fimin, and the center distance can not exceed 40 inches Caloulate: (a) Design power (HP) b) Sheave diameters in inches (must be standard...
find v belt drive
design power
select belt type
determine shive size (belt speed 4000 ft/min)
find shive size from power rating figure
find rated power
find estimated centre distance
find belt length (by selecting standard belt length)
calculate actual centre distance
find contact angle for small shieve
determine correct factors
calculate correct power per belt
no. of belt needed
V-Belt Designing Sample Problem . Given: A 4 cylinder diesel engine runs at 80 hp, 1800 rpm, to drive a...
2. A roller chain is to transmit 80 kW at a speed of 700 rpm. Reduction ratio is 5. Driven machinery may cause heavy shock loads while the driving motor has normal torque characteristics. Center distance should be within 550 ± 40 mm and chordal speed variation should be 2.5%. Design the power transmission system
2. A roller chain is to transmit 80 kW at a speed of 700 rpm. Reduction ratio is 5. Driven machinery may cause heavy shock...
Desgin
0.2) Figure Q.2 shows a drive system in which a 20-hp electric motor drives separate output shafts. Gear A is mounted on the motor shafit that has a rotational spoed or 1750 rpm clockwise. Gear A drives gear train consisting of…B,C,and D thr deliver power through the shafts on which they are mounted. All gears have a diametral pitch of Pa-8.The following data are given Power delivered by gears B, C, and D: Pa Numbers of teeth for all...
Desgin
0.2) Figure Q.2 shows a drive system in which a 20-hp electric motor drives separate output shafts. Gear A is mounted on the motor shafit that has a rotational spoed or 1750 rpm clockwise. Gear A drives gear train consisting of…B,C,and D thr deliver power through the shafts on which they are mounted. All gears have a diametral pitch of Pa-8.The following data are given Power delivered by gears B, C, and D: Pa Numbers of teeth for all...
