u must show an expression (equation) before inserting in the numbers" β-40. The input signal results in a base 1. For the class A amplifier circuit of fig. Pl, current having a peak valu...

Question

Question

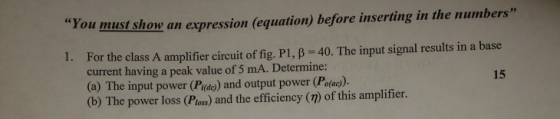

u must show an expression (equation) before inserting in the numbers β-40. The input signal results in a base 1. For the cla

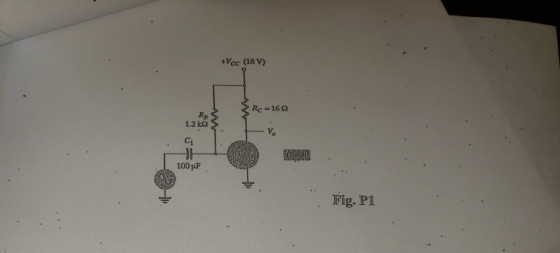

Vcc (18 V) Re-16 Ω 1.2 k2 Ci 100 pF Fig. PI

u must show an expression (equation) before inserting in the numbers" β-40. The input signal results in a base 1. For the class A amplifier circuit of fig. Pl, current having a peak value of 5 mA. Determine: (a) The input power (P(d) and output power (Pofac). (b) The power loss (Ploss) and the efficiency (7) of this amplifier. 15
Vcc (18 V) Re-16 Ω 1.2 k2 Ci 100 pF Fig. PI

engineering Electrical-Engineering

Add a comment Improve this question Transcribed image text

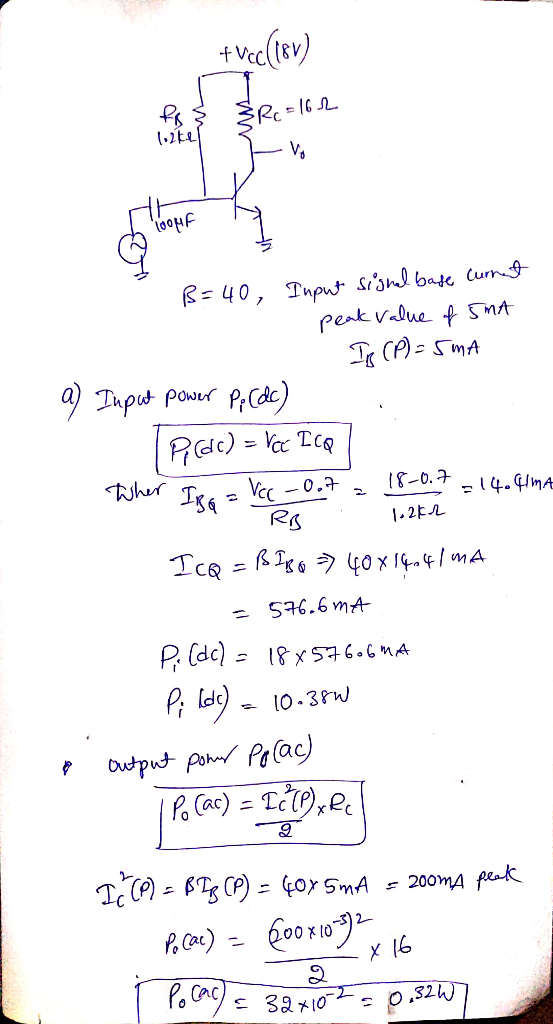

Answer 1

Answer #1

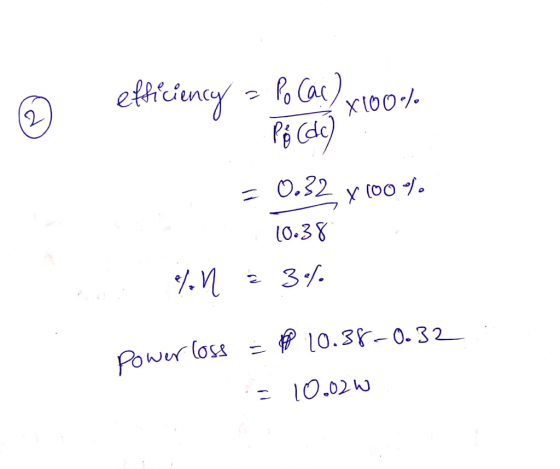

0.32 v (oo l0.38 Pow 10.02เง

Add a comment
