ONLY ANSWER IF 100 PERCENT CORRECT USE MATLAB 9 8 6 3 2 t (s) 10 0 2 4 6 8 Entire an equivalent function for the plot shown here using the step function, u(t) 9 8 6 3 2 t (s) 10 0 2 4 6 8 Ent...

Question

Question

ONLY ANSWER IF 100 PERCENT CORRECT

USE MATLAB

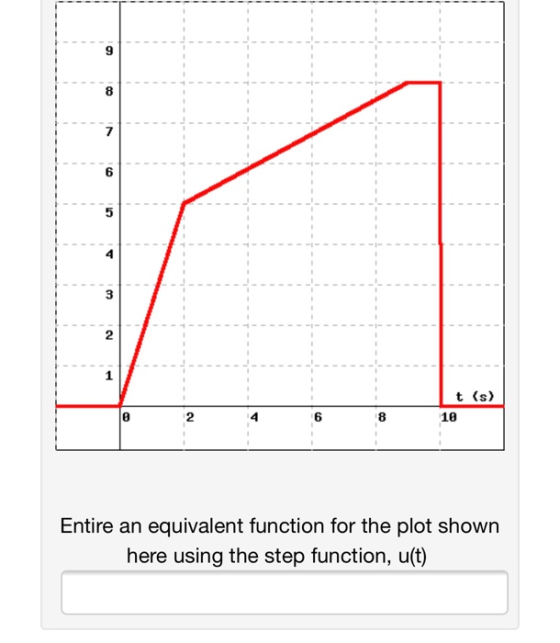

9 8 6 3 2 t (s) 10 0 2 4 6 8 Entire an equivalent function for the plot shown here using the step function, u(t)

engineering Electrical-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

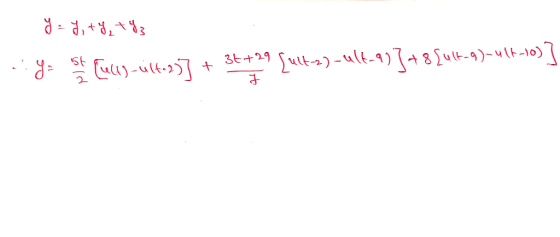

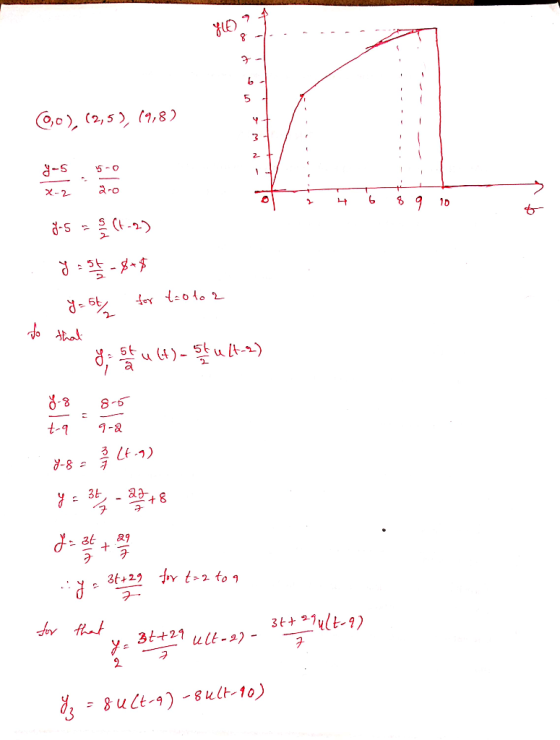

5 d-5 5- 1D 8-8 -5 을 Lt.1) 8-87 ulE -s) st 2

Add a comment

Answer 2

Similar Homework Help Questions

Using MATLAB 4 8 Entire an equivalent function for the plot shown here using the step function, u(t) 4 8 Entire an equivalent function for the plot shown here using the step function, u(t)

Using MATLAB 4 8 Entire an equivalent function for the plot shown here using the step function, u(t) 4 8 Entire an equivalent function for the plot shown here using the step function, u(t)
**Using MATLAB** 0 t (s) -4 -3 -2 -1 -1 Entire an equivalent function for the plot shown here using the step function, u(t) 0 t (s) -4 -3 -2 -1 -1 Entire an equivalent function for the plot show...

**Using MATLAB** 0 t (s) -4 -3 -2 -1 -1 Entire an equivalent function for the plot shown here using the step function, u(t) 0 t (s) -4 -3 -2 -1 -1 Entire an equivalent function for the plot shown here using the step function, u(t)
please answer this in matlab so it can match the function. thank you - L -...

please answer this in matlab so it can match the function. thank you - L - - - - - -2 t (s) Entire an equivalent function for the plot shown here using the step function, u(t)

Matlab help 1) Given the functions x1()= tu()-tuft-1) and X2(t)=10e-5,11(), do the following: 1. Plotx,(t) and x2(0) using MATLAB 2. Use MATLAB to find and plot x(0=x:@*.x2(t), where * denotes co...

Matlab help 1) Given the functions x1()= tu()-tuft-1) and X2(t)=10e-5,11(), do the following: 1. Plotx,(t) and x2(0) using MATLAB 2. Use MATLAB to find and plot x(0=x:@*.x2(t), where * denotes convolution. 3. Find x(t)=x;()*X2(1) by hand using Laplace transforms. 4. Plot the result of part 3 in MATLAB and compare it to that found in part 2. 2) Given the transfer function shown below, do the following: 1. Find the system's impulse response and plot it using MATLAB 2. Repeat...
X(s) U(s) s2+ 10s+625 625 b. Plot/find the time response of this system using MATLAB when...

X(s) U(s) s2+ 10s+625 625 b. Plot/find the time response of this system using MATLAB when subjected to the input signal in Figure 2. Assume t -O, t2 -10-9, and A - 10 Hint: What can the input signal be approximated as? Use the approximation. Plot the response for at least 1 second. 1) Provide the plot. You do not need to print an answer to the hint. 0 Figure 2. Input u(t) c. Redo part b using the transfer...
Express the function below using window and step functions and compute its Laplace transform. Ag(t) 10-...

Express the function below using window and step functions and compute its Laplace transform. Ag(t) 10- 0- 0 6 8 10 Click here to view the table of Laplace transforms. Click here to view the table of properties of Laplace transforms. Express g(t) using window and step functions. Choose the correct answer below. O A. g(t) = (4t-2)u(t-2)+(-4t+4)u(t-4) O B. g(t) = (4t-8)112,4(t)+(-4t + 16)u(t - 3) O c. g(t) = (4t-8)112,3(t)+(-4t + 16)113,4 (t) D. g(t) = u(t-2) +...

Express the function below using window and step functions and compute its Laplace transform. Ag(t) 10-...

Express the function below using window and step functions and compute its Laplace transform. Ag(t) 10- 0- 0 2 6 8 10 Click here to view the table of Laplace transforms. Click here to view the table of properties of Laplace transforms. Express g(t) using window and step functions. Choose the correct answer below. O A. g(t) = (5t - 10)112,4(t) + (-5t+20)u(t-3) OB. g(t)= u(t-2) + (5t - 10)112,3(t) + (-5t+20)113,4(t) + u(t-4) O C. g(t) = (5t -...
Please show answer using MATLAB Time, t(s) 0 2 4 6 8 10 12 14 16...

Please show answer using MATLAB Time, t(s) 0 2 4 6 8 10 12 14 16 Position, x(m) 0 0.7 1.8 3.4 5.1 6.3 7.3 8.0 8.4 To find the velocity at all times using the two-point differencing formula (and where appropriate the three-point forward or backward differencing formulae), these should yield the results correct to O(h2) To find the acceleration at all times using the three-point central differencing formula (and where appropriate the four-point forward or backward differencing formulae),...
Express the function below using window and step functions and compute its Laplace transform. Ag(t) 10-...

Express the function below using window and step functions and compute its Laplace transform. Ag(t) 10- o+ 0 2 6 8 10 Click here to view the table of Laplace transforms. Click here to view the table of properties of Laplace transforms. Express g(t) using window and step functions. Choose the correct answer below. O A. g(t) = u(t - 4) + (31 - 12)114,5(t)}-( - 36 + 18)|15,6 (t) + u(t-6) O B. g(t) = (3-12)114,5(t)+(-3t+18)15,6(t) O c. g(t)...

Express the function below using window and step functions and compute its Laplace transform. 0, 0<t<3...

Express the function below using window and step functions and compute its Laplace transform. 0, 0<t<3 2, 3<t<5 g(t) = 6, 5<t<8 4, 8<t Click here to view the table of Laplace transforms. Click here to view the table of properties of Laplace transforms. Express g(t) using window and step functions. Choose the correct answer below. O A. g(t) = 2ut - 3) + 6(t-5) + 4u(t-8) B. g(t) = 2113,5(t) + 6115,8(t) + 4u(t-8) O c. g(t) = 2113,5(t)...
