how to move the block right to pass the pick up point with out change the transfer function no more info is needed just use G(s) and H(s) as given 5. For the system of Prelab 3, push H(s) to the...

Question

Question

how to move the block right to pass the pick up point with out change the transfer function
5. For the system of Prelab 3, push H(s) to the right past the pickoff point and draw the equivalent system. C(s) R(s) + G(s)

5. For the system of Prelab 3, push H(s) to the right past the pickoff point and draw the equivalent system. C(s) R(s) + G(s)

no more info is needed just use G(s) and H(s) as given

engineering Electrical-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

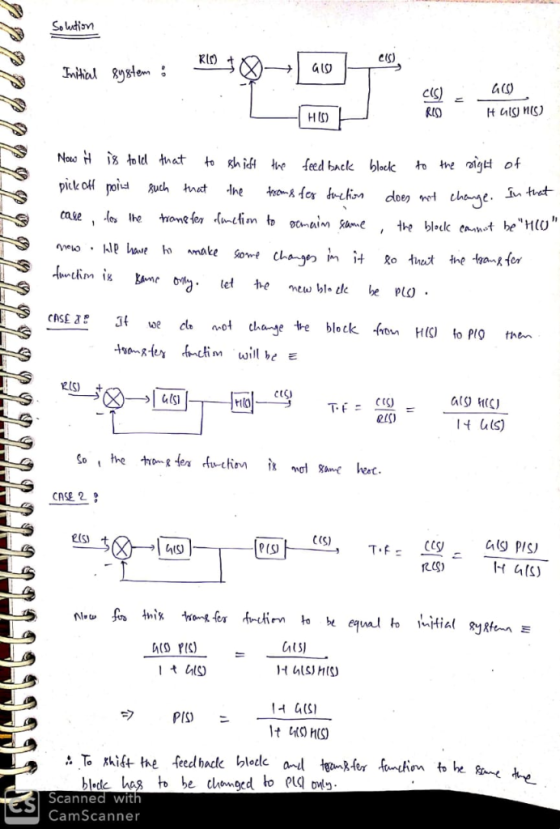

So wtion e) H (0) 2ts) alsi rtO 4 uS) C(S) 2(s) P(S rcs) bleck has to be changed, to o1qo Scanned with CamScanner

THANK YOU......PLEASE LIKE

Add a comment

Answer 2
