Question

0.12S

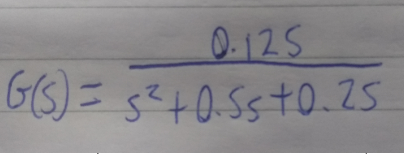

[10 marks] 1(e) Determine the input to the system when the output of the system is [10 marks] 1(f) It is required to adjust t

0.12S
[10 marks] 1(e) Determine the input to the system when the output of the system is [10 marks] 1(f) It is required to adjust the gain and the feedback of the states in the companion form state-space representation so that the impulse response of the new system with the adjusted gain and feedback is (i) Determine the required transfer function of the new system (i) Form the companion form state-space representation for the new (ii) From the results in parts 1(d) and 1(), determine the adjustment to 2 marks] 4 marks] [4 marks] [5 marks] with the adjusted gain and feedback. system with the adjusted gain and feedback the gain and to the feedback that is required 1(g) Determine the percentage overshoot of the unit-step response of the new system (the system with the adjusted gain and feedback). [5 marks] 1(h) Determine the period of oscillation of the unit-step response of the new system (the system with the adjusted gain and feedback) and comment on the result.
0 0
Add a comment Improve this question Transcribed image text
Answer #1

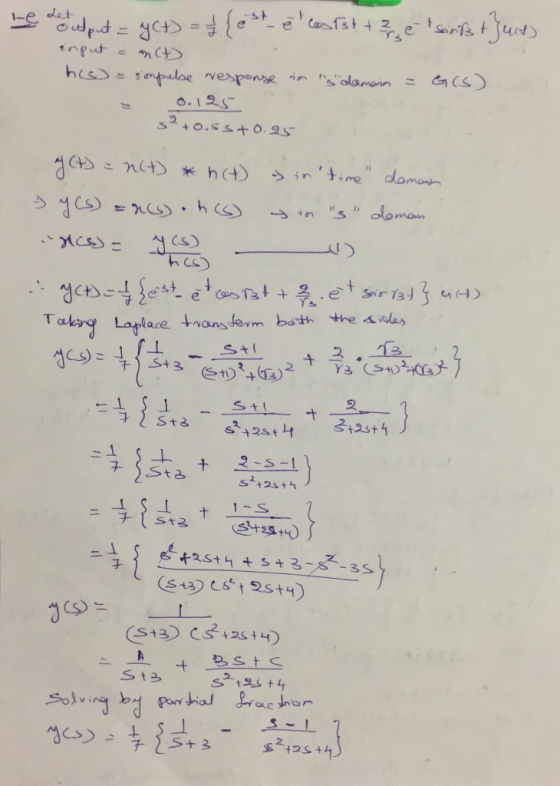

  1. So.ss+O. 2S →in S lace +ansferm both tres, was eL チ) St3 St S3 +2 らーナー -t St2

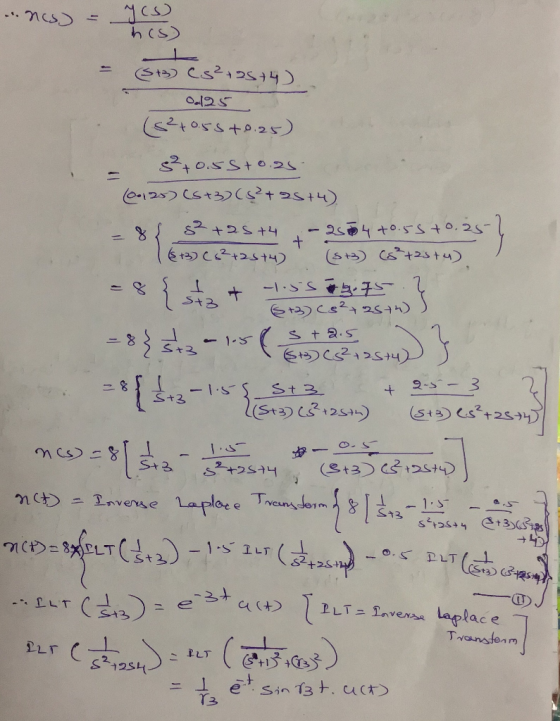

  2. Cso St2 S+2 82+2s+ S+2

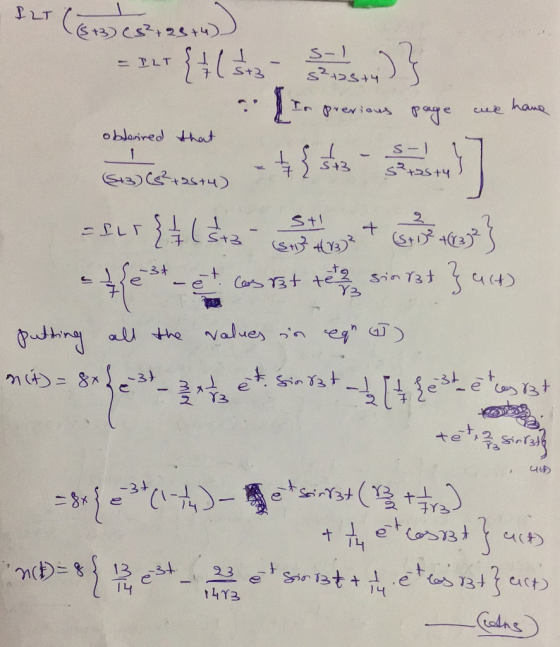

LT​​​​​​​

Add a comment
Know the answer?
Add Answer to:
0.12S [10 marks] 1(e) Determine the input to the system when the output of the system is [10 marks] 1(f) It is required to adjust the gain and the feedback of the states in the companion form state-...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
