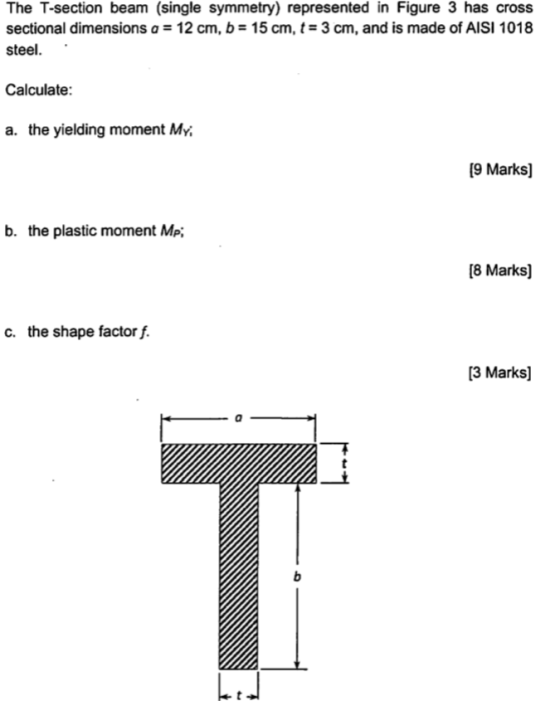

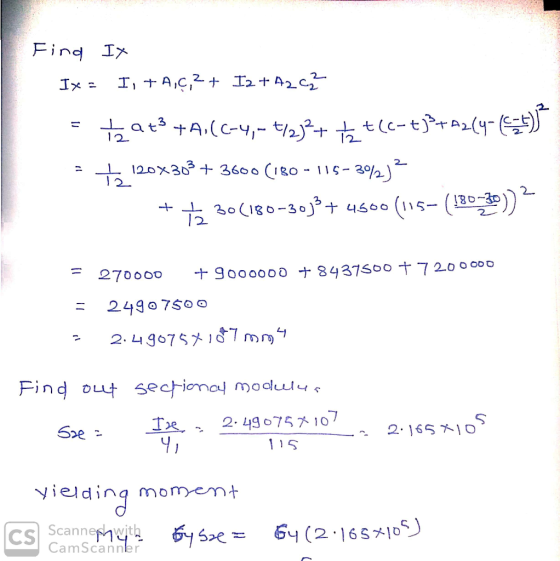

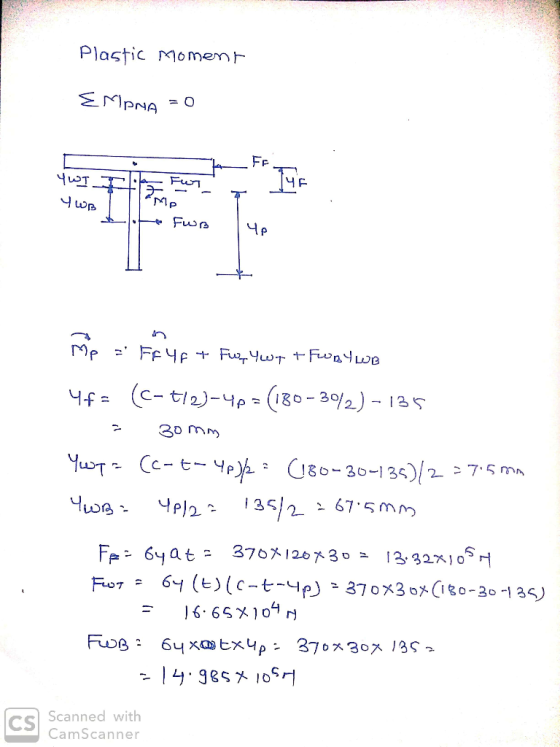

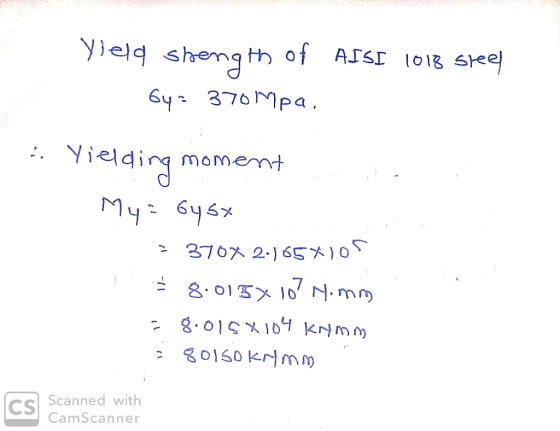

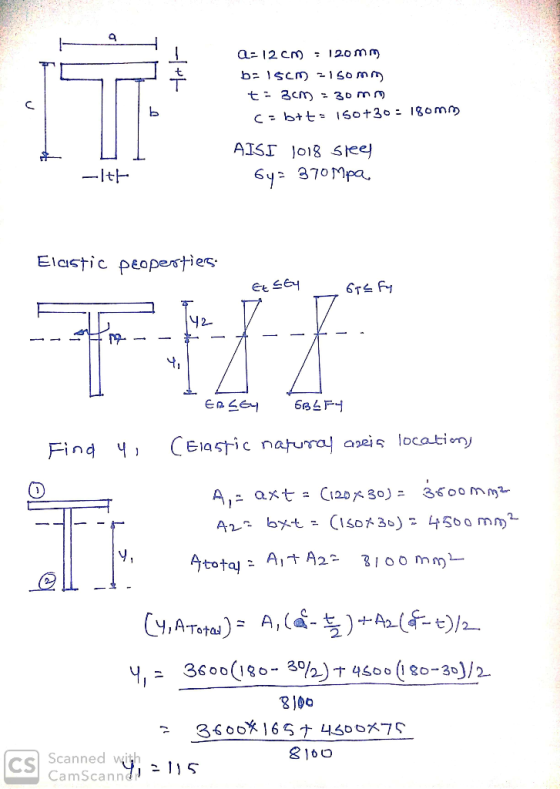

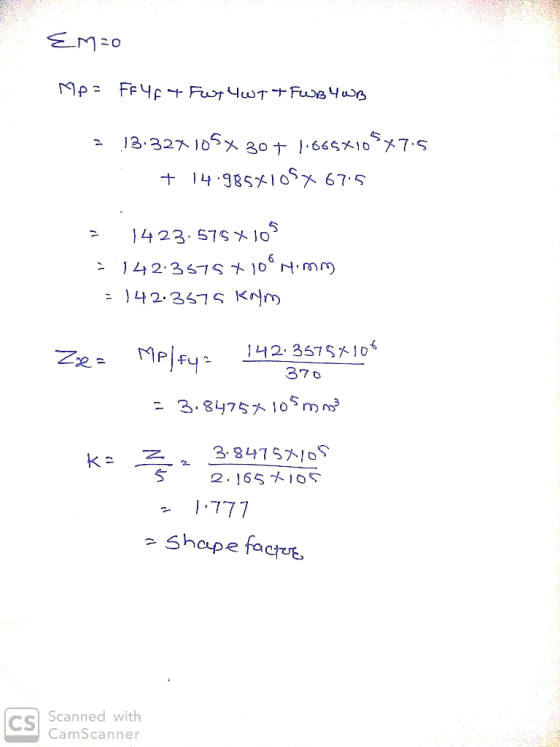

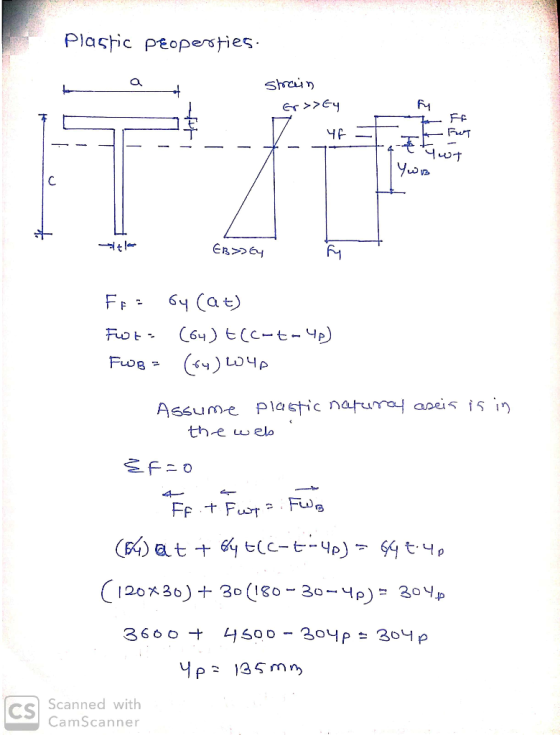

The T-section beam (single symmetry) represented in Figure 3 has cross sectional dimensions a-12 cm, b 1 5 cm. t# 3 cm, and is made of AISI 1018 steel.' Calculate: a. the yielding moment Mv 19 Ma...
A beam with cross-section as shown in Figure 2(a) is made of an elasto-plastic material. The...
A beam with cross-section as shown in Figure 2(a) is made of an
elasto-plastic material. The stressstrain relationship of the
material is as shown in Figure 2(b): (a) A bending moment is
applied to this section and increased until the entire top flange
yielded. Calculate the magnitude of the moment at this stage of
loading. (b) Determine the yield moment of the beam (c) Determine
the ultimate moment capacity of the beam (d) Determine the shape
factor of the beam...
Question 3 The H-beam is made of an elastic-plastic material for which g-250 MPa. Determine the shape factor for the cross section of the H-beam. Also, determine the residual stresses in the top and...
Question 3 The H-beam is made of an elastic-plastic material for which g-250 MPa. Determine the shape factor for the cross section of the H-beam. Also, determine the residual stresses in the top and bottom of the beam after the plastic moment Mp is applied and then released. 200 mm Mp20 mm 20 mm 0 m 200 mm 20 mm
Question 3 The H-beam is made of an elastic-plastic material for which g-250 MPa. Determine the shape factor for the...
The H-beam is made of an elastic-plastic material for which σy = 400 MPa. Find the plastic moment...
The H-beam is made of an elastic-plastic material for which σy =
400 MPa. Find the plastic moment Mp and the maximum elastic moment
Me and determine the shape factor for the cross section of the
H-beam. Also, determine the residual stresses in the top and bottom
of the beam after the plastic moment MP is applied and then
released.
Question 4 a The H-beam is made of an elastic-plastic material for which oy 400 MPa. Find the plastic moment...
P8.008 The dimensions of the double-box beam cross section shown in the figure are b =...
P8.008 The dimensions of the double-box beam cross section shown in the figure are b = 190 mm, d = 65 mm, and t = 3 mm. If the maximum allowable bending stress is 19 MPa, determine the maximum internal bending moment Mz magnitude that can be applied to the beam. Answer: Mz = N-m
The cross-sectional dimensions of the beam shown in the figure are a = 4.2 in., b = 4.7 in., d = 4.2 in., and t = 0.31 in. The internal bending moment about the z centroidal axis is Mz = -3.60 kip-ft....
The cross-sectional dimensions
of the beam shown in the figure are a = 4.2 in., b = 4.7 in., d =
4.2 in., and t = 0.31 in. The internal bending moment about the z
centroidal axis is Mz = -3.60 kip-ft. Determine (a) the maximum
tension bending stress (a positive number) in the beam. (b) the
maximum compression bending stress (a negative number) in the beam.
Answers: (a) σmax T = psi (b) σmax C = psi
P8.012 The...
The beam of building structure (Fig. 3a) is made of mild steel I-section beam with 80mm...
The beam of building structure (Fig. 3a) is made of mild steel I-section beam with 80mm deep and 60mm wide as shown in Fig. 36. The beam is bolted (simply supported) onto the girder on both side over a span of 1.0 m. The loading from deck is expected to transfer onto the beam as the form of uniform distributed load, w. The material is to be treated as elastic-perfectly plastic, with yield strength of 240 MPa, and elasticity modulus...
(a) The H-beam is made of an elastic-plastic material for which σy = 400 MPa. Find the plastic mo...
(a) The H-beam is made of an elastic-plastic material for which
σy = 400 MPa. Find the plastic moment Mp and the maximum elastic
moment Me and determine the shape factor for the cross section of
the H-beam. Also, determine the residual stresses in the top and
bottom of the beam after the plastic moment MP is applied and then
released.
(b) The continuous beam shown in Figure is made of the same
cross section as in part a and...
Question 3 For the simply supported steel beam with cross section and loading shown (see Figure...
Question 3 For the simply supported steel beam with cross section and loading shown (see Figure 3a), knowing that uniformly distributed load w=60 kN/m, Young modulus E = 200 GPa, and yield stress Cyield=200 MPa (in both tension and compression). ул 15 mm w=60 kN/m ... 1 B A 15 mm + 300 mm IC - i 2.5m 1 1 15 mm 7.5m 1 150 mm Figure 3a (a) Check if: the beam is safe with respect to yielding (using...
A beam with cross-section as shown in Figure 2(a) is made of an
elasto-plastic material. The stressstrain relationship of the
material is as shown in Figure 2(b): (a) A bending moment is
applied to this section and increased until the entire top flange
yielded. Calculate the magnitude of the moment at this stage of
loading. (b) Determine the yield moment of the beam (c) Determine
the ultimate moment capacity of the beam (d) Determine the shape
factor of the beam...
Question 3 The H-beam is made of an elastic-plastic material for which g-250 MPa. Determine the shape factor for the cross section of the H-beam. Also, determine the residual stresses in the top and bottom of the beam after the plastic moment Mp is applied and then released. 200 mm Mp20 mm 20 mm 0 m 200 mm 20 mm
Question 3 The H-beam is made of an elastic-plastic material for which g-250 MPa. Determine the shape factor for the...
The H-beam is made of an elastic-plastic material for which σy =
400 MPa. Find the plastic moment Mp and the maximum elastic moment
Me and determine the shape factor for the cross section of the
H-beam. Also, determine the residual stresses in the top and bottom
of the beam after the plastic moment MP is applied and then
released.
Question 4 a The H-beam is made of an elastic-plastic material for which oy 400 MPa. Find the plastic moment...
P8.008 The dimensions of the double-box beam cross section shown in the figure are b = 190 mm, d = 65 mm, and t = 3 mm. If the maximum allowable bending stress is 19 MPa, determine the maximum internal bending moment Mz magnitude that can be applied to the beam. Answer: Mz = N-m
The cross-sectional dimensions
of the beam shown in the figure are a = 4.2 in., b = 4.7 in., d =
4.2 in., and t = 0.31 in. The internal bending moment about the z
centroidal axis is Mz = -3.60 kip-ft. Determine (a) the maximum
tension bending stress (a positive number) in the beam. (b) the
maximum compression bending stress (a negative number) in the beam.
Answers: (a) σmax T = psi (b) σmax C = psi
P8.012 The...
The beam of building structure (Fig. 3a) is made of mild steel I-section beam with 80mm deep and 60mm wide as shown in Fig. 36. The beam is bolted (simply supported) onto the girder on both side over a span of 1.0 m. The loading from deck is expected to transfer onto the beam as the form of uniform distributed load, w. The material is to be treated as elastic-perfectly plastic, with yield strength of 240 MPa, and elasticity modulus...
(a) The H-beam is made of an elastic-plastic material for which
σy = 400 MPa. Find the plastic moment Mp and the maximum elastic
moment Me and determine the shape factor for the cross section of
the H-beam. Also, determine the residual stresses in the top and
bottom of the beam after the plastic moment MP is applied and then
released.
(b) The continuous beam shown in Figure is made of the same
cross section as in part a and...
Question 3 For the simply supported steel beam with cross section and loading shown (see Figure 3a), knowing that uniformly distributed load w=60 kN/m, Young modulus E = 200 GPa, and yield stress Cyield=200 MPa (in both tension and compression). ул 15 mm w=60 kN/m ... 1 B A 15 mm + 300 mm IC - i 2.5m 1 1 15 mm 7.5m 1 150 mm Figure 3a (a) Check if: the beam is safe with respect to yielding (using...
