Evaluate the differential input resistance (in kOhms) for a BJT differential amplifier with emitter degeneration resistors of

0 0
Add a comment Improve this question Transcribed image text

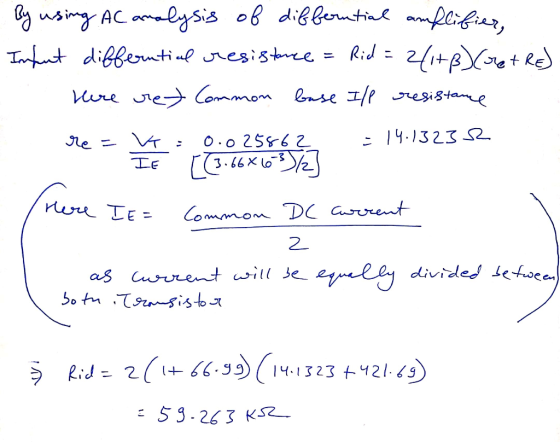

Answer #1

usi LE 2 divided LeAoee

Add a comment
Know the answer?
Add Answer to:

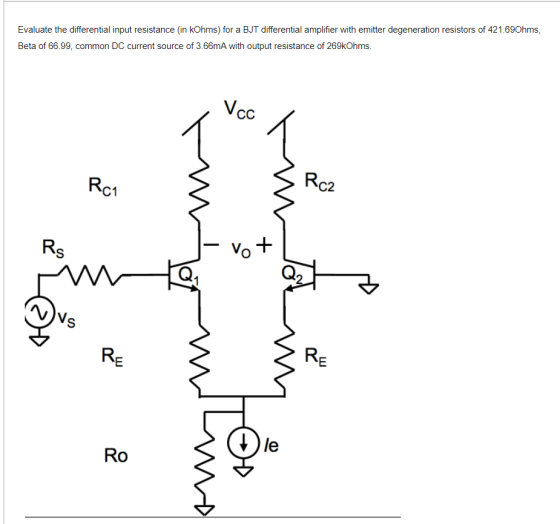

Evaluate the differential input resistance (in kOhms) for a BJT differential amplifier with emitter degeneration resistors of 421.69Ohms, Beta of 66.99, common DC current source of 3.66mA with output...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • Can u answer these questions with explanation!! Evaluate the differential input resistance (in kOhms) for a BJT differential amplifier with emitter degeneration resistors of 328.70hms, Beta of...

    Can u answer these questions with explanation!! Evaluate the differential input resistance (in kOhms) for a BJT differential amplifier with emitter degeneration resistors of 328.70hms, Beta of 31.63, common DC current source of 1.75mA with output resistance of 475kOhms. C2 C1 le Ro Find the common mode rejection ratio for a MOSFET differential pair with randomly selected 4kOhm E12 resistors as the drain load biased by a current source of 5mA with output impedance of 44kOhm. W/L= 8 and μ.cox-4mA/V...

  • A common-emitter BJT amplificr is shown in Fig.8.1. Note the DC biasing values and the BJTsmall-s...

    A common-emitter BJT amplificr is shown in Fig.8.1. Note the DC biasing values and the BJTsmall-signalmodel parameters from the class-signment #9 on DC Bia ing. Neglect the value of Rs in your calculations, k1 Rs-a k2: 1· Cal ulatethesmall-agalpannetas ofthe amplifi randcompletethecalculated valuesinTable8-1 Smalls-signal voltage gai, AVk Small-signal input resistance,k, Small-signaloutput resistance, Ro VW RC 2k C2 RB 570k Rs C1 1 10uP 0.1m 1 Vs CE RE 2k SINE(0 1mV 1kHz 0 0 00) tran 0 2ms 0 1us...

  • 2) Design a BJT differential amplifier to amplify a differential input signal of 0.2 V and...

    2) Design a BJT differential amplifier to amplify a differential input signal of 0.2 V and provide a differential output signal of 4 V. To ensure adequate linearity, it is required to limit the signal amplitude across each base-emitter junction to a maximum of 5 mV, note this means emitter resistors. Another design requirement is that the differential input resistance be at least 80 k22. The BJTs available are specified to have ß > 200. Give the circuit configuration and...

  • Shown below is a single stage common emitter amplifier with a unipolar dc power supply using an 2...

    Shown below is a single stage common emitter amplifier with a unipolar dc power supply using an 2N3904 NPN BJT as the active device. It is specified that V+ 40 V, C1 C2CE 100uF, Ro-7.5 k2, REi-5.1kS2, and Ri - 36k52. Design the circuit so that the dc collector current is 2 mA and the magnitude of the small-signal midband voltage gain is 32.3. For the design calculations assume that the base-to- emitter dc voltage drop is 0.65 V, the...

  • Draw the circuit of a common source amplifier, which is biased by a MOSFET current mirror,...

    Draw the circuit of a common source amplifier, which is biased by a MOSFET current mirror, and which uses only one capacitor and two resistors (including the RREF of the current mirror). Assume that the input to the amplifier is a zero-DC signal. Then, design the amplifier to achieve a gain Avo--gRo =-4V/V, and an output resistance Ro-Ro-1K. Ignore channel modulation. Assume that all MOSFETS are identical with VIN-1V, and Kn = 2mA/V. Use Vo = 5V and Vs =-5V....

  • 2.34. Consider the common-emitter amplifier on the right. (a)Draw a small-signal equivalent circuit using the T-model without the B1 Cci output resistance (b)Find an expression for the input resistan...

    2.34. Consider the common-emitter amplifier on the right. (a)Draw a small-signal equivalent circuit using the T-model without the B1 Cci output resistance (b)Find an expression for the input resistance Rin. (c)Find an expression for the output resistance Ro. (d) Find an expression for the lower cut-off frequency Vi Re sig 82 C, (RE-R) in associated with Cci. (d)Find expressions for the two gains vo/v, and v/Vsig CI. 2.34. Consider the common-emitter amplifier on the right. (a)Draw a small-signal equivalent circuit...

  • it is ECE 345 course A. Look through the sections on various BJT voltage amplifier configurations...

    it is ECE 345 course A. Look through the sections on various BJT voltage amplifier configurations in Chapter 5 of your textbook and write down the final expressions (do not show the derivations) for Av, Rn, and Rout for the following topologies (you may want to save a copy of these formulae for future reference). common emitter (CE) (1) simple CE (ignore ro) (2) CE with RE (ignore ro) (3) CE with Rg and Ra (ignore ro) (4) CE with...

  • 1. Consider the Common-Emitter BJT amplifier circuit, shown below. VD VOD BJT Parameters: B=99 A/A i=0...

    1. Consider the Common-Emitter BJT amplifier circuit, shown below. VD VOD BJT Parameters: B=99 A/A i=0 RE Co Circuit Parameters: Ca Cc2 = 0 F Car = OF R = 2022 R = 2002 R1 = 25.8 k22 Ry2 = 51.6 ks V = 15 V VEE=0 V Сct Active Mode: Va >0.2 V Vwx=0.7V Ic=B1, Ic=al, 1 R2 3 SRCA a) Find the open-circuit voltage gain, Ave, of this amplifier circuit. Verify your assumptions. b) Compute the input resistance,...

  • FIND THE VALUES OF Rb1, Rb2, Re,Rc, rin , rout, overall gain and open circuit gain First, design a common emitter BJT a...

    FIND THE VALUES OF Rb1, Rb2, Re,Rc, rin , rout, overall gain and open circuit gain First, design a common emitter BJT amplifier Second, analyze the amplifier.( Avo, Gv, Rin, Rout) Third, compare your calculation with Multisim. Report must include comparison between your calculation & simulation results overall voltage gain, open circuit voltage gain, input resistance, and output resistance. This design project is not group work, must be done individually. Type your report. Design a discrete common emitter BJT amplifier.(Determine...

  • Part a and b Design a BJT differential amplifier to provide an output voltage of Vod-0.5...

    Part a and b Design a BJT differential amplifier to provide an output voltage of Vod-0.5 V when the input differential voltage Vid-5 mV. Assume ?-100 and use a current source of mA and Vcc-5 V. Design the amplifier circuit assuming that the transistor currents are equal Design the amplifier circuit without making the assumption of part a. Model your BJT differential amplifier design using LTspice and verify the bias point and gain of the amplifier. Use an ideal current...
