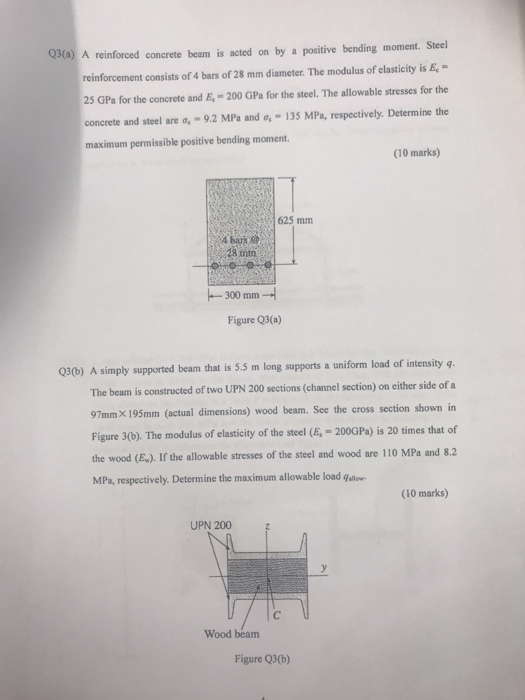

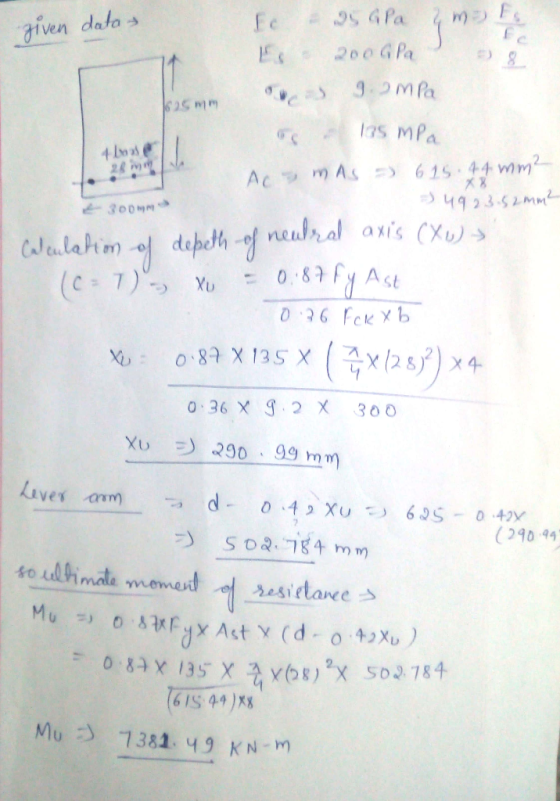

03(a) A reinforced concrete beam is acted on by a positive bending moment. reinforcement consists of 4 bars of 28 mm diameter. The modulus of elasticity is E 25 GPa for the concrete and E-200 G...
Problem 2 A reinforced concrete beam (see fig.) is acted on by a positive bending moment...
Problem 2 A reinforced concrete beam (see fig.) is acted on by a positive bending moment of M - 160 kNm. Steel reinforcement consists of 4 bars of 28-mm diameter. The modulus of elasticity for the concrete is E = 25 GPa while that of the steel is E, = 200 GPa. (a) Find the maximum stresses in steel and concrete. (b) If allowable stresses for concrete and steel are = 9.2 MPa and 0 -135 MPa, respectively, what is...
131 The concrete beam is reinforced with three 20-mm- diameter steel rods. Assume that the concrete...
131 The concrete beam is reinforced with three 20-mm- diameter steel rods. Assume that the concrete cannot support tensile stress. If the allowable compressive stress for concrete is (allown2.5 MPa and the allowable tensile stress for steel is (?allow)st-220 MPa, determine the required dimension d so that both the concrete and steel achieve their allowable stress simultaneously. This condition is said to be 'balanced'. Also, compute the corresponding maximum allowable internal moment M that can be applied to the beam....
1. Reinforced Rectangular Concrete Beam The reinforced concrete beam shown is subjected to a bending moment...
1. Reinforced Rectangular Concrete Beam The reinforced concrete beam shown is subjected to a bending moment of 200 kip ft. Knowing that the modulus of elasticity for the concrete and the steel are respectively Ec= 3.75 X 10 psi and Es = 30 x 10 psi, determine the tensile stress in [ksh] that develops in the steel bars. 20 in 1 in diameter 72.5 in 12 in-
Question 2 (30 marks) The wood beam below (cross section dimensions 150 x 250 mm, as...
Question 2 (30 marks) The wood beam below (cross section dimensions 150 x 250 mm, as indicated) is strengthened at the bottom using 3 steel reinforcement plates of the same 12mm thickness (see figure), perfectly glued to the wooden beam. The modulus of elasticity for wood is E,-12 GPa and for steel E,-200 GPa. Given the allowable stresses (in both tension and compression) for wood ơw-12 MPa and for steel Ơs = 150 MPa, determine the largest possible moment due...
The built-up beam is made of steel as shown in Figure 1. Knowing that modulus of...
The built-up beam is made of steel as shown in Figure 1. Knowing that modulus of elasticity for the steel is E = 200 GPa 150 mm 20 mm 150 mm 150 mm 10 mm M '10 mm 300 mm А Figure 1 (1) If the allowable tensile and compressive stress for the beam are allow tension = 140 MPa and o = 210 MPa. allow compression respectively, determine the maximum allowable internal moment M that can be applied Determine...
Figure 2a shows a composite beam made by placing three steel plates inside a wooden section....
Figure 2a shows a composite beam made by placing three
steel plates inside a wooden
section.
(a) Determine the maximum bending stress developed in the wooden
section and steel plate
if the beam is subjected to allowable bending moment, M of 20 kN.m.
Given that the
Modulus of Elasticity of wood is 13.1 GPa and steel is 200
GPa.
[14 Marks]
Figure 2a: Composite beam
(b) Figure 2b shows another beam without steel plates. Suggest the
maximum bending
stress for...
A wood beam (1) is reinforced on its lower surface by a steel plate (2) as...
A wood beam (1) is reinforced on its lower surface by a steel
plate (2) as shown in the figure. Dimensions of the cross section
are b 1 = 220 mm , d = 385 mm , b 2 = 190 mm , and t = 25 mm . The
elastic moduli of the wood and steel are E 1 = 12.5 GPa and E 2 =
200 GPa , respectively. The allowable bending stresses of the wood
and steel...
A simply supported composite beam 3 m long carries a uniformly distributed load of intensity q= 30 kN/m (see figure)
A simply supported composite beam 3 m long carries a uniformly distributed load of intensity q= 30 kN/m (see figure). The beam is constructed of a wood member, 100 mm wide by 150 mm deep, and is reinforced on its lower side by a steel plate 8 mm thick and 100 mm wide. (a) Find the maximum bending stresses σw and σs, in the wood and steel, respectively, due to the uniform load if the moduli of elasticity are Ew =...
no. 4 The bending moment of a beam (A) depends on the modulus of elasticity of...
no. 4
The bending moment of a beam (A) depends on the modulus of elasticity of the beam (B) is minimum where the shear is zero (C) is maximum at the free end of a cantilever (D) is plotted as a straight line for a simple beam with a uniformly distributed load (E) may be determined from the area of the shear diagram The offset method is used to find a property of metals that do not have a well-defined...
2. A rectangular beam, 400 x 600 mm gross dimension, is cast using a concrete strength...
2. A rectangular beam, 400 x 600 mm gross dimension, is cast using a concrete strength of fc 30 MPa, reinforced with 5-25 mm diameter steel bar at the effective depth of 500 mm. If is subjected to a moment, M 130 kN-m. Determine the following: Magnitude of the bending moment that cracks the singly-reinforced beam section. (10 pts) b. For the computed cracking moment, determine the maximum compressive stress in the concrete and the stress in the tension steel....
Problem 2 A reinforced concrete beam (see fig.) is acted on by a positive bending moment of M - 160 kNm. Steel reinforcement consists of 4 bars of 28-mm diameter. The modulus of elasticity for the concrete is E = 25 GPa while that of the steel is E, = 200 GPa. (a) Find the maximum stresses in steel and concrete. (b) If allowable stresses for concrete and steel are = 9.2 MPa and 0 -135 MPa, respectively, what is...
131 The concrete beam is reinforced with three 20-mm- diameter steel rods. Assume that the concrete cannot support tensile stress. If the allowable compressive stress for concrete is (allown2.5 MPa and the allowable tensile stress for steel is (?allow)st-220 MPa, determine the required dimension d so that both the concrete and steel achieve their allowable stress simultaneously. This condition is said to be 'balanced'. Also, compute the corresponding maximum allowable internal moment M that can be applied to the beam....
1. Reinforced Rectangular Concrete Beam The reinforced concrete beam shown is subjected to a bending moment of 200 kip ft. Knowing that the modulus of elasticity for the concrete and the steel are respectively Ec= 3.75 X 10 psi and Es = 30 x 10 psi, determine the tensile stress in [ksh] that develops in the steel bars. 20 in 1 in diameter 72.5 in 12 in-
Question 2 (30 marks) The wood beam below (cross section dimensions 150 x 250 mm, as indicated) is strengthened at the bottom using 3 steel reinforcement plates of the same 12mm thickness (see figure), perfectly glued to the wooden beam. The modulus of elasticity for wood is E,-12 GPa and for steel E,-200 GPa. Given the allowable stresses (in both tension and compression) for wood ơw-12 MPa and for steel Ơs = 150 MPa, determine the largest possible moment due...
The built-up beam is made of steel as shown in Figure 1. Knowing that modulus of elasticity for the steel is E = 200 GPa 150 mm 20 mm 150 mm 150 mm 10 mm M '10 mm 300 mm А Figure 1 (1) If the allowable tensile and compressive stress for the beam are allow tension = 140 MPa and o = 210 MPa. allow compression respectively, determine the maximum allowable internal moment M that can be applied Determine...
Figure 2a shows a composite beam made by placing three
steel plates inside a wooden
section.
(a) Determine the maximum bending stress developed in the wooden
section and steel plate
if the beam is subjected to allowable bending moment, M of 20 kN.m.
Given that the
Modulus of Elasticity of wood is 13.1 GPa and steel is 200
GPa.
[14 Marks]
Figure 2a: Composite beam
(b) Figure 2b shows another beam without steel plates. Suggest the
maximum bending
stress for...
A wood beam (1) is reinforced on its lower surface by a steel
plate (2) as shown in the figure. Dimensions of the cross section
are b 1 = 220 mm , d = 385 mm , b 2 = 190 mm , and t = 25 mm . The
elastic moduli of the wood and steel are E 1 = 12.5 GPa and E 2 =
200 GPa , respectively. The allowable bending stresses of the wood
and steel...
no. 4
The bending moment of a beam (A) depends on the modulus of elasticity of the beam (B) is minimum where the shear is zero (C) is maximum at the free end of a cantilever (D) is plotted as a straight line for a simple beam with a uniformly distributed load (E) may be determined from the area of the shear diagram The offset method is used to find a property of metals that do not have a well-defined...
2. A rectangular beam, 400 x 600 mm gross dimension, is cast using a concrete strength of fc 30 MPa, reinforced with 5-25 mm diameter steel bar at the effective depth of 500 mm. If is subjected to a moment, M 130 kN-m. Determine the following: Magnitude of the bending moment that cracks the singly-reinforced beam section. (10 pts) b. For the computed cracking moment, determine the maximum compressive stress in the concrete and the stress in the tension steel....
