A mixture having a molar analysis of 60% N2 and 40% CO2 enters an insulated compressor operating at steady state at 1 bar, 30°C with a mass flow rate of 1 kg/s and is compressed to 3 bar, 157°C. Neg...
A mixture having a molar analysis of 60% N2 and 40%
CO2 enters an insulated compressor operating at steady
state at 1 bar, 30°C with a mass flow rate of 1 kg/s and is
compressed to 3 bar, 157°C.
Neglecting kinetic and potential energy effects, determine:
(a) the magnitude of the power required, in kW.

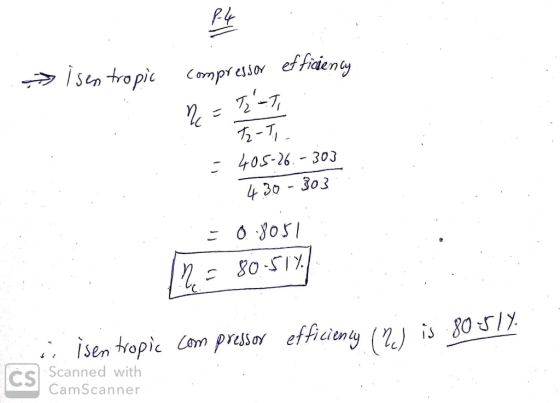

(b) the isentropic compressor efficiency, in percent.

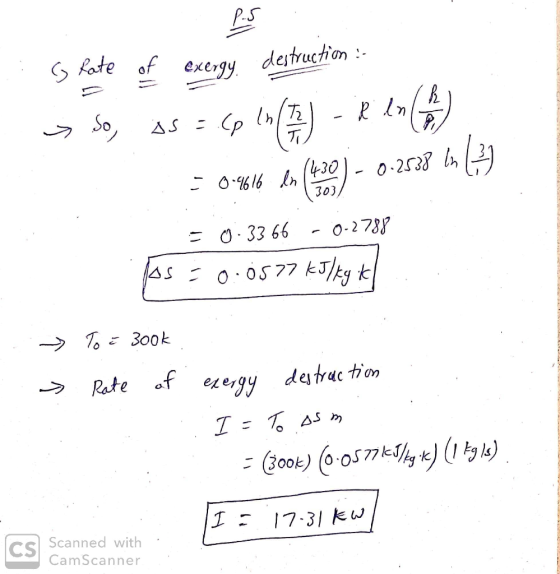

(c) the rate of exergy destruction, in kW, for
T0 = 300 K.
Homework Answers
