Question

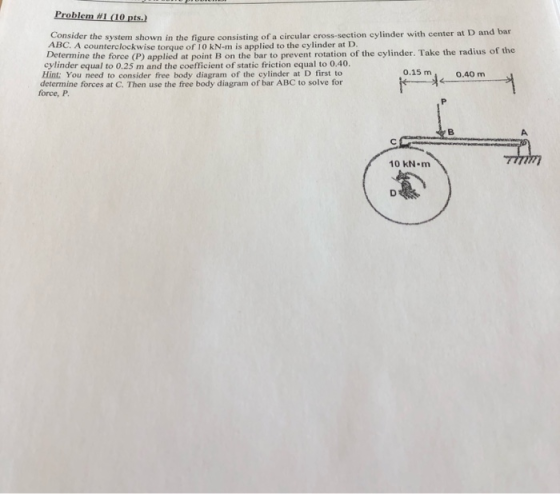

Problem #1(10pts) Consider the system shown in the figure consisting of a circular cross section eylinder with center ABC. A counterclockwise torque of 10 kN-m is applied to the cylinder at D Determine the force (P) applied at point B on the bar to prevent rot cylinder equal to 0.25 m and the coefficient of static friction equal to 0.40 ation of the cylinder. Take the radius of the 0.15 m , Hint: You need to consider free body diagram of the cylinder at D first to 0.40 m determine forces at C. Then use the free body diagram of bar ABC to solve for force, P 10 kN-m

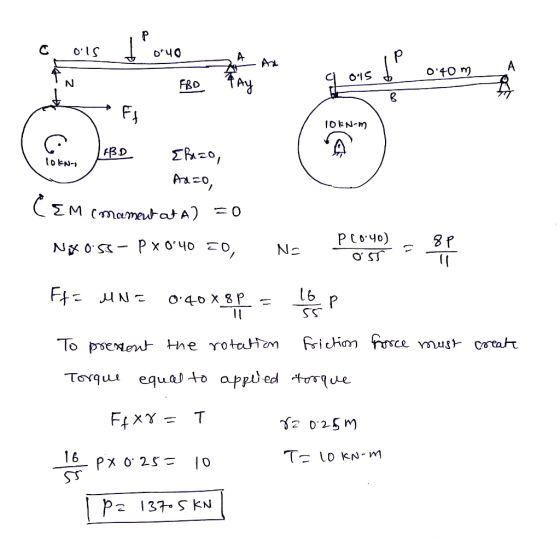

Answer 1
