draww fbdHomework Answers

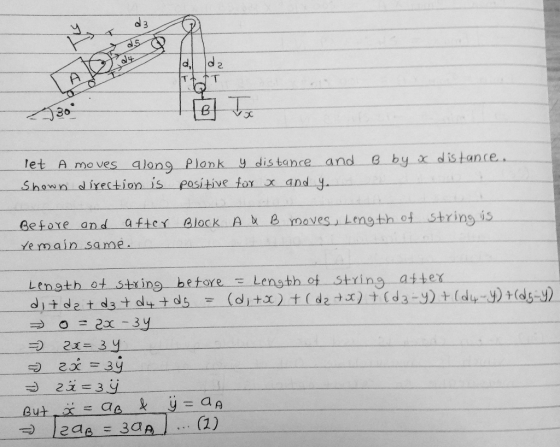

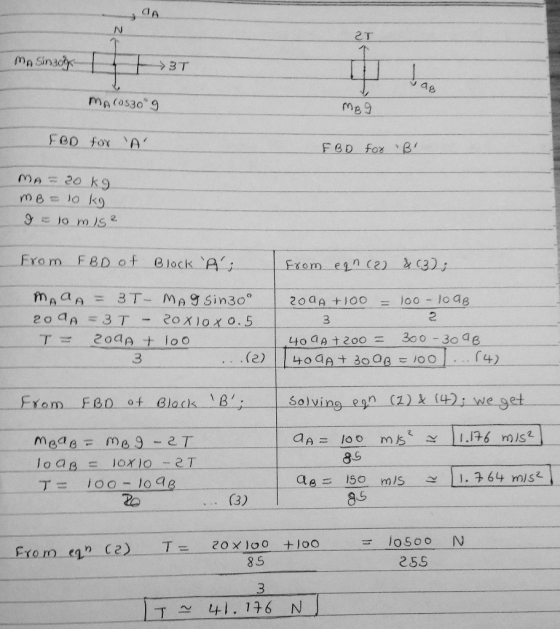

a_A=1.176 m/s^2 (uphill)
a_B=1.764 m/s^2 (down)
T=41.176 N
Add Answer to:

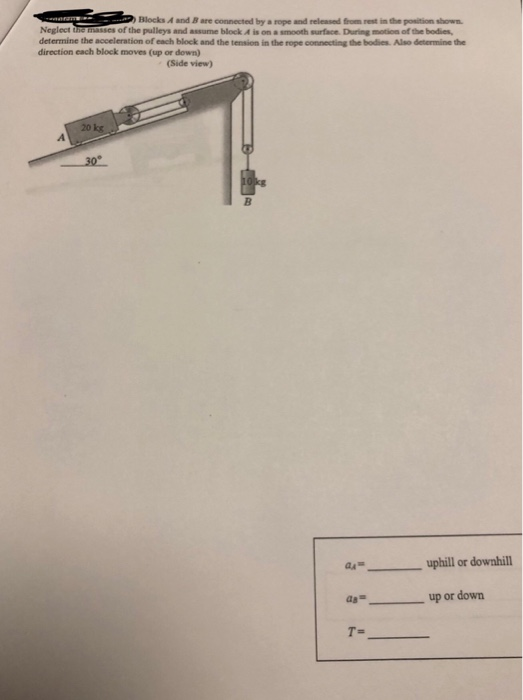

draww fbd Blocks A and B are connected by a rope and relessed from rest in the position shown Neglect the masses of the pulleys and assume block A is on a smooth surface. During motion of the bodi...
The two blocks shown are originally at rest. Neglecting thè masses of the pulleys and the...
The two blocks shown are originally at rest. Neglecting thè masses of the pulleys and the effect of friction in the pulleys and between the blocks and the inclines, determine (a) the acceleration of each block, (b) the tension in the cable. 200 lb 90° 20° 300 lb
12.13 The two blocks shown we originally at rest Neglecting the masses of the pulleys and...
12.13 The two blocks shown we originally at rest Neglecting the masses of the pulleys and the effect of friction in the pulleys and between the blocks and the incline, determine (a) the corleon of each block, (b) the tension in the cable
Two blocks connected by a rope are pulled by a 100 N force as shown. Neglect...
Two blocks connected by a rope are pulled by a 100 N force as shown. Neglect the mass of the rope. Neglect friction. Find the tension in the rope ____ N the magnitude of the acceleration of the two masses ____ m/s^2
Consider the system of connected masses and pulleys shown in the figure. The system is released...
Consider the system of connected masses and pulleys shown in the figure. The system is released from rest with the cable is rigid and under tension. The friction coefficients for the 60 kg mass are us = 0.25 and up = 0.20. Determine the acceleration of each body and tension T in the cable. Neglect the mass and friction of the pulleys. 60kB Moot 20 kg 30°
Two blocks are connected by a rope, as shown above. The masses of the blocks are 5 kg for the upper block and 10 kg for the lower block
Two blocks are connected by a rope, as shown above. The masses of the blocks are 5 kg for the upper block and 10 kg for the lower block. An upward applied force of magnitude Facts on the upper block. If the net acceleration is downward but has a magnitude less than g, then which has the larger magnitude, the force For the tension in the rope?The tension in the rope Force F Neither. They have equal but nonzero magnitudes. Neither. They have equal...
2. Two blocks of mass mA 40 kg and m-35 kg are initially at rest. Neglecting...
2. Two blocks of mass mA 40 kg and m-35 kg are initially at rest. Neglecting the masses of the pulleys and the effeet of friction in the pulleys, and given coefficients of friction between block A and the horizontal surface are As -0.25 and 0.15 determine, a) whether or not the blocks will move b) if motion is impending, find the acceleration of each block c) the tension in the cable
3. [8] The two blocks shown have masses of mı = 25 kg and m2 =...
3. [8] The two blocks shown have masses of mı = 25 kg and m2 = 20 kg. Neglect the masses of the pulleys and the effect of friction in the pulleys. The coefficients of friction between m, and the horizontal surface are us = 0.3 and p = 0.25. (a) [2 marks] Draw FBD and KD for each block. (b) [6 marks] Determine the acceleration of my and the tension in the cable. m
Given: Blocks A and B (having masses of 2m and m, respectively) are connected by rigid,...
Given: Blocks A and B (having masses of 2m and m, respectively) are connected by rigid, massless rod AB of length L. Block A is constrained to move along a smooth vertical guide, and B moves along a smooth, horizontal surface. The system is released from rest when A is at a height of hi ABOVE the path of B. Find: Determine the speed of block A when A has dropped to a position that is at a distance of...
You are told that a 5 kg block sits on a smooth surface, and is connected...
You are told that a 5 kg block
sits on a smooth surface, and is connected to a 15 kg and another 5
kg block as shown in Fig. 1. All pulleys and ropes are massless,
and additionally the ropes are inextensible.
(a) Draw neatly presented FBDs for each of the masses.
(b) Argue that the magnitude of acceleration a of all masses in
the system are the same, given the information in the problem.
Restrict your response to two...
Problem 3: Determine the acceleration of block B, acceleration of block A, and the tension in...
Problem 3: Determine the acceleration of block B, acceleration of block A, and the tension in the cable if the system is released from rest. The coefficient of static and kinetic friction between block A and the wedge surface are js = 0.2 and uk = 0.15, respectively. Neglect masses of the pulleys and associated friction in the pulleys. Consider ma = 15 kg and mp = 8 kg. FBDs and kinetic diagrams for blocks A and B is mandatory....
The two blocks shown are originally at rest. Neglecting thè masses of the pulleys and the effect of friction in the pulleys and between the blocks and the inclines, determine (a) the acceleration of each block, (b) the tension in the cable. 200 lb 90° 20° 300 lb
12.13 The two blocks shown we originally at rest Neglecting the masses of the pulleys and the effect of friction in the pulleys and between the blocks and the incline, determine (a) the corleon of each block, (b) the tension in the cable
Two blocks connected by a rope are pulled by a 100 N force as shown. Neglect the mass of the rope. Neglect friction. Find the tension in the rope ____ N the magnitude of the acceleration of the two masses ____ m/s^2
Consider the system of connected masses and pulleys shown in the figure. The system is released from rest with the cable is rigid and under tension. The friction coefficients for the 60 kg mass are us = 0.25 and up = 0.20. Determine the acceleration of each body and tension T in the cable. Neglect the mass and friction of the pulleys. 60kB Moot 20 kg 30°
2. Two blocks of mass mA 40 kg and m-35 kg are initially at rest. Neglecting the masses of the pulleys and the effeet of friction in the pulleys, and given coefficients of friction between block A and the horizontal surface are As -0.25 and 0.15 determine, a) whether or not the blocks will move b) if motion is impending, find the acceleration of each block c) the tension in the cable
3. [8] The two blocks shown have masses of mı = 25 kg and m2 = 20 kg. Neglect the masses of the pulleys and the effect of friction in the pulleys. The coefficients of friction between m, and the horizontal surface are us = 0.3 and p = 0.25. (a) [2 marks] Draw FBD and KD for each block. (b) [6 marks] Determine the acceleration of my and the tension in the cable. m
Given: Blocks A and B (having masses of 2m and m, respectively) are connected by rigid, massless rod AB of length L. Block A is constrained to move along a smooth vertical guide, and B moves along a smooth, horizontal surface. The system is released from rest when A is at a height of hi ABOVE the path of B. Find: Determine the speed of block A when A has dropped to a position that is at a distance of...
You are told that a 5 kg block
sits on a smooth surface, and is connected to a 15 kg and another 5
kg block as shown in Fig. 1. All pulleys and ropes are massless,
and additionally the ropes are inextensible.
(a) Draw neatly presented FBDs for each of the masses.
(b) Argue that the magnitude of acceleration a of all masses in
the system are the same, given the information in the problem.
Restrict your response to two...
Problem 3: Determine the acceleration of block B, acceleration of block A, and the tension in the cable if the system is released from rest. The coefficient of static and kinetic friction between block A and the wedge surface are js = 0.2 and uk = 0.15, respectively. Neglect masses of the pulleys and associated friction in the pulleys. Consider ma = 15 kg and mp = 8 kg. FBDs and kinetic diagrams for blocks A and B is mandatory....
