13. Use your knowledge of materials and their properties and the manufacturing techniques that we have covered to select a casting process that is best suited for the parts pictured below. Justi...

Question

Question

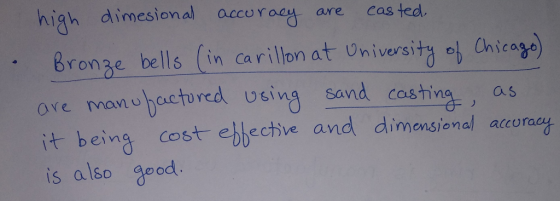

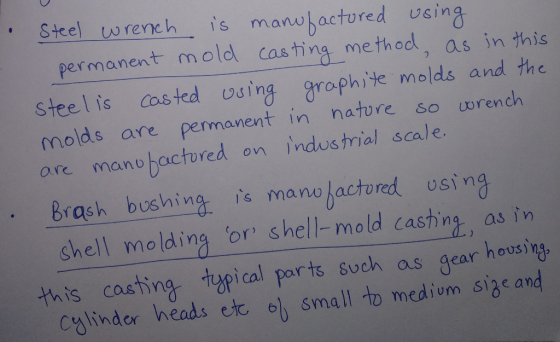

Steel wrench Brash bushing Bronze bells in carillon at University of Chicago 2.

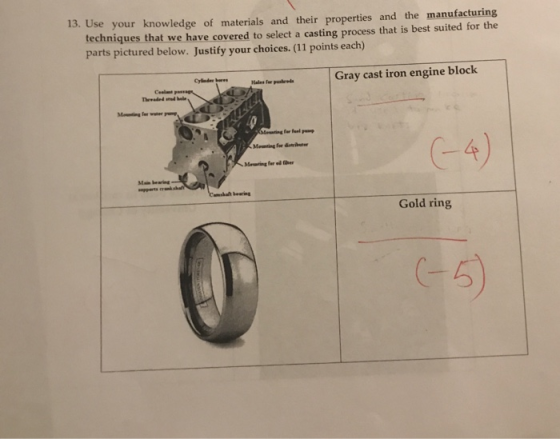

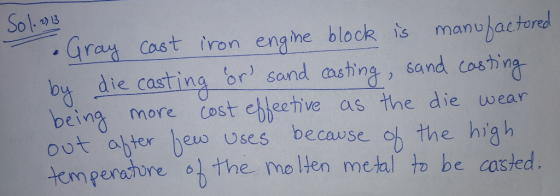

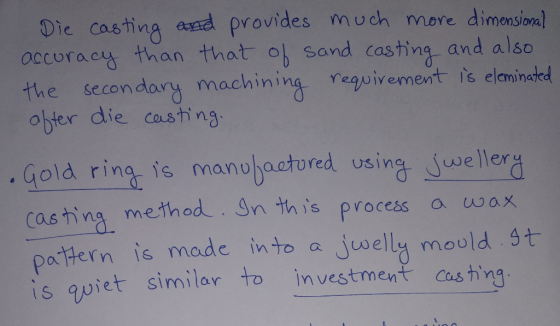

13. Use your knowledge of materials and their properties and the manufacturing techniques that we have covered to select a casting process that is best suited for the parts pictured below. Justify your choices. (11 points each) Gray cast iron engine block C-4) earing Gold ring

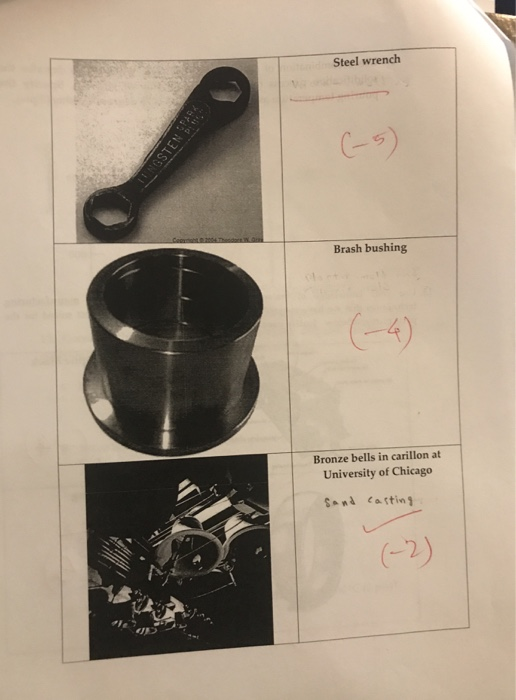

Steel wrench Brash bushing Bronze bells in carillon at University of Chicago 2.

engineering Civil-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

Add a comment

Answer 2
