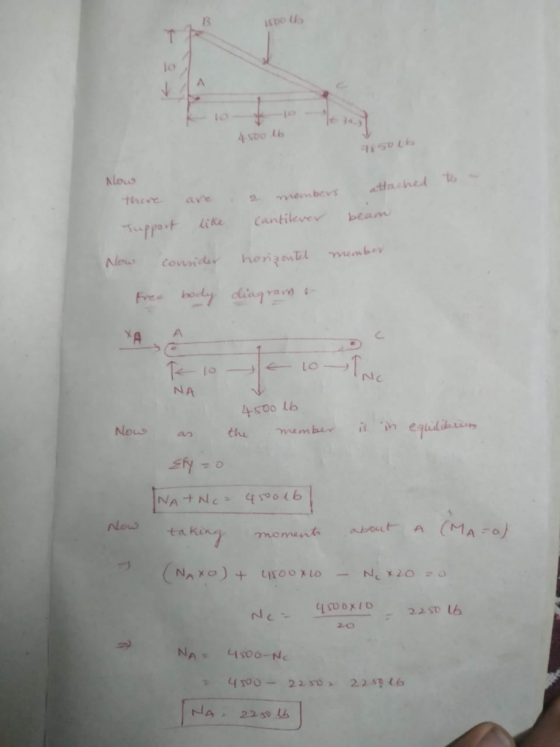

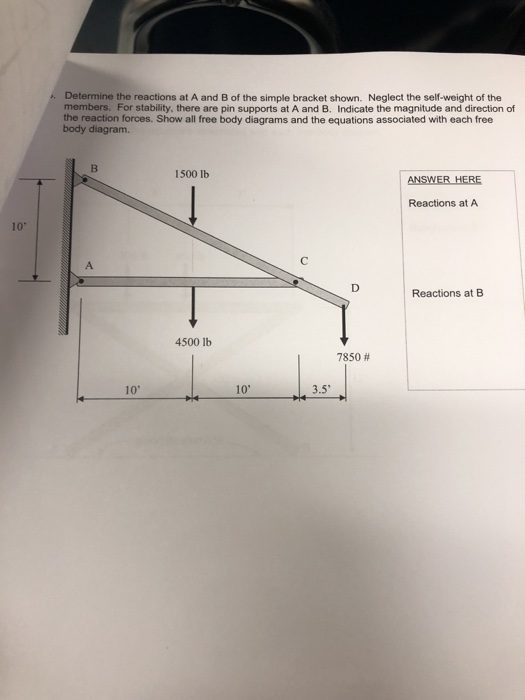

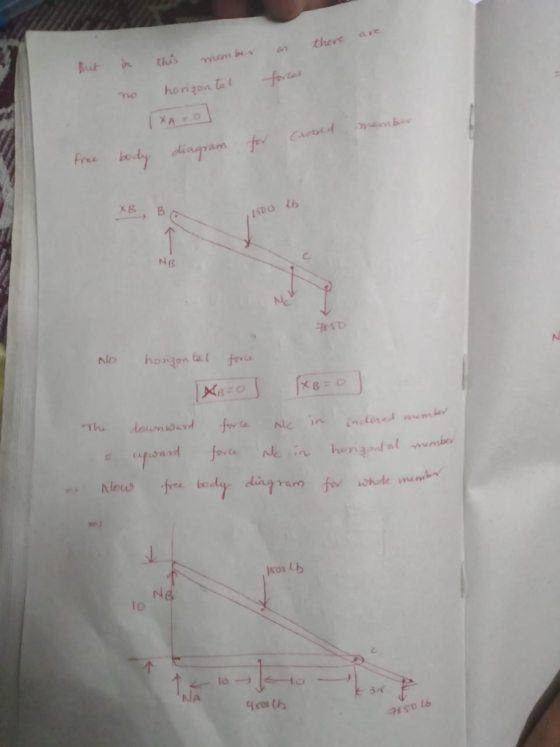

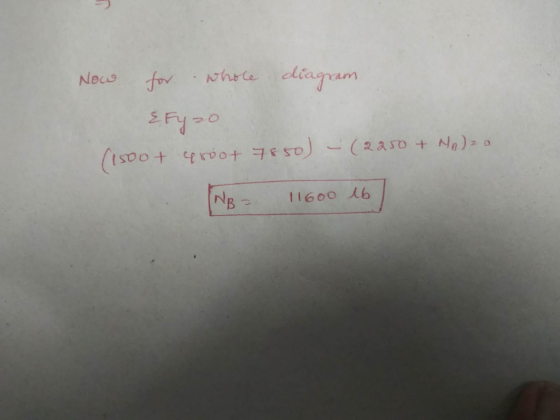

Determine the reactions at A and B of the simple bracket shown. Neglect the self-weight of the members. For stability, there are pin supports at A and B. Indicate the magnitude and direction of...
draw free body diagram, draw coordinate system, isolate object from its supports , add applied forces...
draw free body diagram, draw coordinate system,
isolate object from its supports , add applied forces and body
force to object , determine known and unknown variables , resolve
force vectors into components , write the equilibrium equations ,
choose points about which moments rotate and show + direction ,
substitute values for the variables and solve for unknowns
rthe trusses shown below, neglect self-weight, and do the following: (a) Draw a free body diagram and solve for the reactions....
Q3. a. Determine the reactions at supports A and B for the beam as shown in...
Q3. a. Determine the reactions at supports A and B for the beam as shown in figure below. (Assume support A is a roller and support B hinged) 15.01 22 N/m 15 N 50 Nm B А 6.5 m 3.5 m b. Draw the free body diagram of each of the blocks given in the figure below. [2.5)
draw free body diagram, draw coordinate system,
isolate object from its supports , add applied forces and body
force to object , determine known and unknown variables , resolve
force vectors into components , write the equilibrium equations ,
choose points about which moments rotate and show + direction ,
substitute values for the variables and solve for unknowns
rthe trusses shown below, neglect self-weight, and do the following: (a) Draw a free body diagram and solve for the reactions....
Q3. a. Determine the reactions at supports A and B for the beam as shown in figure below. (Assume support A is a roller and support B hinged) 15.01 22 N/m 15 N 50 Nm B А 6.5 m 3.5 m b. Draw the free body diagram of each of the blocks given in the figure below. [2.5)
