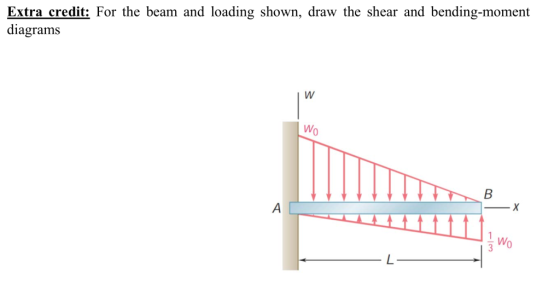

For the beam and loading shown, draw the shear and bending-moment diagrams Extra credit: For the beam and loading shown, draw the shear and bending-moment diagrams Wo Wo Extra credit: For the bea...

Question

Question

Extra credit: For the beam and loading shown, draw the shear and bending-moment diagrams Wo Wo For the beam and loading shown, draw the shear and bending-moment diagrams

engineering Mechanical-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

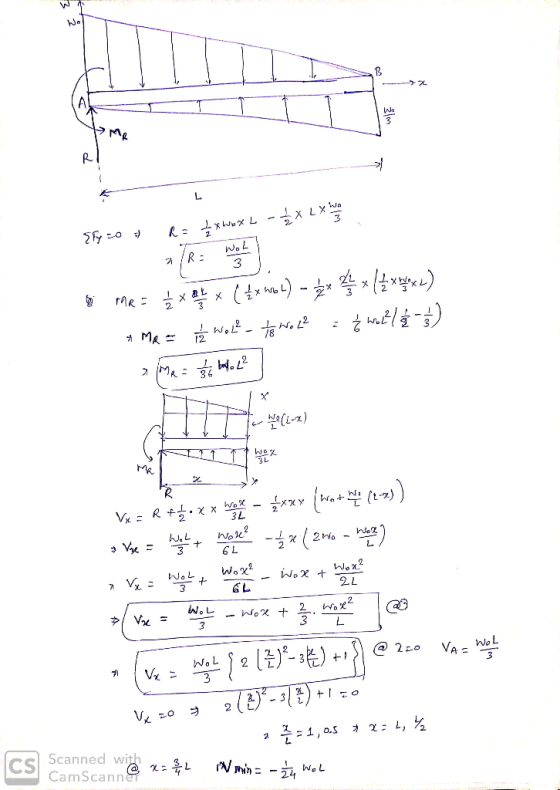

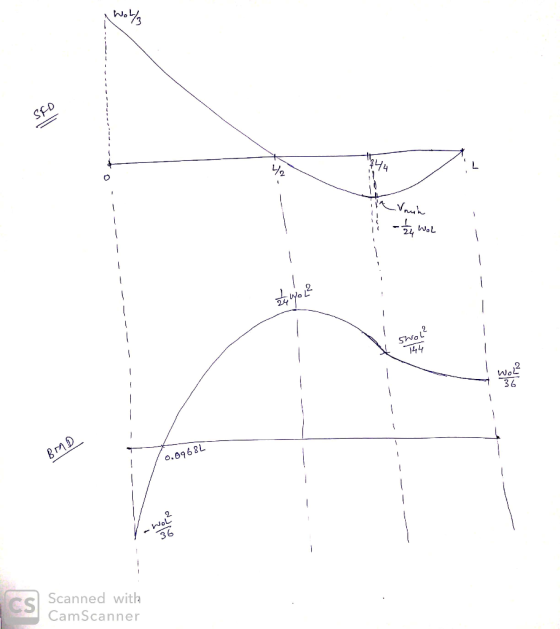

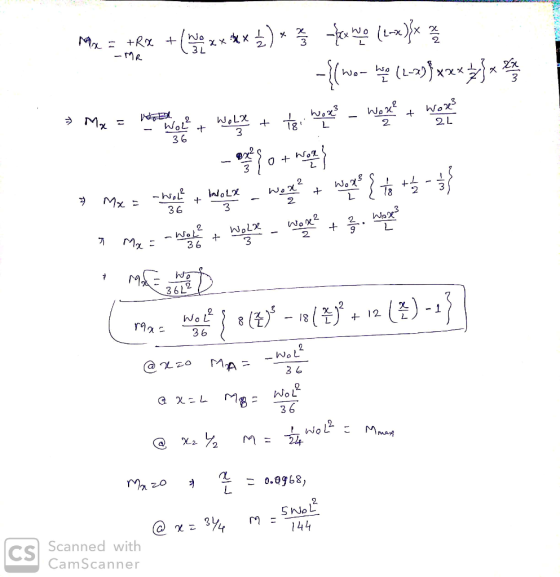

hJa wW R 3 /8 키Vu- . 부ielt). se) ←:)) @ 2.. V.. 빻 2 12 2 CS Scanned wi CamScann 3 L 2 L 3 6 2 3 3 6 2 2. 2 3 3 6 36L2 Woじ WoL zo CSI Scannedwith CamScanner SPD 2 WoL 36 68L o.69 2 s Scanned with CamScanner
