Question

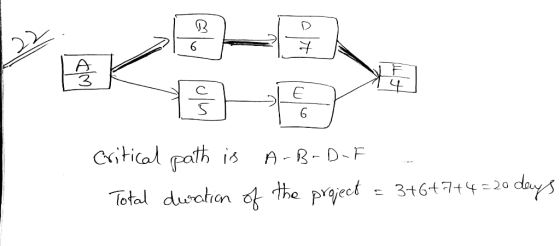

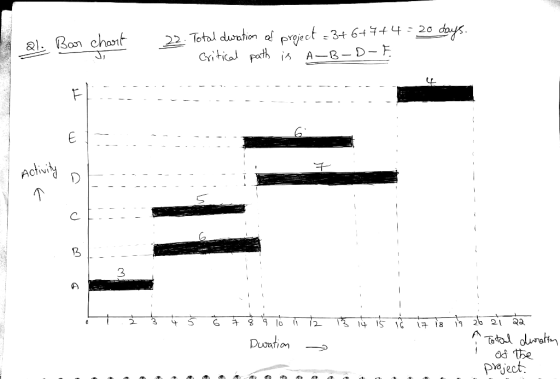

Questions 21-23 10 points each-30 points total 21. Draw a bar chart for the following construction data Activity Preceding Activity Duration D, E 22. What is the critical path for the above construction data 23. A contractor has been awarded a project covering 14.35 miles of highway construction approximately 250 feet wide, with an average pavement width of 23 feet. The project contracted to be completed in 32 878,545 per mile of road way, profit is 9 % of the project bid. The contractor's employees for the project consist of supervisors at a wage of $67.50/hour-10 % of work force, equipment operators at a wage of $57.50/hour-60% of project work force and laborers at a wage of S 42.50 hour 30 % of project work force. Overhead for the company is 98 % of the total of hourly wage rate of all employees working on the project. months. The company won the contract based on a bid of $ 2 How many highway stations on the project? Approximately how many acres does the project cover? How many square feet of paving? What is total project contract amount? What is the overhead for each type of employee and total project overhead per hour of work? How much can be spent within budget on each type of employee for the entire project? What is the profit for the project? If penalty for failure to complete project on time is 1 % of total project bid per day, how much would the 0 penalty for a week -7 days be?

Answer 1

on ehas1 3 Duantion

6 2 eation
