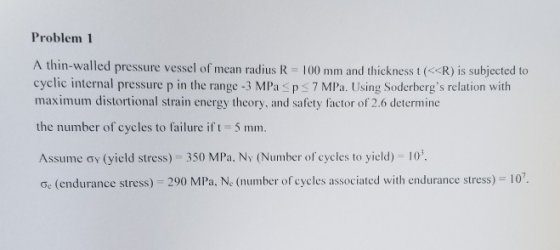

Problem 1 A thin-walled pressure vessel of mean radius R 100 mm and thickness t (R) is subjected to cyclic internal pressure p in the range -3 MPa p7 MPa. Using Soderberg's relation with maxim...

Question

Question

Problem 1 A thin-walled pressure vessel of mean radius R 100 mm and thickness t (R) is subjected to cyclic internal pressure

engineering Mechanical-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

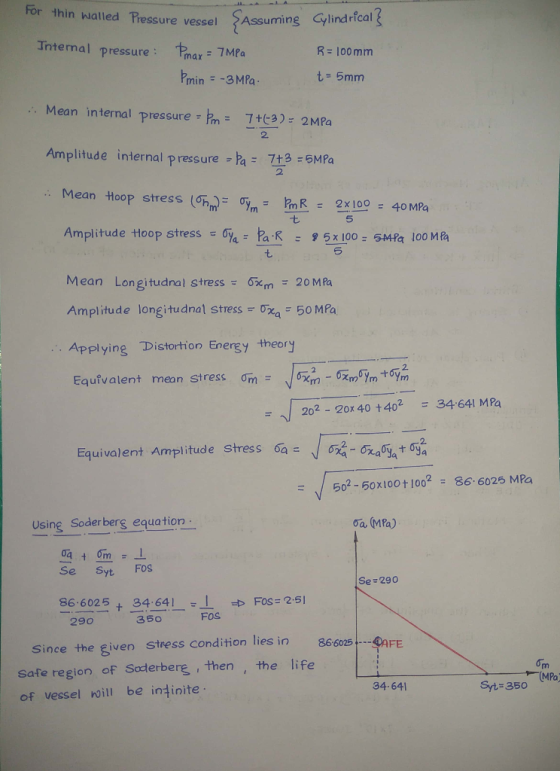

For thi nwatled Pressure vessel ssming Cylindrical R 100mm t- 5mm Tntenal pressure mar 7MPa min3 MPa internal pressure-hm-T t

Add a comment

Answer 2

Similar Homework Help Questions

A thin-walled closed-end pressure vessel of radius r= 120 mm and wall thickness t= 5 mm...

A thin-walled closed-end pressure vessel of radius r= 120 mm and wall thickness t= 5 mm is subjected to the tensile force P and internal pressure pi = 4MPa. Assume that the cross-sectional area A = 2hrt 199999997 P TE P P (a) The material of the vessel will fail if the maximum tensile stress exceeds 100MPa. Determine the maximum value of P so that the vessel will not have a tensile failure. (b) Calculate the maximum shear stress in...
The thin walled pressure vessel with closed ends shown below is under an internal pressure of...

The thin walled pressure vessel with closed ends shown below is under an internal pressure of P 6 MPa. If the pressure vessel has a radius of r 15 degrees from the longitudinal axis (i.e 144 mm and a wall thickness of t = 5 mm, what is the magnitude of the shear angle stress at an - T x'v). Ensure your answer is in MPa. у у' x x
MEE2001/2015 Q5. A thin walled steel cylinder with 10 mm wall thickness and internal diameter of 200 mm (Fig. Q5) is subjected to an internal pressure, p. The steel used for the cylinder has a yie...

MEE2001/2015 Q5. A thin walled steel cylinder with 10 mm wall thickness and internal diameter of 200 mm (Fig. Q5) is subjected to an internal pressure, p. The steel used for the cylinder has a yield stress of 240 MPa. +F 200 mm Fig. Q5 (a) If a tensile axial force of 1MN is applied to the end plate, show that the maximum internal pressure that can be applied before the cylinder yields according to the Tresca criterion is 16.2...

Problem 5. A thin-walled cylindrical pressure vessel of radius 50 mm and thickness 5 -mm, made of steel, is subject...

Problem 5. A thin-walled cylindrical pressure vessel of radius 50 mm and thickness 5 -mm, made of steel, is subjected to an internal pressure which is fluctuating from -0.2P to P. (i) Determine the safe pressure P according to each of the following criteria': (a) The Soderberg Criterion, (b) The Goodman Criterion, and (c) The Gerber Criterion (ii) Draw these criteria on same coordinates and include the load line. (iv) If a 20-MPa pressure is used what would be the...
Consider a thin-walled spherical pressure vessel, where the internal pressure, p, the sphere radius, r, and...

Consider a thin-walled spherical pressure vessel, where the internal pressure, p, the sphere radius, r, and the wall thickness, t. What is the elastic strain energy per unit volume in terms of p, r, t, the Young's modulus E, and the Poisson's ratio ν of the sphere? ( Please give correct answer only + step by step ) if you do not know how to answer leave the question for other Experts ).
Problem 3 [35 marks] An inspection of a failed thin walled pressure vessel (cylinder with closed...

Problem 3 [35 marks] An inspection of a failed thin walled pressure vessel (cylinder with closed ends) shows through- the-thickness cracks in the axial (or longitudinal) direction. The length of the cracks varies from 10 mm to 25 mm. The pressure vessel has radius R = 1.5 m, wall thickness t = 30 mm, and was manufactured from aluminium with fracture toughness properties Kịc = 50 MPa m12. a) Determine the pressure at which the vessel is expected to have...

Question 1 An end capped cylindrical pressure vessel with internal pressure p = fully supported at...

Question 1 An end capped cylindrical pressure vessel with internal pressure p = fully supported at one end, is also subjected to a force F= 10 kN in the y direction at the other end as shown. The internal diameter of the pressure vessel is d= 160 mm and its thickness is t= 10 mm 3 MPa, assumed to be Determine the magnitudes of the stress components in x, y and z coordinates at points H and K and sketch...
Problem 2 10 pts A cylindrical pressure vessel with wall thickness t-5 mm and inside radius r 150...

solid mechanics plz show yhe correct steps to the answers plz Problem 2 10 pts A cylindrical pressure vessel with wall thickness t-5 mm and inside radius r 150 mm is design to hold high pressure. The vessel design requires a safety factor against yielding Xo -2, and leak-before-break with a safety factor X-5 on the critical crack length; that is, the critical crack length ce must be at least Xt. Calculate the maximum pressure, p, if the vessel is...

Problem 1 A thin-walled pressure vessel of mean radius R 100 mm and thickness t (R) is subjected to cyclic internal pressure p in the range -3 MPa p7 MPa. Using Soderberg's relation with maxim...
