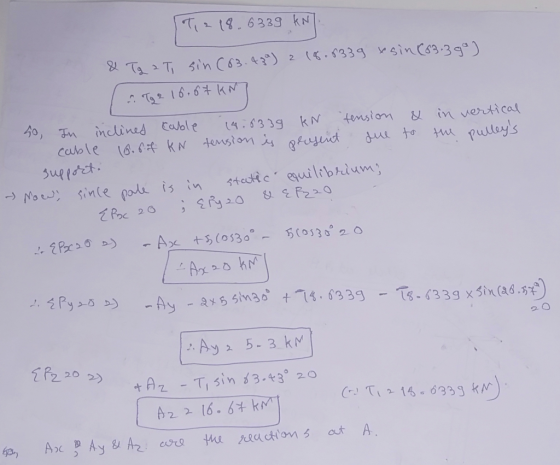

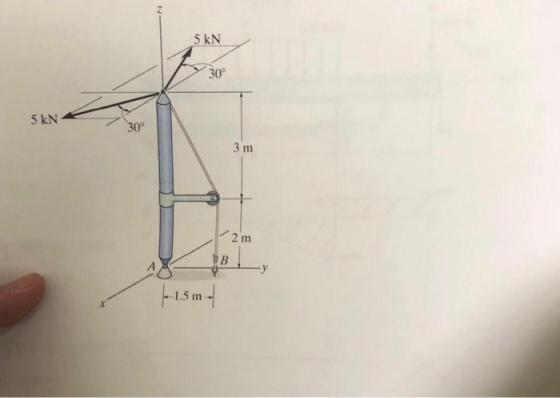

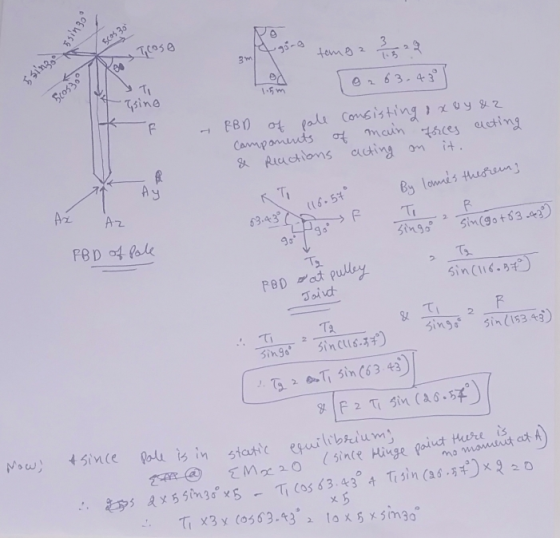

II.- The pole is supported by a "ball and socket joint" at point A (foundation) and by a lateral cable as shown. If the forces of 5kN are in the x-y plane. Determine the tension in the cable...
1. The 6-m pole ABC is acted upon by a force Pos shown. The pole is...
1. The 6-m pole ABC is acted upon by a force Pos shown. The pole is held by a ball-and-socket joint at A and by two cables BD and BE. If the tension in cable BE is 158 N and if a : 3m, determine the reaction at A along the y-axis. 3 m P 3 m 15 1.5 m 2. | The 6-m pole ABC is acted upon by a force P as shown. The pole is held by...
1. The pole is held by ball and socket connector at point O. Determine tension at...
1. The pole is held by ball and socket connector at point O.
Determine tension at cables AB and AC and reaction at O.
a. Record positions of points on the diagram:
O (
A (
B (
C (
a. Write complete equations of the forces in each direction.
b. Set up sum of matrices needed to determine moment about point
O.
c. From matrices above, write complete equations for i, j, and k
components of the moment about...
rroviem . (32%) A 1-beam is supported by a ball-and-socket joint at A and a rope...
rroviem . (32%) A 1-beam is supported by a ball-and-socket joint at A and a rope at B. A horizontal force P = 300 lb is applied on the beam as shown. In addition, a load W is suspended from D. Determine the tension in the rope BC, the load W and the support reactions at A. 40 in d=30 in P-300 lb 20 in
A winch for raising and lowering an 150 lb ball is supported by a ball-and-socket joint...
A winch for raising and lowering an 150 lb ball is supported by
a ball-and-socket joint at A and a smooth journal bearing at B, as
shown below. The bearing at B is oriented in such way that it only
provides force support reactions (i.e. no moment supports at
B).
A winch for raising and lowering an 150 lb ball is supported by a ball-and-socket joint at A and a smooth journal bearing at B, as shown below. The bearing...
For the space truss shown below, there is a Ball-and-socket joint at A. At C, only...
For the space truss shown below, there is a
Ball-and-socket joint at A. At C, only support reaction is in z
direction and at B, there are support reactions in y and z
directions. A force P=10k kN is applied to joint D. Triangle ABC is
in x-y plane at z=0. For this truss,
(a) Determine the sequence of joints with which the
entire truss can be solved for the member forces and support
reactions using the method of joints....
4. The space truss shown below is supported by ball and socket joints at C, D...
4. The space truss shown below is supported by ball and socket joints at C, D and E. The external force acting at joint A is F 10i+60j + 20k kN. Find forces in members AB, AC and AD. Indicate whether the axial forces in these members are compressive or tensile. Use method of joints. E (0,0.8,0) m 0.4 m 0.6 m
Shaft AC is 8 ft long and is supported by a ball and socket joint at...
Shaft AC is 8 ft long and is supported by a ball and socket joint at Point A and a roller at Point C. In addition, Cable BD is also connected to the shaft at Point B. It is known that a force F (Fj - 50k) Ib is applied to the shaft as shown. Determine the maximum value of Fy so that the roller will still have contact with the floor. Include the free-body diagram 4. 3 ft 4...
Problem 2. (32%) A I-beam is supported by a ball-and-socket joint at A and a rope...
Problem 2. (32%) A I-beam is supported by a ball-and-socket joint at A and a rope at B. A horizontal force P 300 lb is applied on the beam as shown. In addition, a load W is suspended from D. Determine the tension in the rope BC, the load W and the support 40 in d -30 in P-300 lb
Fundamental Problem 5.11 The block is supported by the short link BD, the ball-and-socket joint A,...
Fundamental Problem 5.11 The block is supported by the short link BD, the ball-and-socket joint A, and cords CE, CF. Suppose that F1-4.9 kN and F2 8.8 kN.(Figure 1) Part A Determine the z component of reaction force at B using scalar notation. Express your answer to three significant figures and include the appropriate units. в 4.9 kN Submit revious Answers Request Answer Incorrect; Try Again; 4 attempts remaining Figure 1 of 1 Part B Determine the tension in the...
Determine the components of reaction at the ball-and-socket joint A and the tension at cables BC...
Determine the components of reaction at the ball-and-socket joint A and the tension at cables BC and BD necessary for equilibrium Show Free body diagrams and all calculations for full credit. 3 m150 N/m 2 m 75 N/m 4 m 400 N
1. The 6-m pole ABC is acted upon by a force Pos shown. The pole is held by a ball-and-socket joint at A and by two cables BD and BE. If the tension in cable BE is 158 N and if a : 3m, determine the reaction at A along the y-axis. 3 m P 3 m 15 1.5 m 2. | The 6-m pole ABC is acted upon by a force P as shown. The pole is held by...
1. The pole is held by ball and socket connector at point O.
Determine tension at cables AB and AC and reaction at O.
a. Record positions of points on the diagram:
O (
A (
B (
C (
a. Write complete equations of the forces in each direction.
b. Set up sum of matrices needed to determine moment about point
O.
c. From matrices above, write complete equations for i, j, and k
components of the moment about...
rroviem . (32%) A 1-beam is supported by a ball-and-socket joint at A and a rope at B. A horizontal force P = 300 lb is applied on the beam as shown. In addition, a load W is suspended from D. Determine the tension in the rope BC, the load W and the support reactions at A. 40 in d=30 in P-300 lb 20 in
A winch for raising and lowering an 150 lb ball is supported by
a ball-and-socket joint at A and a smooth journal bearing at B, as
shown below. The bearing at B is oriented in such way that it only
provides force support reactions (i.e. no moment supports at
B).
A winch for raising and lowering an 150 lb ball is supported by a ball-and-socket joint at A and a smooth journal bearing at B, as shown below. The bearing...
For the space truss shown below, there is a
Ball-and-socket joint at A. At C, only support reaction is in z
direction and at B, there are support reactions in y and z
directions. A force P=10k kN is applied to joint D. Triangle ABC is
in x-y plane at z=0. For this truss,
(a) Determine the sequence of joints with which the
entire truss can be solved for the member forces and support
reactions using the method of joints....
4. The space truss shown below is supported by ball and socket joints at C, D and E. The external force acting at joint A is F 10i+60j + 20k kN. Find forces in members AB, AC and AD. Indicate whether the axial forces in these members are compressive or tensile. Use method of joints. E (0,0.8,0) m 0.4 m 0.6 m
Shaft AC is 8 ft long and is supported by a ball and socket joint at Point A and a roller at Point C. In addition, Cable BD is also connected to the shaft at Point B. It is known that a force F (Fj - 50k) Ib is applied to the shaft as shown. Determine the maximum value of Fy so that the roller will still have contact with the floor. Include the free-body diagram 4. 3 ft 4...
Problem 2. (32%) A I-beam is supported by a ball-and-socket joint at A and a rope at B. A horizontal force P 300 lb is applied on the beam as shown. In addition, a load W is suspended from D. Determine the tension in the rope BC, the load W and the support 40 in d -30 in P-300 lb
Fundamental Problem 5.11 The block is supported by the short link BD, the ball-and-socket joint A, and cords CE, CF. Suppose that F1-4.9 kN and F2 8.8 kN.(Figure 1) Part A Determine the z component of reaction force at B using scalar notation. Express your answer to three significant figures and include the appropriate units. в 4.9 kN Submit revious Answers Request Answer Incorrect; Try Again; 4 attempts remaining Figure 1 of 1 Part B Determine the tension in the...
Determine the components of reaction at the ball-and-socket joint A and the tension at cables BC and BD necessary for equilibrium Show Free body diagrams and all calculations for full credit. 3 m150 N/m 2 m 75 N/m 4 m 400 N
