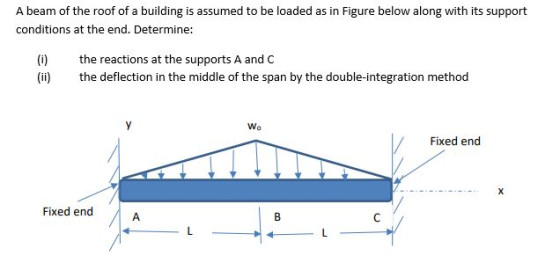

A beam of the roof of a building is assumed to be loaded as in Figure below along with its support conditions at the end. Determine: (i)the reactions at the supports A and C (i) the deflection in the...
(a) Determine the support moments and reactions for the continuous beam (loaded as shown in Fig....
(a) Determine the support moments and reactions for the continuous beam (loaded as shown in Fig. 4a) having variable moment of inertia (1) using Slope Deflection Method when support B moves up by 0.01m. Support A is fixed and the other supports are rollers or pins. Use E 200 GPa, and1 400 x 60kN 60kN 30kN/m 60kN/m 21, B 41 20m 5m ←15 m 5m 10 m 10m Fig. 4a
10. The slope and deflection at a section in a loaded beam can be found out...
10. The slope and deflection at a section in a loaded beam can be found out by which of the following methods? (a) Double integration method (b) Moment area method (c) Macaulay's method (d) Any of the above. 15. A cartilever AB of length 1 is carrying a distributed load whose intensity varies uniformly from zero at the free end to w per un run at the forced end. The deflection at the free end is given as: (3) 30E1...
1. For the beam loaded as shown, determine the displacement at C midway between the supports...
1. For the beam loaded as shown, determine the displacement at C midway between the supports by double-integration method. 3.KN/m 8KN 3.KN/m 1.0 m 2.5 m 2.5 m
1. For the beam loaded as shown, determine the displacement at C midway between the supports...
1. For the beam loaded as shown, determine the displacement at C midway between the supports by double-integration method. 3.KN/m 8KN 3.KN/m 10 m 2.5 m 1.0 m 2.5 m
QUESTION 4 (25 marks) A simply supported beam is loaded by an uniform distributed load, wkN/m, over the span of the beam, L, as shown in Figure Q4. (a) Determine the end reactions at point A and...
QUESTION 4 (25 marks) A simply supported beam is loaded by an uniform distributed load, wkN/m, over the span of the beam, L, as shown in Figure Q4. (a) Determine the end reactions at point A and B in terms of w and L. (4 marks) (b) At an arbitrary point, x, express the internal mom (c) Show that the deflection curve of the beam under the loading situation is ent, M(x), in x, w, and L. (5 marks) 24EI...
a 16' span beam is loaded as shown. determine: support reactions at b & c Shear...
a 16' span beam is loaded as shown. determine:
support reactions at b & c
Shear diagram & peak points
Momet diagram
Max bending stress
6k (1) 3k/ft Ab C 4 4
2.- The beam shown in the figure, has a roller support at A, a fixed support at C and an internal...
2.- The beam shown in the figure, has a roller support at A, a fixed support at C and an internal hinge at B. The lengths of segments AB and BC are α and b respectively. A uniformly distributed load, q, is applied between points B and C, and a concentrated load P acts at a distance 2a/3 from the support A. EI is constant. (a) Determine the deflection B at the hinge using superposition. Clearly state the continuity conditions...
For the beam shown determine:
E= 200GPa I=700*106 mm4For the beam shown determine:1. Using the method of the three-moment equation, determine the reactions at eachone of the supports.2. Using the double integration method, determine the slope and deflection equations.that describe the behaviorthroughout the beam.3. Using the moment area method verify that the deflection values at C and theslope in B are similar to thoseobtained through the double integration method.4. Ask God for forgiveness for all your sins
For the continuous beam shown, compute the support reactions using the method of consistent defor...
draw the shear and bending moment diagrams also please
For the continuous beam shown, compute the support reactions using the method of consistent deformations by taking the reaction at support B as redundant. Also, draw the shear and bending moment diagrams. The beam is subjected to a 20 kips concentrated load at the middle of the left span plus a 1.5 inch settlement of support B. Use deflection formulas to determine deflections at B. Assume E-29000 ksi and I-750 in...
SAN4701 OCT/NOV 2017 QUESTION 1 The beam shown in Figure 1 is fixed at support A and support C, support B is a roller s...
SAN4701 OCT/NOV 2017 QUESTION 1 The beam shown in Figure 1 is fixed at support A and support C, support B is a roller support. Use the stiffness matrix method to determine the. Member stiffness matrix 11 1.2 Structure and load matrix (10) 13 Displacement matrix Reactions at the support 14 15. Moments at the fixed supports El is constant along the length of the beam 18 kN 10 kN 20 m 10 m 1 15 m15 m Figure 1...
(a) Determine the support moments and reactions for the continuous beam (loaded as shown in Fig. 4a) having variable moment of inertia (1) using Slope Deflection Method when support B moves up by 0.01m. Support A is fixed and the other supports are rollers or pins. Use E 200 GPa, and1 400 x 60kN 60kN 30kN/m 60kN/m 21, B 41 20m 5m ←15 m 5m 10 m 10m Fig. 4a
10. The slope and deflection at a section in a loaded beam can be found out by which of the following methods? (a) Double integration method (b) Moment area method (c) Macaulay's method (d) Any of the above. 15. A cartilever AB of length 1 is carrying a distributed load whose intensity varies uniformly from zero at the free end to w per un run at the forced end. The deflection at the free end is given as: (3) 30E1...
1. For the beam loaded as shown, determine the displacement at C midway between the supports by double-integration method. 3.KN/m 8KN 3.KN/m 1.0 m 2.5 m 2.5 m
1. For the beam loaded as shown, determine the displacement at C midway between the supports by double-integration method. 3.KN/m 8KN 3.KN/m 10 m 2.5 m 1.0 m 2.5 m
QUESTION 4 (25 marks) A simply supported beam is loaded by an uniform distributed load, wkN/m, over the span of the beam, L, as shown in Figure Q4. (a) Determine the end reactions at point A and B in terms of w and L. (4 marks) (b) At an arbitrary point, x, express the internal mom (c) Show that the deflection curve of the beam under the loading situation is ent, M(x), in x, w, and L. (5 marks) 24EI...
a 16' span beam is loaded as shown. determine:
support reactions at b & c
Shear diagram & peak points
Momet diagram
Max bending stress
6k (1) 3k/ft Ab C 4 4
2.- The beam shown in the figure, has a roller support at A, a fixed support at C and an internal hinge at B. The lengths of segments AB and BC are α and b respectively. A uniformly distributed load, q, is applied between points B and C, and a concentrated load P acts at a distance 2a/3 from the support A. EI is constant. (a) Determine the deflection B at the hinge using superposition. Clearly state the continuity conditions...
draw the shear and bending moment diagrams also please
For the continuous beam shown, compute the support reactions using the method of consistent deformations by taking the reaction at support B as redundant. Also, draw the shear and bending moment diagrams. The beam is subjected to a 20 kips concentrated load at the middle of the left span plus a 1.5 inch settlement of support B. Use deflection formulas to determine deflections at B. Assume E-29000 ksi and I-750 in...
SAN4701 OCT/NOV 2017 QUESTION 1 The beam shown in Figure 1 is fixed at support A and support C, support B is a roller support. Use the stiffness matrix method to determine the. Member stiffness matrix 11 1.2 Structure and load matrix (10) 13 Displacement matrix Reactions at the support 14 15. Moments at the fixed supports El is constant along the length of the beam 18 kN 10 kN 20 m 10 m 1 15 m15 m Figure 1...
