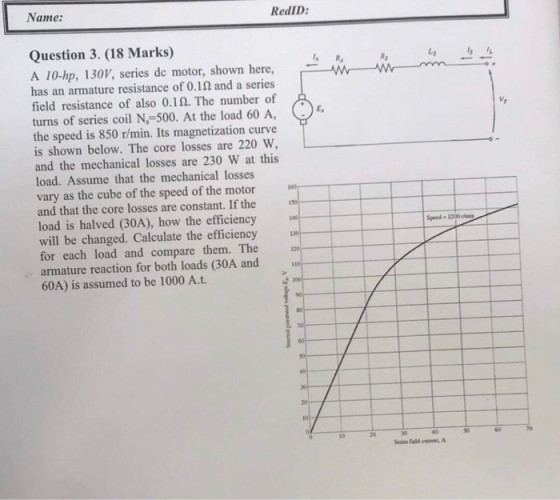

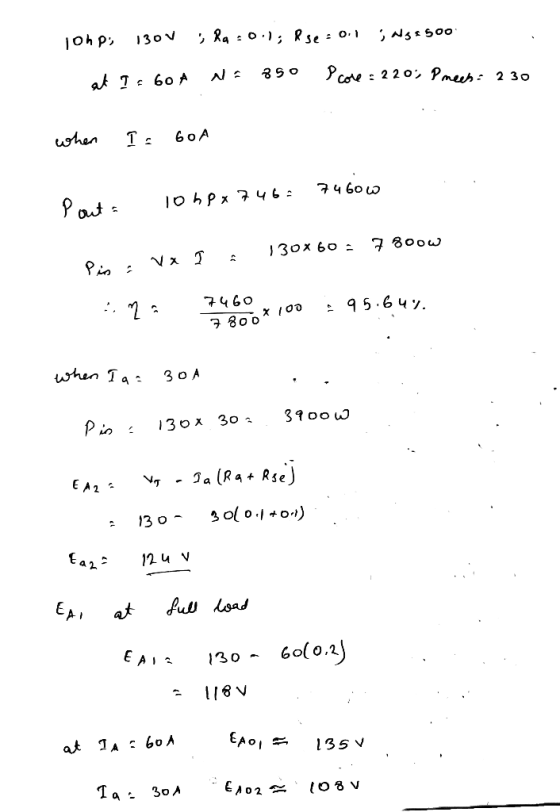

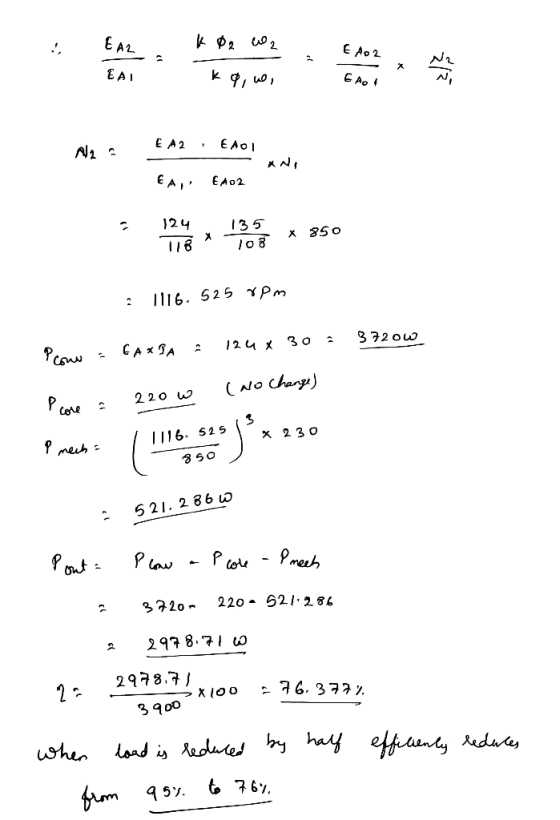

RedID: Name: Question 3. (18 Marks) A 10-hp, 130V, series dc motor, shown here, has an armature resistance of 0.1 Ω and a series field resistance of also 0.1. The number of turns of series coil N...
1. A 300 V compound motor has armature resistance 0.18 Ω, series field resistance 0.3 Ω...
1. A 300 V compound motor has armature resistance 0.18 Ω, series field resistance 0.3 Ω and shunt field resistance 100 Ω. The rotational losses are 200 W. On full load the line current is 25 A and the motor runs at 1800 rpm. Determine: (i) the developed mechanical power (ii) the output power (iii) the output torque (iv) the efficiency at full load 2. A 120 V series motor has 0.2 Ω field resistance. On full load, the line...
Question (3) Speed Control [10 Marks A 50 hp, 220 V, 1500 rpm DC shunt motor...
Question (3) Speed Control [10 Marks A 50 hp, 220 V, 1500 rpm DC shunt motor with an armature resistance of 0.04 Q and a field resistance of 50 Q. The motor has compensating windings, so armature reactance can be ignored. Mechanical and core losses may be ignored also. The moter is driving a load toque that is proportional with speed, Ti a (n). The motor is driving a load with a line current of 80 A and an initial...
A 8250 w shunt DC motor has a terminal voltage of 300 V. A field resistance...
A 8250 w shunt DC motor has a terminal voltage of 300 V. A field resistance Rf of 40 Ω, and an armature resistance Ra of 250 mm2. The field winding has 1500 turns. An adjustable resistance Rad is connected in series to the field winding. Rad is set at 20 Ω, but it can vary from 0 to 80 Ω. The magnetization curve is shown in Figure.1 and it is taken at a speed of 1200 rpm. (Armature reaction...
FQ3 3. A 240 V DC series motor with 0.1 ohm armature resistance and 0.1 ohm...
FQ3
3. A 240 V DC series motor with 0.1 ohm armature resistance and 0.1 ohm field resistance runs at 1200 rpm and 100 Amp. of full load speed and armature current respectively. The motor has a brush contact drop of 2 volts. Find the motor full load torque and efficiency If the motor is to drive a pump that requires a torque of 150 NM, find the speed as the motor drives the given pump. a. b.
A 220 V DC shunt motor has an armature resistance, Re-0.1 S2, a field resistance, Ry=100...
A 220 V DC shunt motor has an armature resistance, Re-0.1 S2, a field resistance, Ry=100 12, and negligible rotational losses. Under certain load conditions, the shunt motor runs at 1600 rpm while drawing a total current, I = 100 A. Determine: a. the output power of the motor; b. the output torque in N-m; and, c. the efficiency Without making any changes to the applied voltage or the field, the motor operates with a new M mechanical load that...
A 30 hp, 240 V, 1150 rpm de shunt motor operating at rated conditions has an efficiency of 88.5%. The armature circuit resistance and field circuit resistance are 0.096 Ω and 936 Ω respectively. Calc...
A 30 hp, 240 V, 1150 rpm de shunt motor operating at rated conditions has an efficiency of 88.5%. The armature circuit resistance and field circuit resistance are 0.096 Ω and 936 Ω respectively. Calculate the following: (a) the armature current; b) the output torque (c) the mechanical developed power (d) the mechanical developed torque; and, e) the external resistance required in series with the armature to limit the starting torque to 200 % of rated torque. If the load...
Problem 3: DC machine A shunt DC motor rated at V,'. 300 V, with field resistance...
Problem 3: DC machine A shunt DC motor rated at V,'. 300 V, with field resistance of Rf 600 0, armature 0.2 , resistance of R, 30.5 A (total current) when rated-load at n, consumes 916.8 rpm. Armature rotational loss (consisting of fan, friction and core loss (consisting of field resistance, armature a) Find Prot (rotational load), Pshaft and efficiency at rated load. - Assume that the rotational loss is constant and P,aft is now 50% in the case of...
T u resistance in a DC is decreased while the motor is driving a ii. A...
T u resistance in a DC is decreased while the motor is driving a ii. A 100-hp, 250-V DC shunt motor with compensating winding has an am 0.04 12 and a variable shunt field resistance R; 92. The magn ompensating winding has an armature resistance of shunt field resistance R, 12. The magnetization curve of this motor is shown in Fig. 1. At no load, the field resistor has been a . At no load, the field resistor has been...
Problem 2 A separately excited DC motor is characterized by the followng intormation Armature res...
Problem 2 A separately excited DC motor is characterized by the followng intormation Armature resistance Ra-5 2 armature inductance La . very large, Field resistance RS200 Ω, ted voltage Vt 200 V, and an inertia constant J-12 kg m Neglecting friction losses and assuming no-saturation in the machine magnetic core system, answer the folowing questions: Part 1: (6 marks) he motor a as shown in figure 2a. The motor drives a constant power load of vaue 1 40375 hp (ie...
3. A 25-kW, 230-V shunt motor has an armature resistance of 0.064 Ω and a field-circuit...
3. A 25-kW, 230-V shunt motor has an armature resistance of 0.064 Ω and a field-circuit resistance of 95 Ω. The motor delivers rated output power at rated voltage when its armature current is 122 A. When the motor is operating at rated voltage, the speed is observed to be 1150 r/min when the machine is loaded such that the armature current is 69.5 A a. Calculate the rated-load speed of this motor In order to protect both the motor...
Question (3) Speed Control [10 Marks A 50 hp, 220 V, 1500 rpm DC shunt motor with an armature resistance of 0.04 Q and a field resistance of 50 Q. The motor has compensating windings, so armature reactance can be ignored. Mechanical and core losses may be ignored also. The moter is driving a load toque that is proportional with speed, Ti a (n). The motor is driving a load with a line current of 80 A and an initial...
A 8250 w shunt DC motor has a terminal voltage of 300 V. A field resistance Rf of 40 Ω, and an armature resistance Ra of 250 mm2. The field winding has 1500 turns. An adjustable resistance Rad is connected in series to the field winding. Rad is set at 20 Ω, but it can vary from 0 to 80 Ω. The magnetization curve is shown in Figure.1 and it is taken at a speed of 1200 rpm. (Armature reaction...
FQ3
3. A 240 V DC series motor with 0.1 ohm armature resistance and 0.1 ohm field resistance runs at 1200 rpm and 100 Amp. of full load speed and armature current respectively. The motor has a brush contact drop of 2 volts. Find the motor full load torque and efficiency If the motor is to drive a pump that requires a torque of 150 NM, find the speed as the motor drives the given pump. a. b.
A 220 V DC shunt motor has an armature resistance, Re-0.1 S2, a field resistance, Ry=100 12, and negligible rotational losses. Under certain load conditions, the shunt motor runs at 1600 rpm while drawing a total current, I = 100 A. Determine: a. the output power of the motor; b. the output torque in N-m; and, c. the efficiency Without making any changes to the applied voltage or the field, the motor operates with a new M mechanical load that...
A 30 hp, 240 V, 1150 rpm de shunt motor operating at rated conditions has an efficiency of 88.5%. The armature circuit resistance and field circuit resistance are 0.096 Ω and 936 Ω respectively. Calculate the following: (a) the armature current; b) the output torque (c) the mechanical developed power (d) the mechanical developed torque; and, e) the external resistance required in series with the armature to limit the starting torque to 200 % of rated torque. If the load...
Problem 3: DC machine A shunt DC motor rated at V,'. 300 V, with field resistance of Rf 600 0, armature 0.2 , resistance of R, 30.5 A (total current) when rated-load at n, consumes 916.8 rpm. Armature rotational loss (consisting of fan, friction and core loss (consisting of field resistance, armature a) Find Prot (rotational load), Pshaft and efficiency at rated load. - Assume that the rotational loss is constant and P,aft is now 50% in the case of...
T u resistance in a DC is decreased while the motor is driving a ii. A 100-hp, 250-V DC shunt motor with compensating winding has an am 0.04 12 and a variable shunt field resistance R; 92. The magn ompensating winding has an armature resistance of shunt field resistance R, 12. The magnetization curve of this motor is shown in Fig. 1. At no load, the field resistor has been a . At no load, the field resistor has been...
Problem 2 A separately excited DC motor is characterized by the followng intormation Armature resistance Ra-5 2 armature inductance La . very large, Field resistance RS200 Ω, ted voltage Vt 200 V, and an inertia constant J-12 kg m Neglecting friction losses and assuming no-saturation in the machine magnetic core system, answer the folowing questions: Part 1: (6 marks) he motor a as shown in figure 2a. The motor drives a constant power load of vaue 1 40375 hp (ie...
3. A 25-kW, 230-V shunt motor has an armature resistance of 0.064 Ω and a field-circuit resistance of 95 Ω. The motor delivers rated output power at rated voltage when its armature current is 122 A. When the motor is operating at rated voltage, the speed is observed to be 1150 r/min when the machine is loaded such that the armature current is 69.5 A a. Calculate the rated-load speed of this motor In order to protect both the motor...
