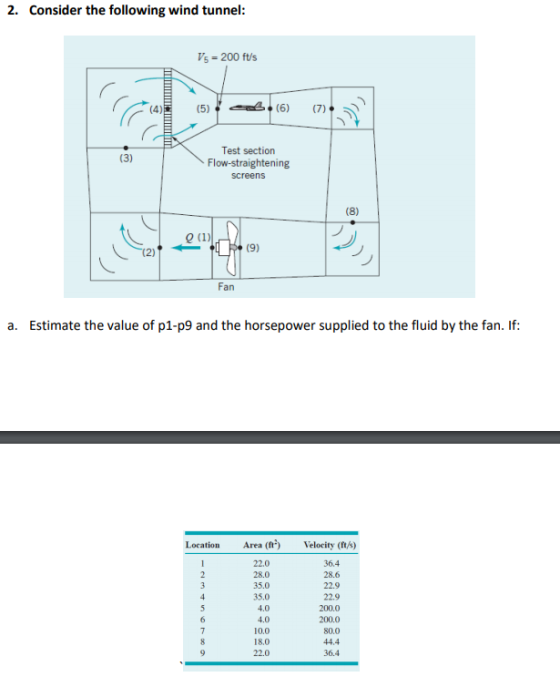

2. Consider the following wind tunnel: Vs 200 ft/s (6) (7) Test section Flow-straightening screens Fan Estimate the value of
Please explain clearly

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

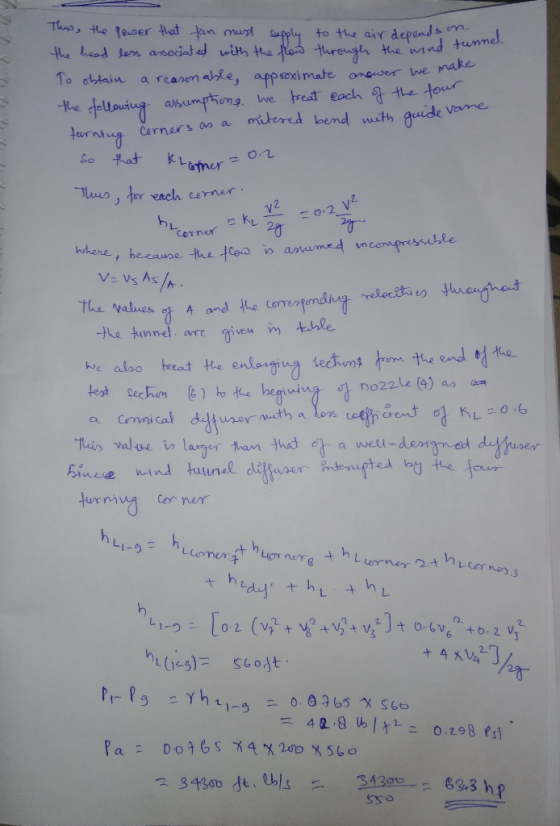

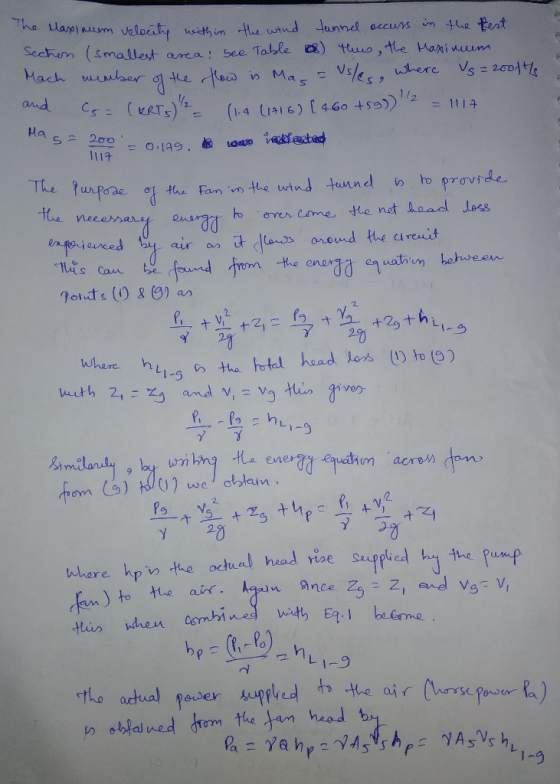

see Tabke e) tuoe aium Sechem (smallest arca and Cs (EATS 111구 (1.4 (1916) [ 4Go +59)) , s) = en foi aree d tout- air on 다 (İto the air depends em the head es asociated with the flos turous en To obiain a rcamabke, appsoxi mabe onsuser bwe th tue wtn

0 0
Add a comment
Know the answer?
Add Answer to:
Please explain clearly 2. Consider the following wind tunnel: Vs 200 ft/s (6) (7) Test section Flow-straightening screens Fan Estimate the value of p1-p9 and the horsepower supplied to the fluid by t...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • 5. The closed-circuit wind tunnel flows air with a velocity of 200 ft/s [between sections (5)...

    5. The closed-circuit wind tunnel flows air with a velocity of 200 ft/s [between sections (5) and (6)] at standard condition. The picture and diagram of the wind tunnels are provided below. The flow is driven by a fan that essentially increases the static pressure by the amount pı - p9 that is needed to overcome the head losses experienced by the fluid as it flows around the circuit. Determine the pressure rise (pi - ps). Conditions) Assume air is...
