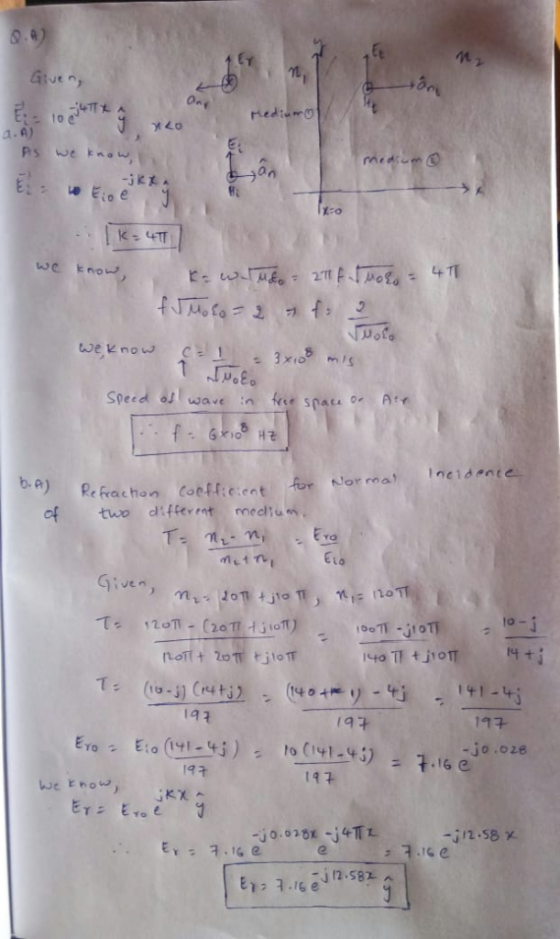

3.A uniform electromagnetic plane wave is normally incident from the air region ( medium #1 with+ η = η。= 120π ) upon the planar interface separating air from a lossy dielectric medium (medium #...
2A uniform electromagnetic plane wave is normally incident norm the air region (medium #1 with intrinsic medium (medium #2 with intrinsic k,- and wavenumber k ) upon the planar interface separati...
2A uniform electromagnetic plane wave is normally incident norm the air region (medium #1 with intrinsic medium (medium #2 with intrinsic k,- and wavenumber k ) upon the planar interface separating air from a lossy dielectric impedance 'h-%(I + J) and wavenumber (1-)).The incident plane wave in air has a phasor electric field given by 2. Find (leave all answers in terms ofm: (a) value of the wavenumber in air, ko (b) attenuation constant α and phase constant β (c)...
P.7-19 A uniform plane wave in air with E,(2) a, 10e6 (V/m) is incident normally on...

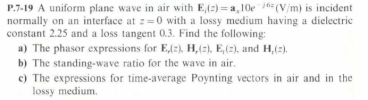

P.7-19 A uniform plane wave in air with E,(2) a, 10e6 (V/m) is incident normally on an interface at 0 with a lossy medium having a dielectric constant 2.25 and a loss tangent 0.3. Find the following: a) The phasor expressions for E,lz) H,) E,(2), and H,(2) b) The standing-wave ratio for the wave in air. c) The expressions for time-average Poynting vectors in air and in the lossy medium.
19. A linearly polarized wave propagates in a perfect dielectric medium with relative permittivity of 2....
19. A linearly polarized wave propagates in a perfect dielectric medium with relative permittivity of 2. The wave reaches the interface between this medium and air at an angle of incidence 60°. The wave's electric field vector is parallel to the plane of incidence. What percentage of the incident power is transmitted in air? 20. A plane electromagnetic wave traveling in vacuum is normally incident onto a vacuum/dielectric boundary. 36% of the incident power is carried by the reflected wave....
Ē"(z)= 2a e 3x104) 1) A uniform plane wave is incident normally on an air-sea water...
Ē"(z)= 2a e 3x104) 1) A uniform plane wave is incident normally on an air-sea water interface at z=0. The phasor expression of the incident electric field intensity is: (V/m) The parameters of the sea-water are: E = 80€, (F/m), u = H (H/m)and o = 4(S/m). Find: a) The intrinsic impedance of medium (1) and medium (2). b) The reflection and transmission coefficients. c) The attenuation and phase constants in the second medium. d) The ratio of the sea-water...
3. A uniform plane electromagnetic wave with the time harmonic electric field intensity vector E' =ǐ10cos(cr-6m) (volts/meter) 46.μ.-Ha ) upon the is incident from the lossless medium I ( Ei 수x...
3. A uniform plane electromagnetic wave with the time harmonic electric field intensity vector E' =ǐ10cos(cr-6m) (volts/meter) 46.μ.-Ha ) upon the is incident from the lossless medium I ( Ei 수x lossless half-space medium 2 (629 Find: 4o) (a) the wave numbers and intrinsic impedances of each medium expressed in terms of air parameters ko and巩; give formulas for these air parameters. (b) the phasor reflected and transmitted electric field intensities Leave answers (c) the phasor reflected and transmitted magnetic...
1. In the region x<0 (air), an electromagnetic uniform plane wave with phasorelectric fieldAIR 1 PEC E (x)-iSe is incident upon a perfect electric conductor (PEC) at x -0 Leave answers in term...
1. In the region x<0 (air), an electromagnetic uniform plane wave with phasorelectric fieldAIR 1 PEC E (x)-iSe is incident upon a perfect electric conductor (PEC) at x -0 Leave answers in terms of free space (air) parameters k,70 Find the (a) phasor reflected electric field E b) total phasor magnetic field H(x) in the air region xco () phasor surface electric current density Js on the perfect electric conductor (PEC)
1. In the region x
3. A uniform plane electromagnetic wave propagates in a lossless dielectric medium with μ μ0 and...
3. A uniform plane electromagnetic wave propagates in a lossless dielectric medium with μ μ0 and ε ε,60 . The phasor electric field is given by the Note that the wavenumber of the dielectric k ko, where ko-o/c ωνμοε0 . Find the (a) relative dielectric permittivity (dielectric constant) (b) direction of propagation n, which is a unit vector (e) angle between the direction that the electric field vector points and the direction of in.
A uniform plane wave in a lossy nonmagnetic medium of dielectric constant &2.3 is described by...
A uniform plane wave in a lossy nonmagnetic medium of dielectric constant &2.3 is described by 0s t-3.40a, v/m. E(z,t)-1 0e-02: cos(9% 108 t _ 3. 4z)a, +24e cos(9x1 (a) (b) (c) Calculate the intrinsic impedance n. (3 marks) Determine H(z,t). (1 marks) Find the displacement current density Ja (3 marks)
4) A plane wave in air with is incident upon the planar surface of a dielectric material, with e2.25, occupying the half-space z 2 0. Determine (a) The incidence angle i (e) The field E, of the r...
4) A plane wave in air with is incident upon the planar surface of a dielectric material, with e2.25, occupying the half-space z 2 0. Determine (a) The incidence angle i (e) The field E, of the reflected wave (d) The field E of the wave transmitted into the dielectric, (e) The average power density carried by the wave into the dielectric medium.(30 pts.) (b) The frequency of the wave. Hint: This incident wave is a mixture of parallel and...
Problem 6. Electromagnetic plane waves in a lossy medium The electric field of an electromagnetic plane wave traveling in a lossy medium can be written as where z is the distance, t is time, and f...
Problem 6. Electromagnetic plane waves in a lossy medium The electric field of an electromagnetic plane wave traveling in a lossy medium can be written as where z is the distance, t is time, and fthe frequency. For f 1 GHz, it is found by measurement that the amplitude of the electric field is attenuated by a factor of 3 after the wave travels 100 m (i.e., to 1/3 of the amplitude at z-0 when it arrives at z- 100...
2A uniform electromagnetic plane wave is normally incident norm the air region (medium #1 with intrinsic medium (medium #2 with intrinsic k,- and wavenumber k ) upon the planar interface separating air from a lossy dielectric impedance 'h-%(I + J) and wavenumber (1-)).The incident plane wave in air has a phasor electric field given by 2. Find (leave all answers in terms ofm: (a) value of the wavenumber in air, ko (b) attenuation constant α and phase constant β (c)...
P.7-19 A uniform plane wave in air with E,(2) a, 10e6 (V/m) is incident normally on an interface at 0 with a lossy medium having a dielectric constant 2.25 and a loss tangent 0.3. Find the following: a) The phasor expressions for E,lz) H,) E,(2), and H,(2) b) The standing-wave ratio for the wave in air. c) The expressions for time-average Poynting vectors in air and in the lossy medium.
19. A linearly polarized wave propagates in a perfect dielectric medium with relative permittivity of 2. The wave reaches the interface between this medium and air at an angle of incidence 60°. The wave's electric field vector is parallel to the plane of incidence. What percentage of the incident power is transmitted in air? 20. A plane electromagnetic wave traveling in vacuum is normally incident onto a vacuum/dielectric boundary. 36% of the incident power is carried by the reflected wave....
Ē"(z)= 2a e 3x104) 1) A uniform plane wave is incident normally on an air-sea water interface at z=0. The phasor expression of the incident electric field intensity is: (V/m) The parameters of the sea-water are: E = 80€, (F/m), u = H (H/m)and o = 4(S/m). Find: a) The intrinsic impedance of medium (1) and medium (2). b) The reflection and transmission coefficients. c) The attenuation and phase constants in the second medium. d) The ratio of the sea-water...
3. A uniform plane electromagnetic wave with the time harmonic electric field intensity vector E' =ǐ10cos(cr-6m) (volts/meter) 46.μ.-Ha ) upon the is incident from the lossless medium I ( Ei 수x lossless half-space medium 2 (629 Find: 4o) (a) the wave numbers and intrinsic impedances of each medium expressed in terms of air parameters ko and巩; give formulas for these air parameters. (b) the phasor reflected and transmitted electric field intensities Leave answers (c) the phasor reflected and transmitted magnetic...
1. In the region x<0 (air), an electromagnetic uniform plane wave with phasorelectric fieldAIR 1 PEC E (x)-iSe is incident upon a perfect electric conductor (PEC) at x -0 Leave answers in terms of free space (air) parameters k,70 Find the (a) phasor reflected electric field E b) total phasor magnetic field H(x) in the air region xco () phasor surface electric current density Js on the perfect electric conductor (PEC)
1. In the region x
3. A uniform plane electromagnetic wave propagates in a lossless dielectric medium with μ μ0 and ε ε,60 . The phasor electric field is given by the Note that the wavenumber of the dielectric k ko, where ko-o/c ωνμοε0 . Find the (a) relative dielectric permittivity (dielectric constant) (b) direction of propagation n, which is a unit vector (e) angle between the direction that the electric field vector points and the direction of in.
A uniform plane wave in a lossy nonmagnetic medium of dielectric constant &2.3 is described by 0s t-3.40a, v/m. E(z,t)-1 0e-02: cos(9% 108 t _ 3. 4z)a, +24e cos(9x1 (a) (b) (c) Calculate the intrinsic impedance n. (3 marks) Determine H(z,t). (1 marks) Find the displacement current density Ja (3 marks)
4) A plane wave in air with is incident upon the planar surface of a dielectric material, with e2.25, occupying the half-space z 2 0. Determine (a) The incidence angle i (e) The field E, of the reflected wave (d) The field E of the wave transmitted into the dielectric, (e) The average power density carried by the wave into the dielectric medium.(30 pts.) (b) The frequency of the wave. Hint: This incident wave is a mixture of parallel and...
Problem 6. Electromagnetic plane waves in a lossy medium The electric field of an electromagnetic plane wave traveling in a lossy medium can be written as where z is the distance, t is time, and fthe frequency. For f 1 GHz, it is found by measurement that the amplitude of the electric field is attenuated by a factor of 3 after the wave travels 100 m (i.e., to 1/3 of the amplitude at z-0 when it arrives at z- 100...
