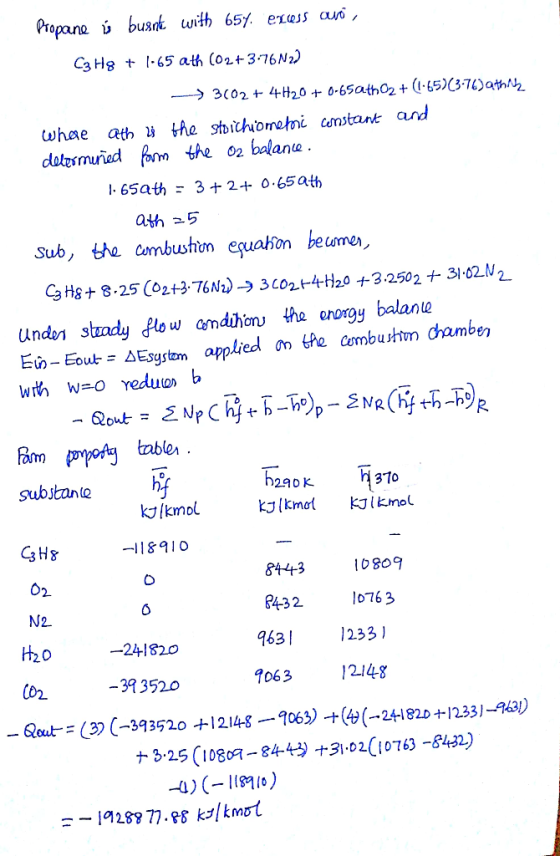

Propane fuel (C3H8) is burned in a space heater with 65 percent excess air. The fuel and air enter this heater steadily at 1 atm and 17°C, while the combustion products leave at 1 atm and 97°C. Calcu...
Methane gas is burned with 30 percent excess air. This fuel enters a steady-flow combustor at 0.9 atm and 25'C...
Methane gas is burned with 30 percent excess air. This fuel enters a steady-flow combustor at 0.9 atm and 25'C and is mixed with the air. The products of combustion leave this reactor at 0.9 atm and 1600 K. Determine the equilibrium composition of the products of combustion and the amount of heat released by this combustion in kJ/kmol methane. Use data from the tables. CH4 Combustion 25℃ CO, HO 1600 K 30%acess 25 C The amount of carbon dioxide...
Propane (C3H8) is burned with 38 percent excess air. Determine the mole fractions of each of...
Propane (C3H8) is burned with 38 percent excess air. Determine the mole fractions of each of the products. Also, calculate the mass of water in the products per unit mass of the fuel and the air-fuel ratio. Use data from the tables. , the mole fraction of H2O is , the mole fraction of O2 is , and the mole fraction of The mole fraction of CO2 is N2 is The mass of water in the products per unit mass...
Q4 Methane gas (CH) burns with 40%excess air, and products leave at 700 K.Assuming the fuel...
Q4 Methane gas (CH) burns with 40%excess air, and products leave at 700 K.Assuming the fuel and air enter the combustion chamber at 250 C and atmospheric pressure, determine (a) Air fuel ratio (b) the dew point of the products and (c) the heat transfer from the combustion process for 1 kmole of CH4 Substance hr, 700 K kJ/kmol he, 298 K kJ/kmol kJ/kmol CH4 02 N2 CO2 H2O -74,850 8.682 8,669 -393,520 9,364 -241,820 9,904 21,184 20,604 27,125 24,088...
Butane gas (C4H10) is burned with 120% of the theoretical air in a steady flow system. The fuel a...
Butane gas (C4H10) is burned with 120% of the theoretical air in a steady flow system. The fuel and air enter separately at 25°C and 1 atm. The reaction goes to completion and the products leave as a mixture at 1 atm and 300°C. The water in the products is a vapor. Determine a. The amount of heat transfer in kJ/kmol of fuel b. The entropy change for the reaction c. The entropy generation for the process
Butane gas (C4H10)...
1 kmol of gas Ethane is burned with 175 percent theoretical air in a steady flow...
1 kmol of gas Ethane is burned with 175 percent theoretical air in a steady flow combustion chamber. An analysis of the combustion gases reveals that all the hydrogen in the fuel burns to H2O but 95 percent of the Carbon burns to CO2 with the remaining 5 percent forming CO. Treating the air as dry air, determine; (a)The balanced combustion equation. (b)The air-fuel ratio. (c)The amount of heat transfer (in kJ/kg of fuel) from the combustion process if the...
Formul Question 2 (50 points): Propane gas and burns with 20% excess air entering (molar C, Hs) at 25 C.I atm enters a reactor operating at steady state at 25 C l atm of the carbon entering with...
Formul Question 2 (50 points): Propane gas and burns with 20% excess air entering (molar C, Hs) at 25 C.I atm enters a reactor operating at steady state at 25 C l atm of the carbon entering with the fuel, 94% s) appears in the products at CO2 and the rest as CO. Heat transfer from the reactor occurs te of 1.4 x 10° kJ per kmol or propane. Use your ideal gas tables to answer this question. ite the...
Liquid propane (C_3H_8) enters a steady-flow combustion chamber at 25 Degree C, and 6 atm at...
Liquid propane (C_3H_8) enters a steady-flow combustion chamber at 25 Degree C, and 6 atm at a rate of 0.8 kg/min. It is burned with 150 percent excess air that is compressed and preheated to 400 K and 6 atm before entering the combustion chamber. The products of the combustion enter a gas turbine at 1200 K and 6 tam and leave at 700 K and 1 atm. The adiabatic efficiency of the turbine is 80%. The combustion process is...
Propane burns completely with 150% excess air during a steady-flow combustion process. If both the reagents...
Propane burns completely with 150% excess air during a steady-flow combustion process. If both the reagents and the products are kept at 25 ° C and an atmosphere and the water in the products exists in liquid form, determine : to. A.The real balanced equation B. Heat transfer (kJ / kmol) C. Adiabatic flame temperature (K)
QUESTION 3 (25 MARKS In a power plant boiler, coal which has an ultimate analysis by...
QUESTION 3 (25 MARKS In a power plant boiler, coal which has an ultimate analysis by mass of 39.25 percent C, 6.93 percent H2, 41.11 percent 02, 0.72 percent N2, 0.79 percent S, and 11.20 percent Ash (non-combustibles) is burned steadily with 40% excess air. Assuming the combustion process as complete and treating the air as dry air, determine: (a) The balanced combustion equation for the combustion process. [6 Marks] (6) The Air-Fuel ratio [6 Marks) (c) The heat transfer...
A fuel gas consists of 75% butane (C4H10), 10% propane (C3H8) and 15% butene (C4H8) by...
A fuel gas consists of 75% butane (C4H10), 10% propane (C3H8) and 15% butene (C4H8) by volume. It is to be fed to the combustion chamber in 10% excess air at 25ºC, where it is completely burnt to carbon dioxide and water. The flue gases produced are to be used to generate 5 bar steam from water at 90ºC. net calorific value (MJm-3) at 25oC Butane (C4H10) = 111.7MJm-3, Butene (C4H8) = 105.2 MJm-3. Propane (C3H8) = 85.8 MJm-3. air...
Methane gas is burned with 30 percent excess air. This fuel enters a steady-flow combustor at 0.9 atm and 25'C and is mixed with the air. The products of combustion leave this reactor at 0.9 atm and 1600 K. Determine the equilibrium composition of the products of combustion and the amount of heat released by this combustion in kJ/kmol methane. Use data from the tables. CH4 Combustion 25℃ CO, HO 1600 K 30%acess 25 C The amount of carbon dioxide...
Propane (C3H8) is burned with 38 percent excess air. Determine the mole fractions of each of the products. Also, calculate the mass of water in the products per unit mass of the fuel and the air-fuel ratio. Use data from the tables. , the mole fraction of H2O is , the mole fraction of O2 is , and the mole fraction of The mole fraction of CO2 is N2 is The mass of water in the products per unit mass...
Q4 Methane gas (CH) burns with 40%excess air, and products leave at 700 K.Assuming the fuel and air enter the combustion chamber at 250 C and atmospheric pressure, determine (a) Air fuel ratio (b) the dew point of the products and (c) the heat transfer from the combustion process for 1 kmole of CH4 Substance hr, 700 K kJ/kmol he, 298 K kJ/kmol kJ/kmol CH4 02 N2 CO2 H2O -74,850 8.682 8,669 -393,520 9,364 -241,820 9,904 21,184 20,604 27,125 24,088...
Butane gas (C4H10) is burned with 120% of the theoretical air in a steady flow system. The fuel and air enter separately at 25°C and 1 atm. The reaction goes to completion and the products leave as a mixture at 1 atm and 300°C. The water in the products is a vapor. Determine a. The amount of heat transfer in kJ/kmol of fuel b. The entropy change for the reaction c. The entropy generation for the process
Butane gas (C4H10)...
Formul Question 2 (50 points): Propane gas and burns with 20% excess air entering (molar C, Hs) at 25 C.I atm enters a reactor operating at steady state at 25 C l atm of the carbon entering with the fuel, 94% s) appears in the products at CO2 and the rest as CO. Heat transfer from the reactor occurs te of 1.4 x 10° kJ per kmol or propane. Use your ideal gas tables to answer this question. ite the...
Liquid propane (C_3H_8) enters a steady-flow combustion chamber at 25 Degree C, and 6 atm at a rate of 0.8 kg/min. It is burned with 150 percent excess air that is compressed and preheated to 400 K and 6 atm before entering the combustion chamber. The products of the combustion enter a gas turbine at 1200 K and 6 tam and leave at 700 K and 1 atm. The adiabatic efficiency of the turbine is 80%. The combustion process is...
QUESTION 3 (25 MARKS In a power plant boiler, coal which has an ultimate analysis by mass of 39.25 percent C, 6.93 percent H2, 41.11 percent 02, 0.72 percent N2, 0.79 percent S, and 11.20 percent Ash (non-combustibles) is burned steadily with 40% excess air. Assuming the combustion process as complete and treating the air as dry air, determine: (a) The balanced combustion equation for the combustion process. [6 Marks] (6) The Air-Fuel ratio [6 Marks) (c) The heat transfer...
