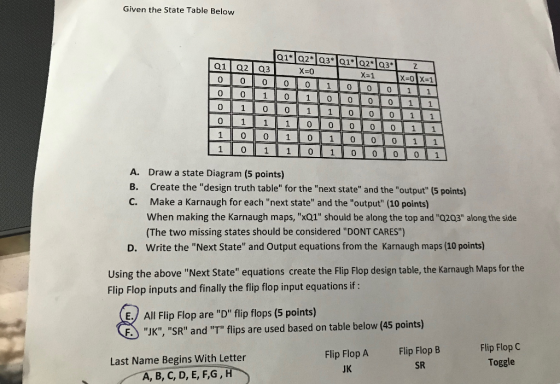

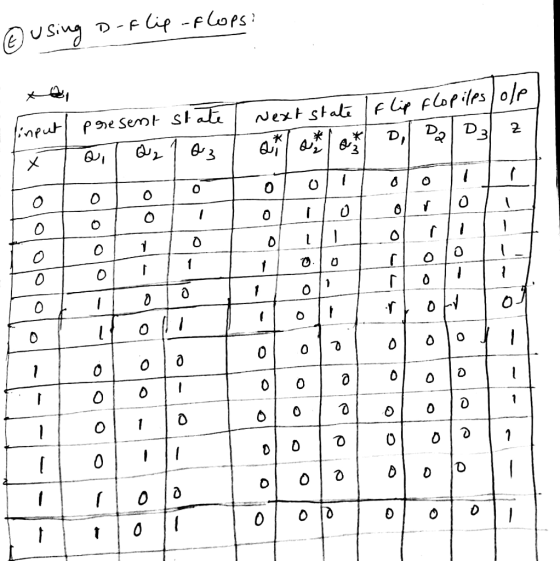

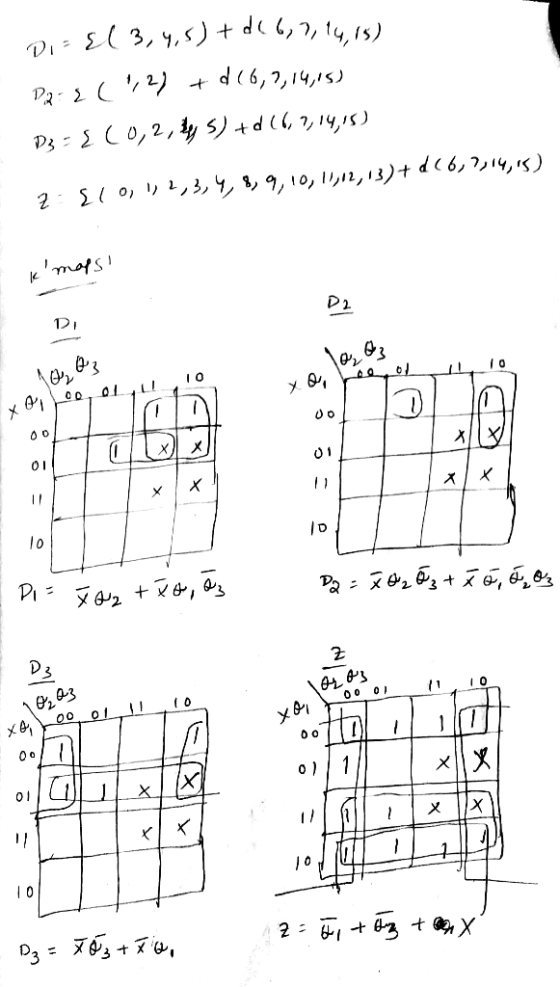

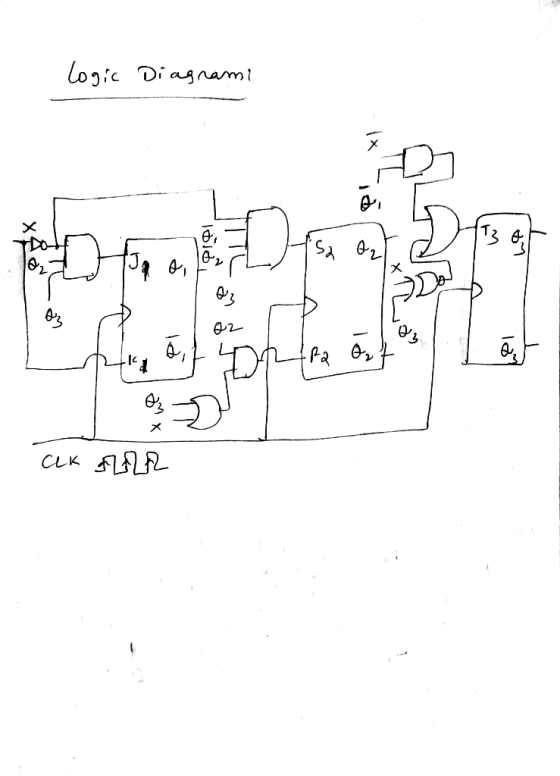

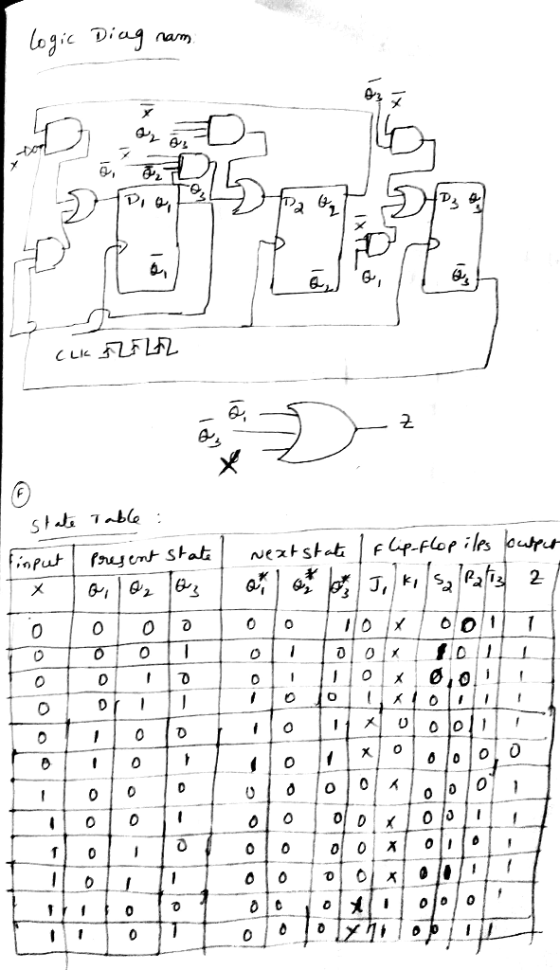

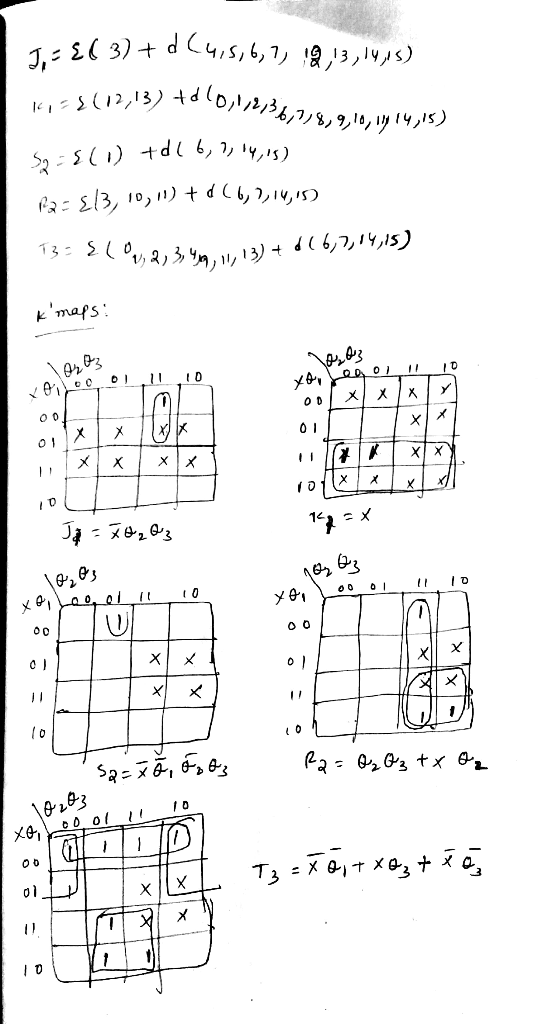

Please work on Part E & F Given the State Table Below Q1 Q2 Q3 X-1 X-0 X-1 10111loloi A. Draw a state Diagram (5 points) B. Create the "design truth table" for the "next state" an...
Given the State Table Below 01* 02 03 1 203 X-1 0 000 01 0 0 0 1 0 0 A. Draw a state Diagram (5 points) B. Create the "design truth table" for the "next state" and the "output" (5 points) C. Make a Karnaugh for each "next state" and the "output" (10 points) When making the Karnaugh maps, "xO1" should be along the top and "0203'" along the side (The two missing states should be considered "DONT CARES")...
Given the State Table Below 01 02 Q3 X-1 A. B. C. Draw a state Diagram (S points) Create the "design truth table" for the "next state" and the "output" (5 points) Make a Karnaugh for each "next state" and the "output" (10 points) When making the Karnaugh maps, "xQ1" should be along the top and "O203" along the side (The two missing states should be considered "DONT CARES") Write the "Next State" and Output equations from the Karnaugh maps...
Given the State Table Below ?" ?" X-1 AB C 0 0 0O01 0OI011 01 00 0IOI01 1 01 01OIO0 01 A. Draw a state Diagram. B. Create the "design truth table" for the "next state" and the "output" C. Make a Karnaugh for each "next state" and the "output" When making the Karnaugh maps, "xA" should be along the top and "BC" along the side (The two missing states should be considered "DONT CARES") D. Write the "Next State"...
1) Based on the sequential circuit and answer the following questions SOV a) Write equations for J, K, T, and Z in terms of the input X and the current state given by flip flop outputs QA, QB b) Based on these equations and the properties of JK and Toggle FF's fill out the state table CURRENT NEVT STATE OUTPUT QA QB X- O X=1 X-OX=1 QAQB QAQB 0 0 STATE NEXT STATE OUTPUT c) Based on the State table...
a 1 1 b с е f 1 1. Consider the following state table. Next State Present State Output y = 0 x=1 r = 0 x=1 g b d a 0 0 0 d b g 0 0 0 b g 0 g d 0 (a) (4 points) Draw a state diagram based on the given state table. 1 e f a f 1 e 1 (b) (4 points) Obtain a reduced state table and draw the reduced state...
Q3. Consider the circuit shown below: Q1 Jo 0 Ko clock (a) Create the state table that shows the present-states, input x, JK flip-flops inputs, the next-states and the output y 30% (b) Create the state diagram, specify what type of state machine (Mealy or Moore) this circuit is and explain why 20%
Design a 5-bit binary counter using JK flip flops. Draw the flip-flop circuit diagram, the state graph, the timing diagram, the truth table (with clk pulse) and the state table (with present and next states).
Design a modulus-5 synchronous counter with D-type flip flops. Assume the next state for unused states are 000 rather than don't cares. Set an output Z to high at the terminal count. (a) Determine state transition table. (b) Determine input equations for the flip flops and output equations. (c) Sketch the circuit diagram.
please, Teacher, help me with this question step by step please
and explain everything, my Teacher?
EENG 250 Lab 4 M&N Flip Flop Intorduction: There are four types of latches or flip flop designs that are commonly used in designs. However it is always possible to create a custom design. For example take the JK Flip Flop. It can be built using a D Flip Flop. This can be done using state diagram design processes. As shown in the example...
A combination circuit is specified by the following Boolean functions listed below. h(a, b, c) = b,c' + a'c Implement the circuit with a 3x8 decoder. Provide truth table and drawing the logic/circuit diagram. Use the block diagram for the decoder provided in Figure A4 in supplements. Please label the inputs and outputs clearly. Note: use single 3x8 decoder Question 2 (15 points] A priority encoder is an encoder circuit that includes the Truth Table of a priority function. The...
