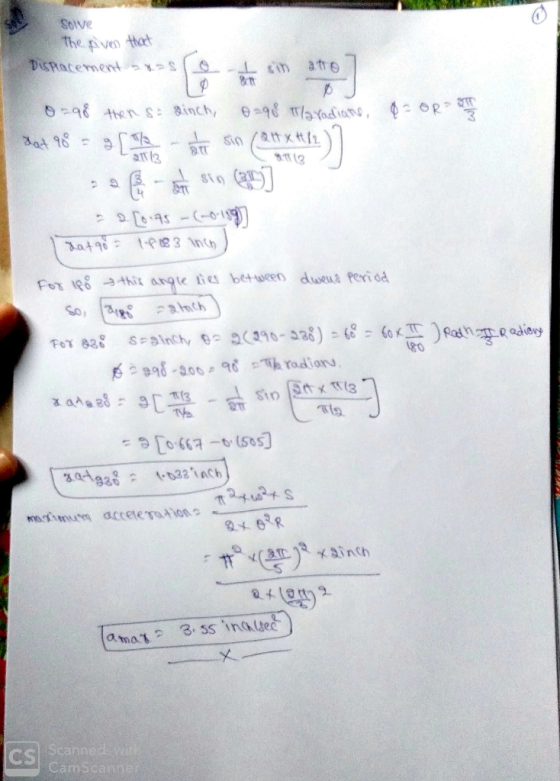

1. (40 points) A double-dwell cam is to move a follower from 0 to 2" in 120°, dwell for 80°, fall in 90 and dwell for the remainder. The total cycle is 5 seconds. Using cycloidal motion for t...
cam design use polynomail 8-46 Design a double-dwell cam to move a follower from 0 to 50 mm in 75, dwell for 75° 4fall 50 mm in 75°, and dwell for the remainder. The total cycle must take 5 s. Use...
cam design
use polynomail
8-46 Design a double-dwell cam to move a follower from 0 to 50 mm in 75, dwell for 75° 4fall 50 mm in 75°, and dwell for the remainder. The total cycle must take 5 s. Use a 4-5-6-7 polynomial function for rise and fall and plot the s v a j diagrams.
8-46 Design a double-dwell cam to move a follower from 0 to 50 mm in 75, dwell for 75° 4fall 50 mm in...
A translating cam-follower is to be designed for a Rise-Dwell-Fall-Dwell (RDFD) application in which vibrations must be considered
A translating cam-follower is to be designed for a Rise-Dwell-Fall-Dwell (RDFD) application in which vibrations must be considered. The cam is to move the follower from 0 to 35 mm in 70°, dwell for 100, fall back to 0 mm in 80°, and dwell for the remainder of the cycle. In addition, the cam must rotate at an angular velocity of 60 RPM. The position (s), velocity (v), and acceleration (a) curves during the rise period are defined by the...
Design a rise-fall-dwell cam-follower motion profile that will rise from 0 to 7 mm in 0.5...
Design a rise-fall-dwell cam-follower motion profile that will rise from 0 to 7 mm in 0.5 seconds, then fall for 0.5 seconds back to 0 mm, and then dwell for 1 second. Note that this produces a symmetric rise-fall curve. There should be no overshoot, and the motion should be relatively smooth. Your final follower motion profile s(θ) should be in terms of cam angle θ.
Cam Design ProblemDesign a double-dwell cam to move a follower (roller-type) from 0 to 150 mm...
Cam Design ProblemDesign a double-dwell cam to move a follower (roller-type) from 0 to 150 mm in 80◦, dwell for 90◦, fall 150 mm in 80◦, and dwell for the reminder of the cycle. The total cam cycle takes 10 sec. Consider an application in which vibrations must be minimized. Assume that the pitch radius, Rp = 500 mm, the cam-follower has zero eccentricity, ε = 0, and the roller raduis is Rf =50 mm. Any other parameters may be...
2 (30 p points) A follower rises through a total displacement of 6 inches with full rise cycloida...
2 (30 p points) A follower rises through a total displacement of 6 inches with full rise cycloidal motion in 130 of cam rotation and then dwells at 6 inches for 90. Then the follower returns to the zero position with full fall cycloidal motion in 90 of cam rotation and finally dwells for S0 before repeating the cycle. The cam rotates at a angular velocity of 10 rpm cew and angular acceleration of 3 rad/sec2 cw. 2π o 5...
to describe displacement diagram of a slow-motion plate cam Can angle e Output Motion Lift (in) (degree) Before 90 90-180 80°-270 Dwell Quadratic Rise Quadratic Fall Dwell 0 After 270 0 to d...
to describe displacement diagram of a slow-motion plate cam Can angle e Output Motion Lift (in) (degree) Before 90 90-180 80°-270 Dwell Quadratic Rise Quadratic Fall Dwell 0 After 270 0
to describe displacement diagram of a slow-motion plate cam Can angle e Output Motion Lift (in) (degree) Before 90 90-180 80°-270 Dwell Quadratic Rise Quadratic Fall Dwell 0 After 270 0
cam design
use polynomail
8-46 Design a double-dwell cam to move a follower from 0 to 50 mm in 75, dwell for 75° 4fall 50 mm in 75°, and dwell for the remainder. The total cycle must take 5 s. Use a 4-5-6-7 polynomial function for rise and fall and plot the s v a j diagrams.
8-46 Design a double-dwell cam to move a follower from 0 to 50 mm in 75, dwell for 75° 4fall 50 mm in...
2 (30 p points) A follower rises through a total displacement of 6 inches with full rise cycloidal motion in 130 of cam rotation and then dwells at 6 inches for 90. Then the follower returns to the zero position with full fall cycloidal motion in 90 of cam rotation and finally dwells for S0 before repeating the cycle. The cam rotates at a angular velocity of 10 rpm cew and angular acceleration of 3 rad/sec2 cw. 2π o 5...
to describe displacement diagram of a slow-motion plate cam Can angle e Output Motion Lift (in) (degree) Before 90 90-180 80°-270 Dwell Quadratic Rise Quadratic Fall Dwell 0 After 270 0
to describe displacement diagram of a slow-motion plate cam Can angle e Output Motion Lift (in) (degree) Before 90 90-180 80°-270 Dwell Quadratic Rise Quadratic Fall Dwell 0 After 270 0
