Determine the location x of the centroid C of the shaded area that is part of a circle having a radius r = 0.5 m . Take a : 40 . (Figure 1) Express your answer to three significant figures and inclu...

Question

Question

Determine the location x of the centroid C of the shaded area that is part of a circle having a radius r = 0.5 m . Take a : 4

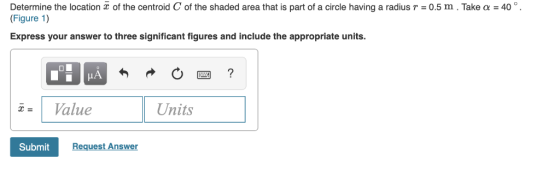

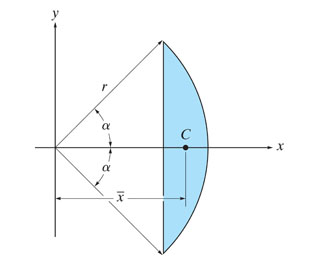

Determine the location x of the centroid C of the shaded area that is part of a circle having a radius r = 0.5 m . Take a : 40 . (Figure 1) Express your answer to three significant figures and include the appropriate units. Value Units Submit Request Answer

math calculus

Add a comment Improve this question Transcribed image text

Answer 1

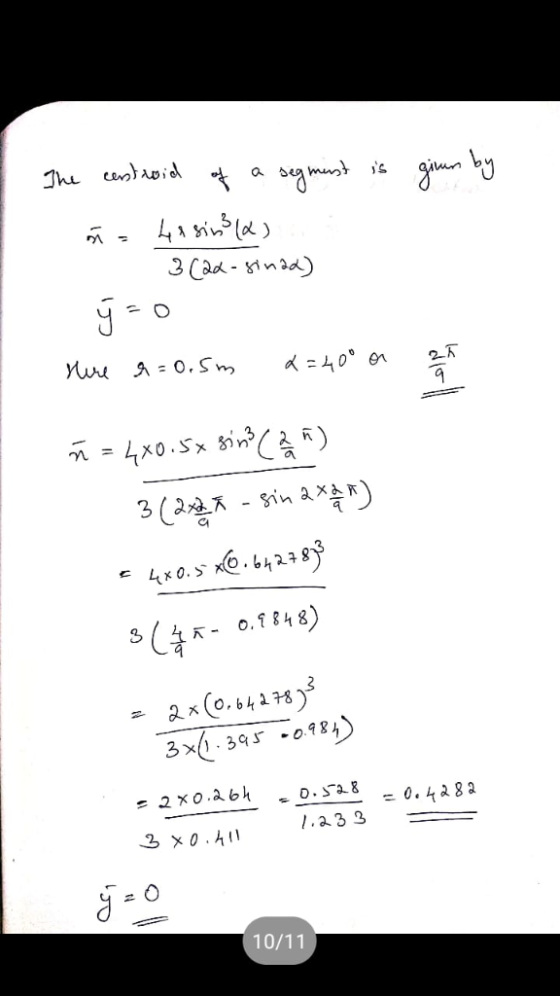

Answer #1

qリ s( к- о.fg48) x0.393-018 2xo.abh D.Sa 8-0.4282 3 xo.h do
