Homework Answers
![80 158 214 29319 29 T18188 233 400 | 수00 | 400 |400 |400 | 400 8 GT9 CRA. 1400 | 수5] | 수81 | 496 |491 |486 h3 323 2 212 16T b](http://img.homeworklib.com/images/2591f74e-12af-443b-962c-56f47951f530.png?x-oss-process=image/resize,w_560)
Add Answer to:

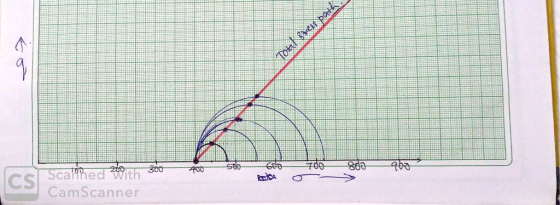

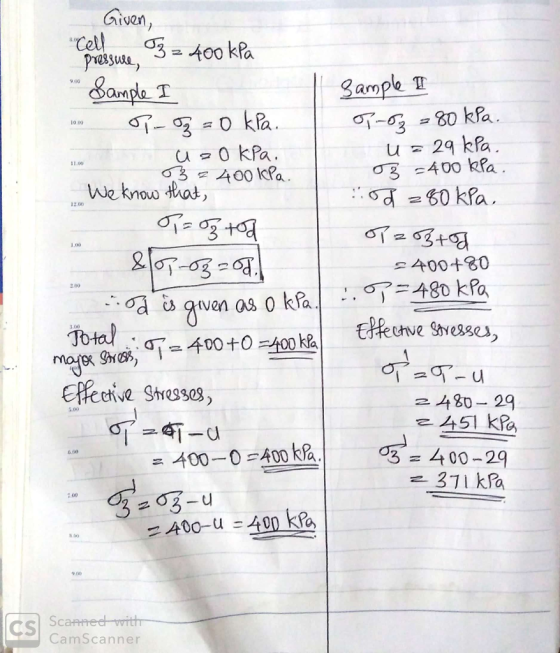

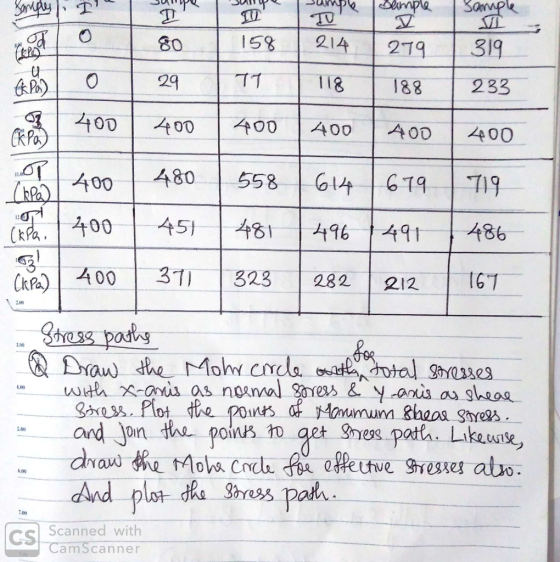

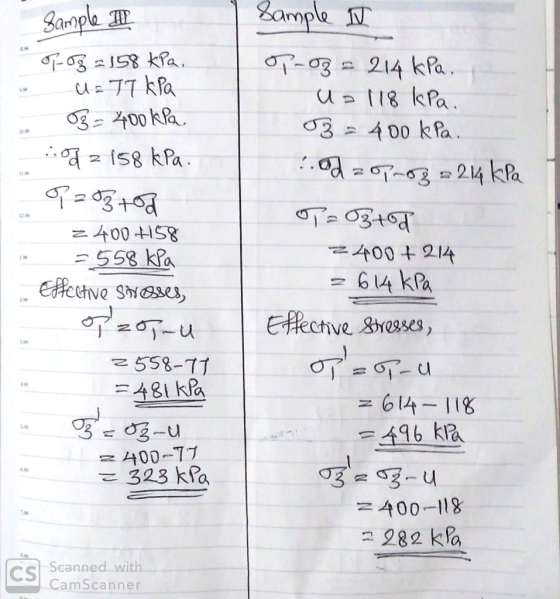

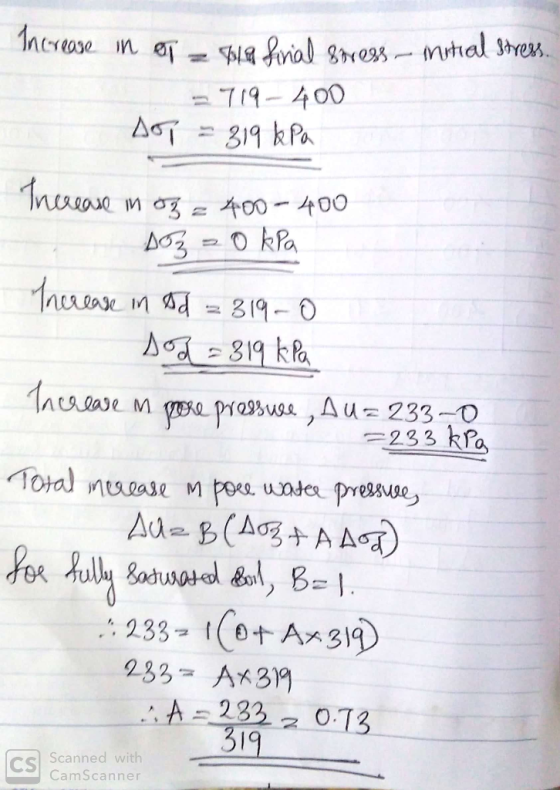

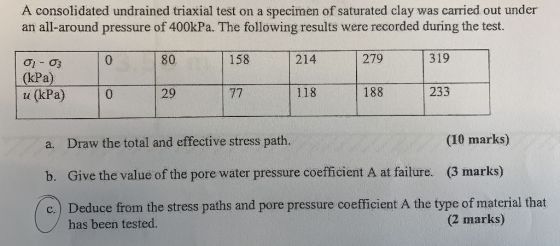

A consolidated undrained triaxial test on a specimen of saturated clay was carried out under an all-around pressure of 400kPa. The following results were recorded during the test. 319 158 279 80 214...
Q3) A saturated clay specimen was undergone a consolidated undrained triaxial test with all round...
Q3) A saturated clay specimen was undergone a consolidated undrained triaxial test with all round applied pressure of 600 kN/m2. If consolidation took place against the back pressure of 200 kN/m2, draw the stress paths and calculate the value of the pore pressure coefficient A at failure. 20 Marks] 279 61-63 (kN/m2) 80 229 158 277 319 433 214 318 388
Q3) A saturated clay specimen was undergone a consolidated undrained triaxial test with all round applied pressure of 600...
A consolidated undrained (CU) triaxial compression test (TXC) was conducted on a specimen of saturated clay....
A consolidated undrained (CU) triaxial compression test (TXC) was conducted on a specimen of saturated clay. The specimen was isotropically consolidated to a total cell pressure, σcell of 400 kPa. The backpressure was u0 = 100 kPa. At failure, the total pore water pressure was u = 90 kPa and the deviator stress was (σ1 − σ3)f = 526 kPa. Determine: a. The principal effective stresses, σ1′ and σ3′, at failure b. The friction angle, φ′ (secant method). c. The...
Consolidated-undrained triaxial tests (with pore pressure measurem on a fully saturated clay. The results are as...
Consolidated-undrained triaxial tests (with pore pressure measurem on a fully saturated clay. The results are as follows: 03 (kPa) 150 300 450 600 q (kPa) 103 202 305 410 u (kPa) 82 169 252 331 Calculate the effective shear strength parameters, c' and '.
2. A consolidated undrained triaxial test, in which pore pressure measurements were made, was carried out...
2. A consolidated undrained triaxial test, in which pore pressure measurements were made, was carried out on a saturated soil with the following results. Given that the initial diameter of the sample was 38 mm in all three cases, determine the values of cohesion and angle of internal friction with respect to (a) total stresses (c and o). (b) effective stresses (c' and o'). The minor and major principal stresses are calculated and presented in the table below (You are...
soil mechanics will rate if correct 13. A consolidated, undrained (CU) Triaxial test was performed on...
soil mechanics
will rate if correct
13. A consolidated, undrained (CU) Triaxial test was performed on a normally consolidated, saturated clay. The minor principal effective stress at the end of consolidation phase, c'3c was 100 kPa. The deviatoric stress, Aod, at failure was 60 kPa. The excess pore pressure at failure, Au was 45 kPa. What is the effective friction angle, "? (a) 21 degrees (6) 26 degrees (e) 33 degrees 14. A consolidated, undrained (CU) Triaxial test was performed...
4. A Consolidated-Undrained Triaxial test on an over consolidated clay yielded the following results: 100 Cell...
4. A Consolidated-Undrained Triaxial test on an over consolidated clay yielded the following results: 100 Cell pressure (kNm2) 250 400 340 410 474 Aut (kN/m2) -42 64 (a) Determine the effective stress strength parameters (C, and ф') for the clay
2.If an additional CU triaxial test with pore pressure measurement is to be performed using a...
2.If an additional CU triaxial test with pore pressure
measurement is to be performed using a ?3 of 250 kPa on a specimen
identical to those in last Problem , estimate the deviator stress
(?d) and pore pressure (u) of this additional test at failure. What
would potentially be orientation of the failure plane in the
specimen?
The results below were obtained at failure in a series of consolidated-undrained (CU) triaxial tests, with pore pressure measurement, on specimens of fully...
Problem 3: A consolidated-drained triaxial test is carried out on a sand specimen that is subjected...
Problem 3: A consolidated-drained triaxial test is carried out on a sand specimen that is subjected to 80 kN/m2 confining pressure. The vertical deviator stress was increased slowly such that there is no built-up of pore water pressure within the specimen. The specimen failed when the addition axial stress reached 240 kN/m2. Find the friction angle of the sand. If another identical sand specimen was subjected to 150 kN/m? confining pressure, what would be the deviator stress at failure.
A CU triaxial test was carried out on a silty clay that was isotropically consolidated using a cell pressure of 125 kPa. The following data were obtained: Axial load Axial strain, s, (6) (kPa) Au...
A CU triaxial test was carried out on a silty clay that was isotropically consolidated using a cell pressure of 125 kPa. The following data were obtained: Axial load Axial strain, s, (6) (kPa) Au (kPa) 5.5 11.0 24.5 28.5 35.0 50.5 85.0 105.0 120.8 0.05 0.12 0.29 0.38 0.56 1.08 2.43 4.02 9.15 4.0 8.6 19.1 29.3 34.8 41.0 49.7 55.8 9.0 (a) Plot the deviatoric stress against axial strain and excess porewater pressure against axial strain. (b) Determine...
The following results were obtained from an undrained shear box test carried out on a set...
The following results were obtained from an undrained shear box test carried out on a set of undisturbed soil samples. 0.2 0.8 Normal Load (N) Strain (%) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 0 21 46 70 89 107 121 131 136 138 138 137 136 0.4 Shearing force (N) 0 33 72 110 139 164 180 192 201 210 217 224 230 234 237 236 0 45...
Q3) A saturated clay specimen was undergone a consolidated undrained triaxial test with all round applied pressure of 600 kN/m2. If consolidation took place against the back pressure of 200 kN/m2, draw the stress paths and calculate the value of the pore pressure coefficient A at failure. 20 Marks] 279 61-63 (kN/m2) 80 229 158 277 319 433 214 318 388
Q3) A saturated clay specimen was undergone a consolidated undrained triaxial test with all round applied pressure of 600...
Consolidated-undrained triaxial tests (with pore pressure measurem on a fully saturated clay. The results are as follows: 03 (kPa) 150 300 450 600 q (kPa) 103 202 305 410 u (kPa) 82 169 252 331 Calculate the effective shear strength parameters, c' and '.
2. A consolidated undrained triaxial test, in which pore pressure measurements were made, was carried out on a saturated soil with the following results. Given that the initial diameter of the sample was 38 mm in all three cases, determine the values of cohesion and angle of internal friction with respect to (a) total stresses (c and o). (b) effective stresses (c' and o'). The minor and major principal stresses are calculated and presented in the table below (You are...
soil mechanics
will rate if correct
13. A consolidated, undrained (CU) Triaxial test was performed on a normally consolidated, saturated clay. The minor principal effective stress at the end of consolidation phase, c'3c was 100 kPa. The deviatoric stress, Aod, at failure was 60 kPa. The excess pore pressure at failure, Au was 45 kPa. What is the effective friction angle, "? (a) 21 degrees (6) 26 degrees (e) 33 degrees 14. A consolidated, undrained (CU) Triaxial test was performed...
4. A Consolidated-Undrained Triaxial test on an over consolidated clay yielded the following results: 100 Cell pressure (kNm2) 250 400 340 410 474 Aut (kN/m2) -42 64 (a) Determine the effective stress strength parameters (C, and ф') for the clay
2.If an additional CU triaxial test with pore pressure
measurement is to be performed using a ?3 of 250 kPa on a specimen
identical to those in last Problem , estimate the deviator stress
(?d) and pore pressure (u) of this additional test at failure. What
would potentially be orientation of the failure plane in the
specimen?
The results below were obtained at failure in a series of consolidated-undrained (CU) triaxial tests, with pore pressure measurement, on specimens of fully...
Problem 3: A consolidated-drained triaxial test is carried out on a sand specimen that is subjected to 80 kN/m2 confining pressure. The vertical deviator stress was increased slowly such that there is no built-up of pore water pressure within the specimen. The specimen failed when the addition axial stress reached 240 kN/m2. Find the friction angle of the sand. If another identical sand specimen was subjected to 150 kN/m? confining pressure, what would be the deviator stress at failure.
A CU triaxial test was carried out on a silty clay that was isotropically consolidated using a cell pressure of 125 kPa. The following data were obtained: Axial load Axial strain, s, (6) (kPa) Au (kPa) 5.5 11.0 24.5 28.5 35.0 50.5 85.0 105.0 120.8 0.05 0.12 0.29 0.38 0.56 1.08 2.43 4.02 9.15 4.0 8.6 19.1 29.3 34.8 41.0 49.7 55.8 9.0 (a) Plot the deviatoric stress against axial strain and excess porewater pressure against axial strain. (b) Determine...
The following results were obtained from an undrained shear box test carried out on a set of undisturbed soil samples. 0.2 0.8 Normal Load (N) Strain (%) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 0 21 46 70 89 107 121 131 136 138 138 137 136 0.4 Shearing force (N) 0 33 72 110 139 164 180 192 201 210 217 224 230 234 237 236 0 45...
