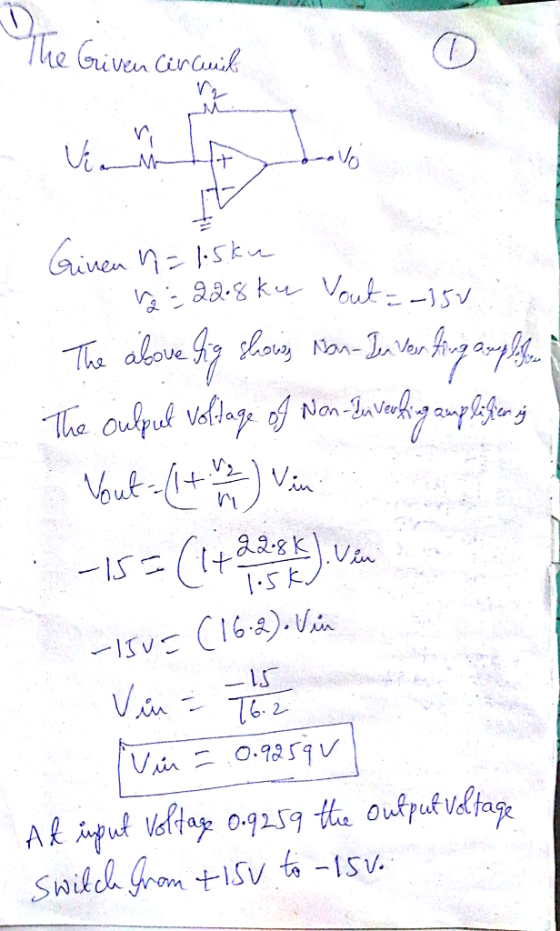

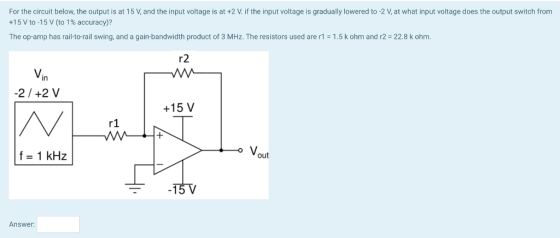

For the circuit below, the output is at 15 V and the input voltage is at +2 V if the input voltage is gradually lowered to -2 V, at what input voltage does the output switch from +15 V to-15 V (to 1...

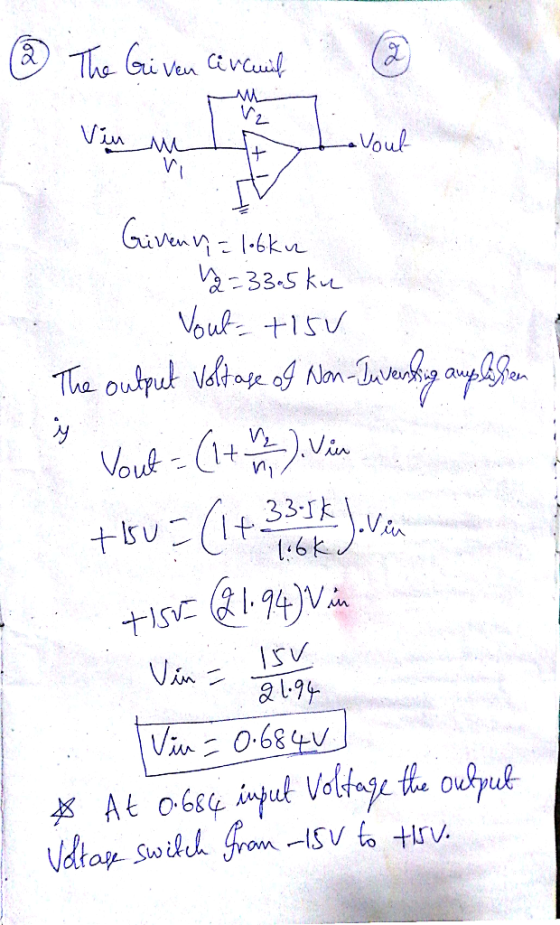

For the circuit below, the output is at-15 V, and the input voltage is at +2 V if the input voltage is gradually lowered to -2 V, at what input voltage does the output switch from-15 V to +15 V (to 1 % accuracy)? The op-amp has rail-to-rail swing, and a gain-bandwidth product of 3 MHz. The resistors used are r1 0.6 k ohm and r2 49.8 k ohm. r2 Vin 2/+2 V +15 V r1 out f-1 kHz 15...
For the circuit below, the output is at -15 V, and the input voltage is at -2 V. if the input voltage is gradually raised to 2 V, at what input voltage does the output switch from-15 V to +15 V (to 1% accuracy)? - The op-amp has rail-to-rail swing, and a gain-bandwidth product of 3 MHz. The resistors used are r1 1.3 k ohm and r2 37.7 k ohm r2 Vin 2/+2 V +15 V r1 o out f...
For the circuit below, calculate the time constant that defines the oscillation frequency of this circuit (i.e. the half period of the resulting oscillation T-1/(2fosc)), in seconds, to 1% accuracy. The op-amp has rail-to-rail swing, and a gain-bandwidth product of 3 MHz. The resistors used are r 3.0 k ohm, and the capacitor C 127.7 nF +15 V Vout 15 V Answer:
For the circuit below, calculate the time constant that defines the oscillation frequency of this circuit (i.e. the...
1. Find the ratio of the output voltage to the input voltage, Vo/Vin, in the circuit shown. State your assumptions in using the ideal op-amp model. 15 k2 Vin 2. Find the output voltage Vo in the circuit shown assuming an ideal op-amp. State your assumptions in using the ideal op-amp model 15 k12 Vo . Find the voltage Vx and the output voltage Vo in the circuit shown assuming ideal op-amp 3 k2 1 V 6 kn 12 k2
For the amplifier circuits in Figs.3 and 7:
a. Write an expression for the output voltage, vo, in terms of
the resistor symbols and the input voltage, vin.
---For the first circuit (Fig. 3), the feedback resistor is the
series combination of R2 and R3. Use both of these resistor symbols
in your expression.
-- For circuit 2 (Fig. 7), assume that vin = 5V and ignore
potentiometer R1 and C3.
b. Using resistor values and input voltage amplitudes, calculate...
c) In estimating DC imperfections (input offset voltage, input offset current and the inverting amplifier with nominal gain of -100 using 1 current) of an op-map, an and 10MQ resistors is implemented using the op-amp as shown in Fig 2(a) below R2 10MQ R 100k Vi Vo Figure 2(a): Inverting amplifier Measurements are conducted on the output voltage of the inverting amplifier under the following conditions: (i) the input (V) is open circuited and the output voltage is found to...
a. (10 pts) Implement the voltage amplifier shown below using an ideal op amp circuit. You have one op amp available for this circuit, and a range of resistors with values from 1 kΩ to 100 ka. Draw the schematic of your op amp circuit, labeling resistor values. Make sure the gain, input resistance, and output resistance of your circuit matches the model in the schematic. R=012 *100v, RL 100 b. (5 pts) Your amplifier circuit should have a frequency...
Inverting Amplifier Figure 4.2 shows the fundamental configuration of Op-Amp in which it is used as an inverting amplifier. In this configuration the ratio, R2/R1 completely controls the effective gain of the amplifier and it can be verified that the output voltage is equal to Vo = - (R2/R1)Vin R2 100K Q-10V R1 Vinow 20K 1 2 7 V Vo 3 -10v Figure 4.2 Part 1 - Inverting Amp: Procedure 1. Construct the circuit of figure 4.2 using Op-Amp IC...
I need help to find the values!
gures below (a-d), determine the values for R1, R2, voltage or type of op-amp based on the information listed. You may ors with an open circuit, short circuit, or values 1kn SRS1Mn. gain, voltage, a) 76 k2 Type: Non-Inverting Vout max R1 (based on Voutmas) 0.3V Type: Inverting, Av =-100 V/V Vin- b) R1 12V R1 12V Type: Buffer Vout- R1 =- c) +10 V R1 ーVout -10 V Type: Av- IV R2...
2. (4+6) Determine the output voltage Vout for the circuit below assuming the VCVS gain a. b. (4+6) Repeat part (a) with the op amp open loop gain A = 100. R1 R2 10K ·out 2K R3 1K 100 4
2. (4+6) Determine the output voltage Vout for the circuit below assuming the VCVS gain a. b. (4+6) Repeat part (a) with the op amp open loop gain A = 100. R1 R2 10K ·out 2K R3 1K 100 4
