For the circuit shown below: (a) Calculate the uild the circuit and use the oscilloscope to measure the Vout at t 2t and take a snapshot of the screen output at t = 2t (τ is the time constant) an...

Question

Question

For the circuit shown below: (a) Calculate the uild the circuit and use the oscilloscope to measure the Vout at t 2t and take

engineering Electrical-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

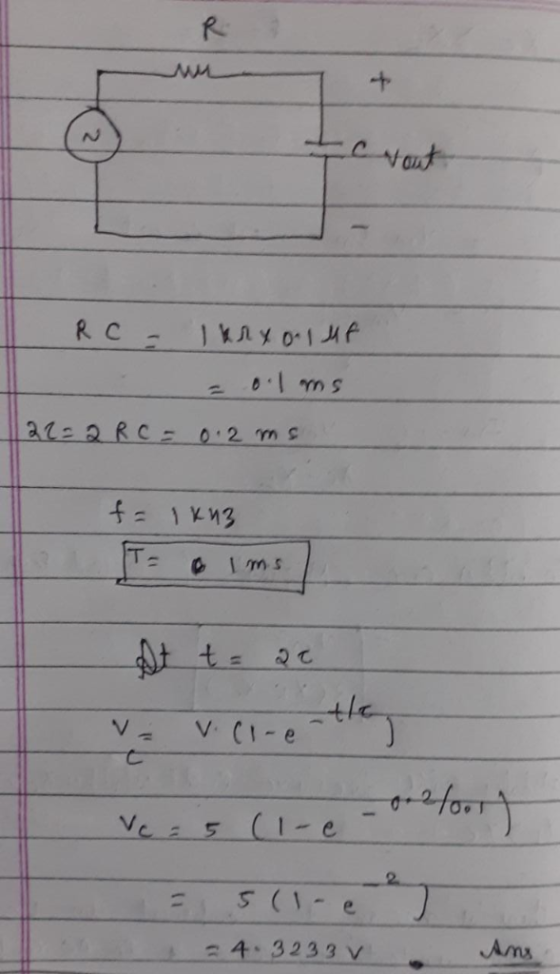

rt F s (I e 4-3233 V

Add a comment

Answer 2

Similar Homework Help Questions

For the circuit shown below: (a) Calculate the output at t = 2τ (τ is the time constant) and show your work. (b) Build the circuit and use the oscilloscope to measure the Vout at t = 2τ and take a...

For the circuit shown below: (a) Calculate the output at t = 2τ (τ is the time constant) and show your work. (b) Build the circuit and use the oscilloscope to measure the Vout at t = 2τ and take a snapshot of the screen For the circuit shown below: (a) Calculate the output at t = 2τ (τ is the time constant) and show your work. (b) Build the circuit and use the oscilloscope to measure the Vout at...
5. For the CB amplifier circuit as shown below, calculate the output voltage Vout with an...

5. For the CB amplifier circuit as shown below, calculate the output voltage Vout with an input of 2 mV from the generator. R 47 4F 1 uF M Vout 500 3.3 kg 10 kg SRL 10 kg 2mpP 47 FR 2 kg TI
(a) Sketch the output waveform Vout(t) of the circuit shown in Figure P3.42(a) when Vin = 9sin1000t V

(a) Sketch the output waveform Vout(t) of the circuit shown in Figure P3.42(a) when Vin = 9sin1000t V. Show the maximum and minimum values on the sketch and the equation for the curves at different time intervals. Assume that the diodes are ideal. (b) Repeat part (a) for the circuit of Figure P3.42(b).

Name: 1. Calculate the time constant of the circuit shown below: nput Output 1N914 C3 R1...

Name: 1. Calculate the time constant of the circuit shown below: nput Output 1N914 C3 R1 Time constant = 2. For the amplifier shown below, RI 2 KQ, R2 20 K2, calculate the gain Vo/Vi. R2 R1 Vo OPAMP
Use the circuit diagram as shown in Figure A below to conduct the experiment and answer...

Use the circuit diagram as shown in Figure A below to conduct the experiment and answer the questions 1 to 6. VCC VCC 15V 15V U2 U1 + R3 + 741 Voutt Vouth 6 R1 741 1.0kΩ 2.2k VEE VEE -15V Vin= 0.75 VIP-pl @ 2 kHz -15V R2 R4 TH 4.7ΚΩ 10kΩ Figure A Question 3 3 pts Focus on Op-amp U1 ("Both op-amps have to be completely connected as shown in Figure A) • Use myDAQ's oscilloscope to...
In the circuit shown, the capacitor is initially uncharged. At time t = 0, switch S is closed. If tau denotes the time constant, the approximate current through the 3Ω resistor when t = τ/10 is

In the circuit shown, the capacitor is initially uncharged. At time t = 0, switch S is closed. If tau denotes the time constant, the approximate current through the 3Ω resistor when t = τ/10 is 0.38A 0.50A 0.75A 1.0A 1.5A

For the circuit below, calculate the time constant that defines the oscillation frequency of this circuit (i.e. the half period of the resulting oscillation T-1/(2fosc)), in seconds, to 1% accuracy....

For the circuit below, calculate the time constant that defines the oscillation frequency of this circuit (i.e. the half period of the resulting oscillation T-1/(2fosc)), in seconds, to 1% accuracy. The op-amp has rail-to-rail swing, and a gain-bandwidth product of 3 MHz. The resistors used are r 3.0 k ohm, and the capacitor C 127.7 nF +15 V Vout 15 V Answer: For the circuit below, calculate the time constant that defines the oscillation frequency of this circuit (i.e. the...
The graphs below show a snapshot of a wave on a string at time t =...

The graphs below show a snapshot of a wave on a string at time t = 0.00 ms on the left and the history of the piece of string at position x = 0.00 m on the right. The linear mass density of the string is 0.784 t/m. Is this wave moving to the right or to the left? Explain briefly. Assuming the wave may be represented mathematically by the equation y = A sin (kx plusminus omega t +...
1. Calculate the RC time constant of the circuit in Fig. 1 using equation (1) 2....

1. Calculate the RC time constant of the circuit in Fig. 1 using equation (1) 2. Derive expressions of Vout(t) for circuits in Figs. 1 and 2 3. Sketch your derived results for Vout(t), clearly labeling your initial voltages and time constants 10 k22 M + + Vin 0.1 uf Vout Fig. 1. RC circuit 0.1 uf + + Vin 10 k2 Vout Fig. 2. RC circuit.

1) An input step voltage Vin(t)=10 u(t) Volt is applied to the circuit shown below. The...

1) An input step voltage Vin(t)=10 u(t) Volt is applied to the circuit shown below. The initial voltage on the capacitor is zero. Using Laplace transform techniques, calculate the resulting output voltage Vout(t). R1 R2 Vout 2000 Vin c1 1000 1uF R3 1000

For the circuit shown below: (a) Calculate the uild the circuit and use the oscilloscope to measure the Vout at t 2t and take a snapshot of the screen output at t = 2t (τ is the time constant) an...
