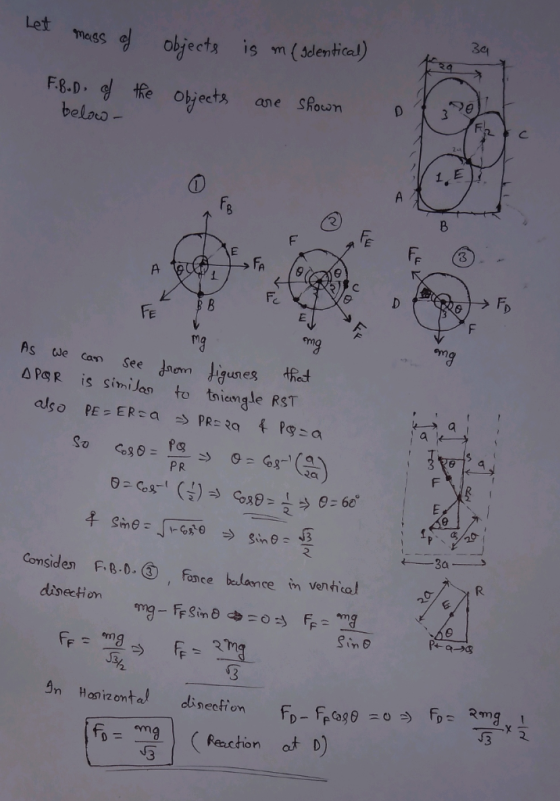

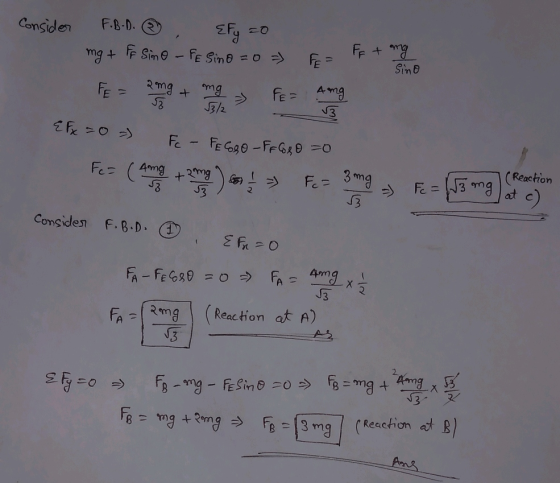

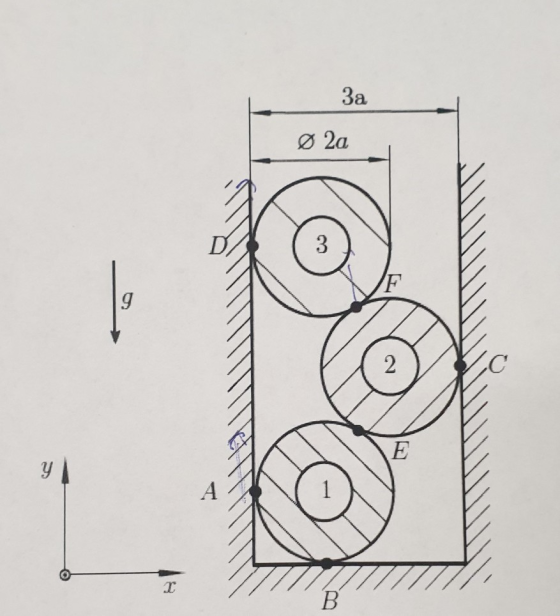

calculate the forces on the Wall at points A B C D
Homework Answers
)calculate he reaction forces at points 8 and C 2 calculate the stress is the rod...
)calculate he reaction forces at points 8 and C 2 calculate the stress is the rod at cross section D The rod bs connected by pins to the wall at A and to the frame at B eume the Lshaped frame and the rod have negigible mass 3 m- eter 20 mm 3.5 m 8000 N
Calculate the moment about a point C caused by the forces acting at the points A&B...
Calculate the moment about a point C caused by the forces acting
at the points A&B respectively (engineering)?
Can somebody please help me with these 2 problems? Thanks so
much!!
Calculate the moment about a point CC – 4, 5, 7) ft caused by the forces F1 = – 4i + 4% – 8k lb and F, = – 3i – 7j + 7k lb acting at the points AC – 2, – 4, – 1) ft and B(2, 2,...
1. Find forces at points A, B, C, D and E of the following structure. Make...
1. Find forces at points A, B, C, D and E of the following structure. Make sure you write your answers in a table. (20 pts) 4 kN A 0.2 m 2 kN-m B D 0.2 m C E 0.2 m -0.2 m
1. Find forces at points A, B, C, D and E of the following structure. Make...
1. Find forces at points A, B, C, D and E of the following structure. Make sure you write your answers in a table. (20 pts) 4 KN A 0.2 m 2 kN-m B D 0.2 m -0.2 m ---0.2 m -
1. Find forces at points A, B, C, D and E of the following structure. Make...
1. Find forces at points A, B, C, D and E of the following structure. Make sure you write your answers in a table. (20 pts) 4 kN A 0.2 m D 2 kN-m B 0.2 m E -0.2 m 40.2 m -
(4) The forces F 2 -3 + 2 k. ,F = - 31 + 2 -k. F- 1 +-k that act at the points A ( 3.0,0), B(O, 2,0),C (0,0,1) respecti...
(4) The forces F 2 -3 + 2 k. ,F = - 31 + 2 -k. F- 1 +-k that act at the points A ( 3.0,0), B(O, 2,0),C (0,0,1) respectively. are in equilibrium b equivalent to one forces F = F + F2+ F equivalent to a couple of moment - 31 - 5-3 C equivalent to two parallel and unequal forces
(4) The forces F 2 -3 + 2 k. ,F = - 31 + 2 -k. F-...
Problem #4 . The retaining wall shown is subjected to the vertical forces given. Calculate the...
Problem #4 . The retaining wall shown is subjected to the vertical forces given. Calculate the magnitude of the resultant force and determine its location with respect to point A in the middle of the footing. 2 Pt
Consider the following concrete retaining wall: 1.5ft La = 12° Sand: y = 115pcf 16ft d'...
Consider the following concrete retaining wall: 1.5ft La = 12° Sand: y = 115pcf 16ft d' = 32° c'=0 d' = (2/3) Concrete: y = 150pcf TAVI- N 3ft 5ft '1.5ft 6.5ft y = 120pcf ' = 22°C' = 200psf Clay Use Rankine active earth pressure with: cosa - Ka = cosa- cosa + cosa - cos2 cos2a - cos20 a. Calculate Rankine active and passive lateral forces and show their location onthe diagram. b. Calculate the factor of safety...
2. (8 points) A sequence of statements is listed below: b = (a+4)/2 c=2* b-5 d...
2. (8 points) A sequence of statements is listed below: b = (a+4)/2 c=2* b-5 d = 3*c+ 7 {d>4} calculate the weakest precondition of the sequence.
Calculate the moment about a point C( – 5, 6, 3) ft caused by the forces...
Calculate the moment about a point C( – 5, 6, 3) ft caused by the forces F1 4i + 4j – 5k lb and F2 = - 4i – 4; + 7k lb acting at the points A(1, 1,6) ft and B( – 2, - 4, -1) ft, respectively. Mc =( i + j+ k) lb. ft Submit Question
)calculate he reaction forces at points 8 and C 2 calculate the stress is the rod at cross section D The rod bs connected by pins to the wall at A and to the frame at B eume the Lshaped frame and the rod have negigible mass 3 m- eter 20 mm 3.5 m 8000 N
Calculate the moment about a point C caused by the forces acting
at the points A&B respectively (engineering)?
Can somebody please help me with these 2 problems? Thanks so
much!!
Calculate the moment about a point CC – 4, 5, 7) ft caused by the forces F1 = – 4i + 4% – 8k lb and F, = – 3i – 7j + 7k lb acting at the points AC – 2, – 4, – 1) ft and B(2, 2,...
1. Find forces at points A, B, C, D and E of the following structure. Make sure you write your answers in a table. (20 pts) 4 kN A 0.2 m 2 kN-m B D 0.2 m C E 0.2 m -0.2 m
1. Find forces at points A, B, C, D and E of the following structure. Make sure you write your answers in a table. (20 pts) 4 KN A 0.2 m 2 kN-m B D 0.2 m -0.2 m ---0.2 m -
1. Find forces at points A, B, C, D and E of the following structure. Make sure you write your answers in a table. (20 pts) 4 kN A 0.2 m D 2 kN-m B 0.2 m E -0.2 m 40.2 m -
(4) The forces F 2 -3 + 2 k. ,F = - 31 + 2 -k. F- 1 +-k that act at the points A ( 3.0,0), B(O, 2,0),C (0,0,1) respectively. are in equilibrium b equivalent to one forces F = F + F2+ F equivalent to a couple of moment - 31 - 5-3 C equivalent to two parallel and unequal forces
(4) The forces F 2 -3 + 2 k. ,F = - 31 + 2 -k. F-...
Problem #4 . The retaining wall shown is subjected to the vertical forces given. Calculate the magnitude of the resultant force and determine its location with respect to point A in the middle of the footing. 2 Pt
Consider the following concrete retaining wall: 1.5ft La = 12° Sand: y = 115pcf 16ft d' = 32° c'=0 d' = (2/3) Concrete: y = 150pcf TAVI- N 3ft 5ft '1.5ft 6.5ft y = 120pcf ' = 22°C' = 200psf Clay Use Rankine active earth pressure with: cosa - Ka = cosa- cosa + cosa - cos2 cos2a - cos20 a. Calculate Rankine active and passive lateral forces and show their location onthe diagram. b. Calculate the factor of safety...
2. (8 points) A sequence of statements is listed below: b = (a+4)/2 c=2* b-5 d = 3*c+ 7 {d>4} calculate the weakest precondition of the sequence.
Calculate the moment about a point C( – 5, 6, 3) ft caused by the forces F1 4i + 4j – 5k lb and F2 = - 4i – 4; + 7k lb acting at the points A(1, 1,6) ft and B( – 2, - 4, -1) ft, respectively. Mc =( i + j+ k) lb. ft Submit Question
