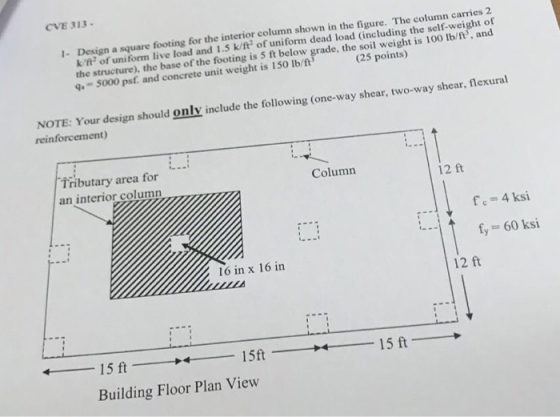

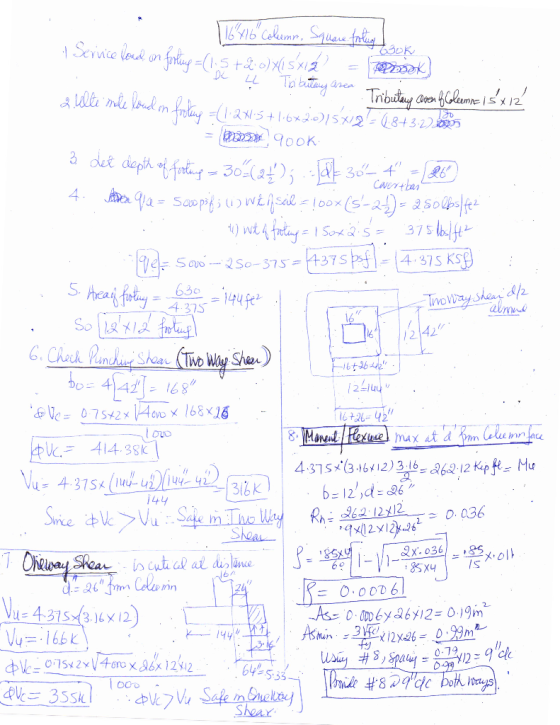

CVE 313- 1- Design a square footing for the interior column shown in the figure. The column carries 2 k 't of uniform live load and 1.5 k/t of uniform dead load (including the self weiht of t...
A (9’x9’x32”) square footing is supporting 230 kips dead load and 130 kips live load from 18-in square column. The allo...
A (9’x9’x32”) square footing is supporting 230 kips dead load
and 130 kips live load from 18-in square column. The allowable
bearing soil pressure is 5000 psf. There is no over-burden soil
weight. Check if the footing area satisfies the soil bearing
pressure requirements. Also, check if the thickness satisfies the
shear ( two and one way) requirements. Finally, design the flexural
steels each direction.
Open book and notes Name a (9%9x32") square footing is supporting 230 kips dead load...
2. Design a square spread footing for the following conditions. Service dead load is 350 kips,...
2. Design a square spread footing for the following conditions. Service dead load is 350 kips, service live load is 275 kips. Soil density is 130 lb/ftº. Allowable soil pressure is 4500 psf. Column is 18 in. square. Geotechnical analyses have determined the width to be 13 ft. fe' = 3500 psi normal weight concrete, and fy= 60 ksi. The base of the footing is placed 5 ft below the ground surface. Note: you don't need to design the bar...
Design a square single column footing to support an 18 inch square interior column reinforced with...
Design a square single column footing to support an 18 inch square interior column reinforced with 8-#10 bars. The column carries an unfactored dead load of 245 Kips that includes weight of soil and weight of footing and an unfactored live load of 20 feet below finished grade. The footing is 10 feet by 10 feet and is 30 inches thick. The allowable soil pressure is 5000 psf, fe' 4000 psi and fy 60000 psi. Concrete used shall be sand...
Design a square footing to support an 18 in. square column tied interior column reinforced with...
Design a square footing to support an 18 in. square column tied interior column reinforced with 8 #9 bars. The column carries an unfactored axial dead load of 245 kips and an axial live load of 200 kips. The base of the footing is 4.0ft. below final grade and allowable soil pressure is 5 k/ft2 Use ??′ = 3.0 ksi and fy = 60.0 ksi
1. Design a wall footing for the following conditions. Service dead load is 6 kips/ft, service...
1. Design a wall footing for the following conditions. Service dead load is 6 kips/ft, service live load is 8 kips/ft. Soil unit weight is 120 lb/ft?. Allowable soil pressure, qa is 4000 psf. The base of the footing is placed 3 ft below the ground surface. Wall is 12 in, thick. Geotechnical analyses have determined the width to be 4 ft. fe' = 3500 psi normal weight concrete, and fy = 60 ksi. Note: you don't need to design...
A 16-in square concrete column carries vertical unfactored load of 350 k factored load. It is...
A 16-in square concrete column carries vertical unfactored load of 350 k factored load. It is to be supported on a 8'square footing with fc=3000 lb/in2 and fy-60 k/in2. The groundwater table is at a great depth. Because of frost heave considerations, the bottom of this footing must be at least 30 inches below the ground surface. Determine the required footing width thickness, size the flexural reinforcement, and show your design in a sketch ASD standards: allowable bearing capacity 6,500...
Design an isolated square footing to support an interior column 40 cm × 40 cm in cross section and carries a dead load of 80 tons and a live load of 60 tons.
Design an isolated square footing to support an interior column 40 cm × 40 cm in cross
section and carries a dead load of 80 tons and a live load of 60 tons.Use 2
f
c
¢ = 250 kg / cm ,
2
f y = 4200 kg / cm , ( )
2
qall gross = 2.0 kg / cm ,
3
g soil =1.7 t / m , and
Df =1.25 m.
The T-beam shown in Figure 1 supports the un-factored dead load of 1.4 kips/ft and live...
The T-beam shown in Figure 1 supports the un-factored dead load
of 1.4 kips/ft and live load of 1.5 kips/ft. The dead load does not
include the self-weight of the beam. The material properties are as
follows: fc’=3000 psi; fy=60,000 psi. Design the shear
reinforcement (stirrups). Plot the stirrups distribution along the
span of the beam.
DL= 1.4 kips/ft ; L2=1.5 kips/Ft * 75 Sz=7 X * b=3616. hr-6in k ) انا امه hw-lain + * bw=12 in
Design a square tied column to carry axial service loads of 320 kips dead load and 190 kips live load. There is no identified applied moment. Assume that the column is short. Use f’c =4000 psi and fy...
Design a square tied column to carry axial service loads of 320
kips dead load and 190 kips live load. There is no identified
applied moment. Assume that the column is short. Use f’c =4000 psi
and fy = 60,000 psi. Also, draw the flexural and shear
reinforcement on a sketch.
Case 3: Design of Short Columns - Small Eccentricity Design a square tied column to carry axial service loads of 320 kips dead load and 190 kips live load....
S. Al-Martini, PhD, P. Eng. Question No. 5 (35minutes) 19 marks) As shown in the figure, a 9-ft 6-in square footing sup...
S. Al-Martini, PhD, P. Eng. Question No. 5 (35minutes) 19 marks) As shown in the figure, a 9-ft 6-in square footing supporting an 18-in. -square tied concrete column and it is subjected to service dead load 225 kips, and service live load 175 kips. column is a typical interior column in a building. Assume normal-weight concrete.. soil pressure (ga) 5000 psf (5 ksf), f'e for column 4000 psi, f's for the footing lsteel 60, 000 psi. The density of the...
A (9’x9’x32”) square footing is supporting 230 kips dead load
and 130 kips live load from 18-in square column. The allowable
bearing soil pressure is 5000 psf. There is no over-burden soil
weight. Check if the footing area satisfies the soil bearing
pressure requirements. Also, check if the thickness satisfies the
shear ( two and one way) requirements. Finally, design the flexural
steels each direction.
Open book and notes Name a (9%9x32") square footing is supporting 230 kips dead load...
2. Design a square spread footing for the following conditions. Service dead load is 350 kips, service live load is 275 kips. Soil density is 130 lb/ftº. Allowable soil pressure is 4500 psf. Column is 18 in. square. Geotechnical analyses have determined the width to be 13 ft. fe' = 3500 psi normal weight concrete, and fy= 60 ksi. The base of the footing is placed 5 ft below the ground surface. Note: you don't need to design the bar...
Design a square single column footing to support an 18 inch square interior column reinforced with 8-#10 bars. The column carries an unfactored dead load of 245 Kips that includes weight of soil and weight of footing and an unfactored live load of 20 feet below finished grade. The footing is 10 feet by 10 feet and is 30 inches thick. The allowable soil pressure is 5000 psf, fe' 4000 psi and fy 60000 psi. Concrete used shall be sand...
1. Design a wall footing for the following conditions. Service dead load is 6 kips/ft, service live load is 8 kips/ft. Soil unit weight is 120 lb/ft?. Allowable soil pressure, qa is 4000 psf. The base of the footing is placed 3 ft below the ground surface. Wall is 12 in, thick. Geotechnical analyses have determined the width to be 4 ft. fe' = 3500 psi normal weight concrete, and fy = 60 ksi. Note: you don't need to design...
The T-beam shown in Figure 1 supports the un-factored dead load
of 1.4 kips/ft and live load of 1.5 kips/ft. The dead load does not
include the self-weight of the beam. The material properties are as
follows: fc’=3000 psi; fy=60,000 psi. Design the shear
reinforcement (stirrups). Plot the stirrups distribution along the
span of the beam.
DL= 1.4 kips/ft ; L2=1.5 kips/Ft * 75 Sz=7 X * b=3616. hr-6in k ) انا امه hw-lain + * bw=12 in
Design a square tied column to carry axial service loads of 320
kips dead load and 190 kips live load. There is no identified
applied moment. Assume that the column is short. Use f’c =4000 psi
and fy = 60,000 psi. Also, draw the flexural and shear
reinforcement on a sketch.
Case 3: Design of Short Columns - Small Eccentricity Design a square tied column to carry axial service loads of 320 kips dead load and 190 kips live load....
S. Al-Martini, PhD, P. Eng. Question No. 5 (35minutes) 19 marks) As shown in the figure, a 9-ft 6-in square footing supporting an 18-in. -square tied concrete column and it is subjected to service dead load 225 kips, and service live load 175 kips. column is a typical interior column in a building. Assume normal-weight concrete.. soil pressure (ga) 5000 psf (5 ksf), f'e for column 4000 psi, f's for the footing lsteel 60, 000 psi. The density of the...
