Question
X10 = 45 KN
X11 = 16 mm
X12 = 165 mm
X13 = 200 mm
Homework Answers
Answer #1

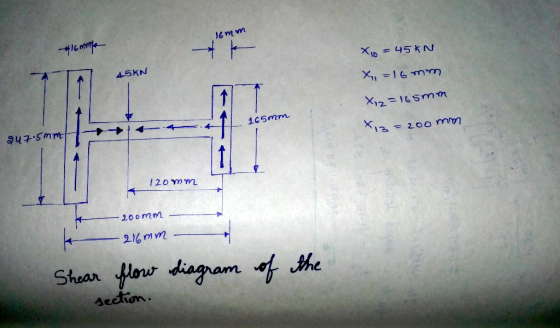

lb l6mm 45kN 105mm 13 2oo mm 120 m 一200 216 m Shean Aecion.

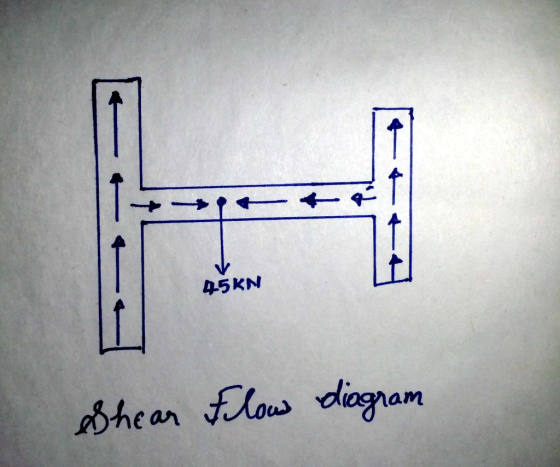

45KN e an
Location I -beam the Shuar cutre sor te iven unsymmebrical summdbuc about on o calovn 3 27 5 mm b I2 (16) ( 2-y7-5P4 (1 b)(115) 3 3 (11) (L475)3 (21) CI(2475) (1) (15) 166' C 28 mm
Know the answer?
Add Answer to:
X10 = 45 KN X11 = 16 mm X12 = 165 mm X13 = 200 mm (5%) Draw the shear flow diagram of the section (i.e., arrows only) Find the location of the shear centre for the I-beam below. Note the flanges are...
Not the answer you're looking for?
Ask your own homework help question.
Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
N10 = 50kN N11 = 11mm N12 = 155mm N13 = 270mm Pls need help with this question. (5%) Draw the shear flow diagram of the section (i.e., arrows only) Find the location of the shear centre for the I-bea...
N10 = 50kN
N11 = 11mm
N12 = 155mm
N13 = 270mm
Pls need help with this question.
(5%) Draw the shear flow diagram of the section (i.e., arrows only) Find the location of the shear centre for the I-beam below. Note the flanges are unequal. (15%) 3. (X11)mm (X10) kN X11) mm V1 42-max 1.5*CX12) Shear flow in the 0.6 (X13) right-hand flange (X13) mm Figure 4
(5%) Draw the shear flow diagram of the section (i.e., arrows only)...
N10 = 50kN
N11 = 11mm
N12 = 155mm
N13 = 270mm
Pls need help with this question.
(5%) Draw the shear flow diagram of the section (i.e., arrows only) Find the location of the shear centre for the I-beam below. Note the flanges are unequal. (15%) 3. (X11)mm (X10) kN X11) mm V1 42-max 1.5*CX12) Shear flow in the 0.6 (X13) right-hand flange (X13) mm Figure 4
(5%) Draw the shear flow diagram of the section (i.e., arrows only)...
