The space structure is subjected to a force F = -5i + 3j – 7k (kips) applied at joint H.

1- Determine the moment of the force about line CG.

2- Determine the moment of the force about line DE.

3- Express the moments in Cartesian coordinates.

8 ft

engineering Civil-Engineering

Answer 1

Answer #1

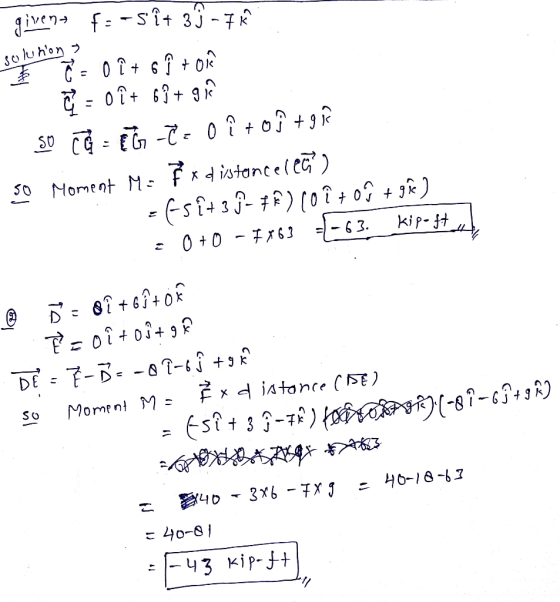

40-8 , ะเ_ Ч 3 Kip..t.t

Answer 2
