Question

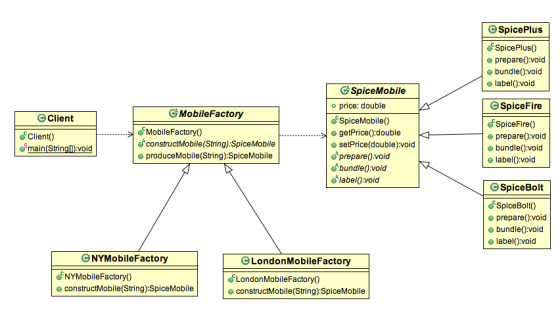

Write Java codes for the diagram below.

G SpicePlus SpicePlus() o prepare0:void o bundleO:void o label):void C SpiceMobile GSpiceFire o price: double MobileFactory C Client SpiceMobile(0 ..getPrice()xdouble o setPrice(double):void d prepare(0:void bundleO:void label0:void SpiceFire( o prepare):void o bundleO:void o label):void MobileFactory() dconstructMobile(String):SpiceMobile o produceMobile(String):SpiceMobile Client() main(Stringll void GSpiceBolt SpiceBolt() o prepare0:void o bundleO:void o label):void G NYMobileFactory GLondonMobileFactory NYMobileFactory(0 LondonMobileFactory(0 o constructMobile(String):SpiceMobile o constructMobile(String):SpiceMobile

Answer 1

Client.java

public class Client {

   public static void main(String[] args) {

       MobileFactory ldfactory = new LondonMobileFactory();
       SpiceMobile mobile = ldfactory.produceMobile("SpicePlus");

       MobileFactory ldfactory2 = new LondonMobileFactory();
       SpiceMobile mobile2 = ldfactory2.produceMobile("SpiceBolt");

       MobileFactory nyFactory = new NYMobileFactory();
       SpiceMobile mobile3 = nyFactory.produceMobile("SpiceFire");

       MobileFactory nyFactory2 = new NYMobileFactory();
       SpiceMobile mobile4 = nyFactory2.produceMobile("SpiceBolt");

   }
}

LondonMobileFactory.java

public class LondonMobileFactory extends MobileFactory {

   @Override
   public SpiceMobile constructMobile(String model) {

       SpiceMobile mobile = null;
       if (model == "SpicePlus"){
           mobile = new SpicePlus();
           mobile.setPrice(300);
       } else if (model == "SpiceBolt"){
           mobile = new SpiceBolt();
           mobile.setPrice(400);
       }
       return mobile;
   }
}

MobileFactory.java

public abstract class MobileFactory {

   public abstract SpiceMobile constructMobile(String model);

   /**
   * Defines the process to product mobile. This implementation should'nt be
   * be changed by clients
   *
   * @param model
   * @return SpiceMobile
   */
   public SpiceMobile produceMobile(String model) {

       SpiceMobile mobile = constructMobile(model);

       mobile.makeMobile();

       return mobile;
   }
}

SpicePlus.java

public class SpicePlus extends SpiceMobile {

   @Override
   public void prepare() {
       System.out.println("Preparing Spice Plus");
   }

   @Override
   public void bundle() {
       System.out.println("Bundling Spice Plus");
   }

   @Override
   public void label() {
       System.out.println("Adding label to Spice Plus");
   }
}

NYMobileFactory.java

public class NYMobileFactory extends MobileFactory {

   @Override
   public SpiceMobile constructMobile(String model) {

       SpiceMobile mobile = null;
       if (model == "SpiceFire"){
           mobile = new SpicePlus();
           mobile.setPrice(300);
       } else if (model == "SpiceBolt"){
           mobile = new SpiceBolt();
           mobile.setPrice(400);
       }
       return mobile;
   }

}

SpiceBolt.java

public class SpiceBolt extends SpiceMobile {

   @Override
   public void prepare() {
       System.out.println("Preparing Spice Bolt");
   }

   @Override
   public void bundle() {
       System.out.println("Bundling Spice Bolt");
   }

   @Override
   public void label() {
       System.out.println("Adding label to Spice Bolt");
   }
}

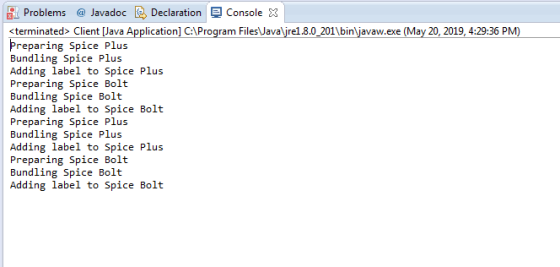

Problems @ Javadoc 다 Declaration 모 Console X <terminated> Client [Java Application] C:\Program FilesJavarel8.0_201\bin javaw.exe (May 20, 2019, 4:29:36 PM reparing Spice Plus Bundling Spice Plus Adding label to Spice Plus Preparing Spice Bolt Bundling Spice Bolt Adding label to Spice Bolt Preparing Spice Plus Bundling Spice Plus Adding label to Spice Plus Preparing Spice Bolt Bundling Spice Bolt Adding label to Spice Bolt
