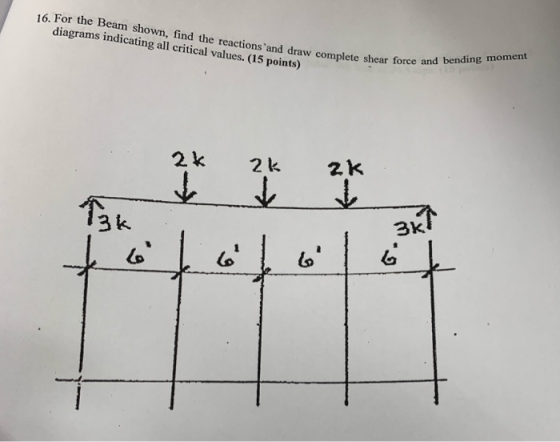

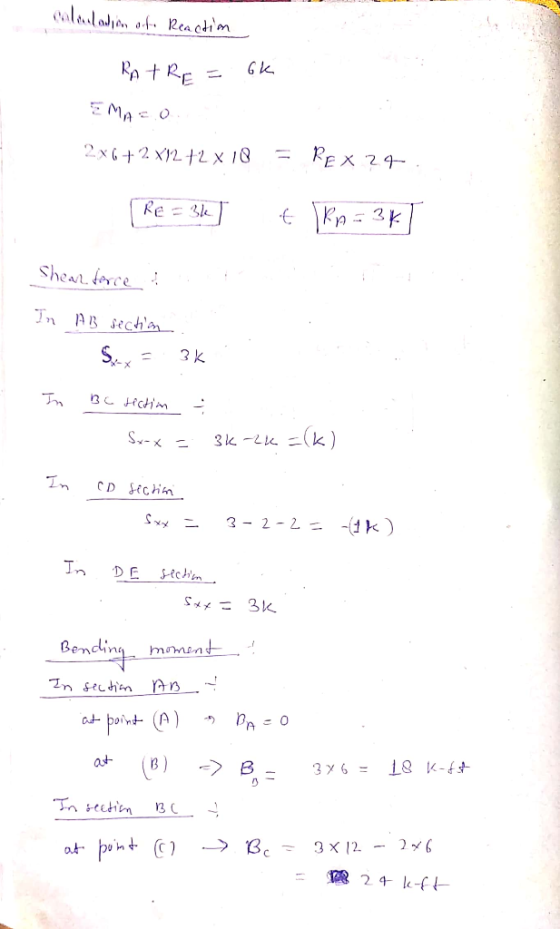

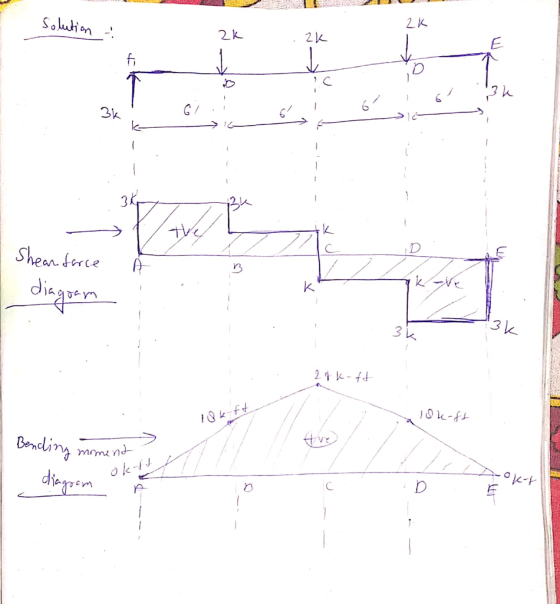

For the Beam shown, find the reactions 1o diagrams indicating all critical values. (1-5 points) 16. plete shear force and bending moment 2 k 2k 2k 3K 3 k lo Lo Lo (o For the Beam shown, find...
For the frame shown below:1- Calculate the reactions at the supports.2- Draw the Normal force, the Shear force and the Bending moment
diagrams. Indicate all critical values3- Show the equilibrium at node B.4- Develop the analytical expression for the normal force, the
shear force and the bending moment diagram for memberBC.The 4 Kips/ft load is applied perpendicular to member
AB.
For the beam shown in Fig.3, q1= 10kN/m, Mo=15kN.m. a) Find all
support reactions. b) Find the expressions for the shear force V
and bending moment M. c) Draw the shear-force and bending-moment
diagrams. Note that Mo acts at C, and dV/dx = -q, dM/dx = V
Calculate (a) the maximum shear stress in each segment; (b) the angles of twist (in d at the mid-span of the larger segment. Given: r-Trllp Ti 91 T: Fig. 2 Fig. 3 q,-10...
For the beam shown in Fig.3, q1= 10kN/m, Mo=15kN.m. a) Find all
support reactions. b) Find the expressions for the shear force V
and bending moment M. c) Draw the shear-force and bending-moment
diagrams. Note that Mo acts at C, and dV/dx = -q, dM/dx = V
Calculate (a) the maximum shear stress in each segment; (b) the angles of twist (in d at the mid-span of the larger segment. Given: r-Trllp Ti 91 T: Fig. 2 Fig. 3 q,-10...
For the beam and loading shown draw the shear and bending moment
diagrams and then find the maximum absolute values of the shear and
bending moment.
1. For the beam and loading shown draw the shear and bending-moment diagrams and then find the maximum absolute values of the shear and bending moment. 300 N/m 4 m
Problem 2 - Draw the shear and bending moment diagrams for the beam shown below. Clearly label th shear and moment values at all points. (25 points) 20 k 40 k-ft 5 ft 10 ft 10 ft
4. For the beam and loading shown, draw the shear force and bending moment diagrams and determine the maximum bending and shear force and their locations. 20 KN 40 KN B D 250 mm |--2.5 m- 3m-4-2 m 80 mm 5. For the beam and loading shown, draw the shear force and bending moment diagrams and determine the maximum bending and shear force and their locations. 50 KN
Problem #2: For the beam shown, plot the shear-force and bending-moment diagrams using singularity functions. Label the diagrams properly and provide values at all key points. y 500 lbf 40 lbffin A BIIIIIII
Compute the reactions and draw the shear and bending moment diagrams continuous beam shown below (use the force method) P 4 kips 2 k/ft I 9 fi 18 ft
Draw the shear force and bending-moment diagrams for the simply
supported beam shown. Label each diagram with the corresponding
values
1. Draw the shear force and bending-moment diagrams for the simply supported beam shown. Label each diagram with the corresponding values. 3 Pe= 30 KN 4 m - m 3 m - C -40 kN - m
Required Information For the beam shown, find the reactions at the supports and plot the shear-force and bending-moment diagrams. V1 = 2 KN and V2 = 4 kN. NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. Vi V2 1.2 min А R2 Determine the values of the moments My, M2, and M3 In kNm. Provide values at all key points shown in the given shear-force and bending-moment diagrams....
