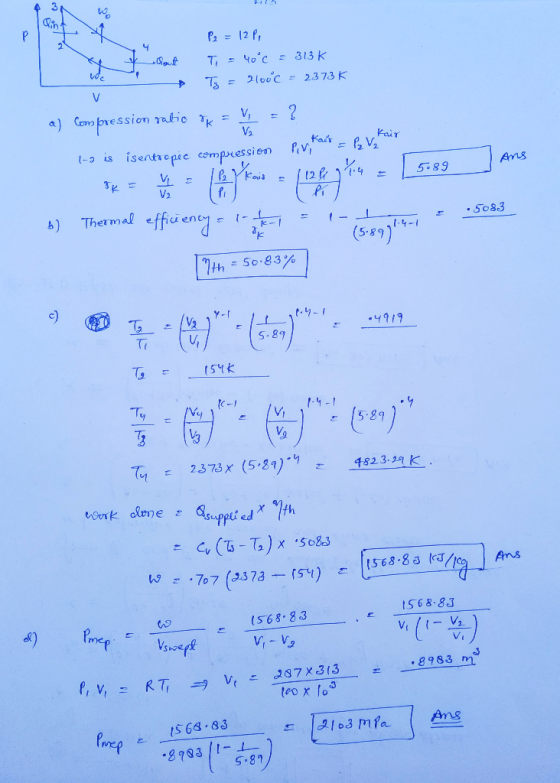

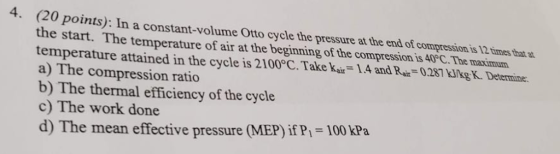

4. (20 points): In a constant-volume the start. The temperature of air at the beginning of the compre temperature attained in the cycle is 2100°C. Take kar-1.4 and Rar = 0.287 kJ/kg K. Determine. a)...
Surprise Quiz (1) The temperature at the beginning of the compression process of an air standard...
Surprise Quiz (1) The temperature at the beginning of the compression process of an air standard Otto cycle with a compression ratio of 8 is 27 °C=540 R, the pressure is 105 Pa, and the cylinder volume is 5.66 x 104 m². The maximum temperature during the cycle is 1727 °C=3600R. For the compression and PI 3 expansion processes, use T3 = 3600°R isentropic equations from equation sheet. Tv*-* = T, v*-? PV = P, V. n=11 - T3 =...
(12 points) An ideal Otto cycle operates with a compression ratio of 10. At the beginning...
(12 points) An ideal Otto cycle operates with a compression ratio of 10. At the beginning of the compression process, the air is at 101 kPa and 27°C. During the constant volume heat addition process, 790 kJ/kg of heat is transferred to the air. Accounting for variable specific heats with temperature, determine: the maximum temperature during the cycle 1266.862 °C the maximum pressure during the cycle 6239.424 kPa the specific net work output 475.495481 kJ/kg the mean effective pressure (MEP)...
Temperature and pressure at the beginning of the compression process of an air-standard Otto cycle are...
Temperature and pressure at the beginning of the compression process of an air-standard Otto cycle are 295 K and 100 kPa, respectively. The compression ratio is 10 and the maximum temperature during the cycle is 2200 K. Draw P-v and T-s diagrams of the cycle and determine: a) The net work in kJ/kg. b) The thermal efficiency. c) The mean effective pressure, in kPa. Assume R = 287 J/kg.K for air.
Required information An ideal Otto cycle has a compression ratio of 8. At the beginning of...
Required information An ideal Otto cycle has a compression ratio of 8. At the beginning of the compression process, air is at 95 kPa and 27 and 720 kJ/kg of heat is transferred to air during the constant volume heat addition process. Take into account the variation of specific heats with temperature. The gas constant of air is R=0.287 kJ/kg.K. Determine the network output (You must provide an answer before moving on to the next part.) The net work output...
A Diesel cycle has a compression ratio of 22 and begins its compression at 80 kPa and 15 °C. The maximum cycle temperature is 1200°C. Utilize air-standard assumptions. The properties of air at room t...
A Diesel cycle has a compression ratio of 22 and begins its compression at 80 kPa and 15 °C. The maximum cycle temperature is 1200°C. Utilize air-standard assumptions. The properties of air at room temperature are R-0.287 kPa-m3/kg-K Cp 1.005 kJ/kg-K, cv0.718 kJ/kg-K, and k 1.4. Determine the thermal efficiency of this cycle using variable specific heats at room temperature. Use data from the tables The thermal efficiency of this cycle is
A Diesel cycle has a compression ratio of...
4. A4.6 L spark ignition engine operates on the ideal Otto cycle with a compression ratio of 10. At the beginning of the compression process the air is at 107 kPa and 21 C. The maximum cycle temp...
4. A4.6 L spark ignition engine operates on the ideal Otto cycle with a compression ratio of 10. At the beginning of the compression process the air is at 107 kPa and 21 C. The maximum cycle temperature is 1116°C. Accounting for variable specific heats, determine: (a) the heat addition per cycle in kJ. Ans: 3.368 kJ (b) the net work per cycle in kJ. Ans: 1.907 kJ (c) the mean effective pressure in kPa. Ans: 460.6 kPa (d) the...
In an Otto cycle air is compressed from an initial pressure 120 kPa and temperature 370...
In an Otto cycle air is compressed from an initial pressure 120 kPa and temperature 370 T (K). The cycle has compression ratio of 10. In the constant volume heat addition process 1000 kJ/kg heat is added into the air. Considering variation on the specific heat of air with temperature, determine, (a) the pressure and temperature at the end of heat addition process (show the points on P-v diagram) (b) the network output (c) the thermal efficiency (d) the mean...
Analyze a Diesel cycle using a constant specific heat air standard model (cP = 1.004 kJ/kg-K,...
Analyze a Diesel cycle using a constant specific heat air standard model (cP = 1.004 kJ/kg-K, R = 0.287 kJ/kg-K) with the following properties: The temperature and pressure at the beginning of the compression stroke are 300 K and 100 kPa, the compression ratio is 22, and the specific heat addition is 800 kJ/kg. Find the thermal efficiency, cut off ratio, maximum temperature in the cycle, and maximum pressure in the cycle.
At the beginning of the compression process of an air-standard Otto cycle, p1 = 1 bar...
At the beginning of the compression process of an air-standard Otto cycle, p1 = 1 bar and T1 = 300 K. The compression ratio is 6 and the heat addition per unit mass of air is 1300 kJ/kg. Determine: (a) the maximum temperature of the cycle, in K. (b) the net work, in kJ/kg. (c) the percent thermal efficiency of the cycle. (d) the mean effective pressure, in kPa.
At the beginning of the compression process of an air standard Diesel cycle, the pressure is 109 ...
At the beginning of the compression process of an air standard
Diesel cycle, the pressure is 109 kPa and the temperature is 284 K.
The volume of state 1 is 800.0 cm3. The compression ratio for the
Diesel cycle is 12 and cut-off-ratio is 1.95. Determine: a) the
heat addition, in kJ kJ b) the net work, in kJ kJ c) the thermal
efficiency % d) the mean effective pressure, in kPa kPa
At the beginning of the compression process...
Surprise Quiz (1) The temperature at the beginning of the compression process of an air standard Otto cycle with a compression ratio of 8 is 27 °C=540 R, the pressure is 105 Pa, and the cylinder volume is 5.66 x 104 m². The maximum temperature during the cycle is 1727 °C=3600R. For the compression and PI 3 expansion processes, use T3 = 3600°R isentropic equations from equation sheet. Tv*-* = T, v*-? PV = P, V. n=11 - T3 =...
(12 points) An ideal Otto cycle operates with a compression ratio of 10. At the beginning of the compression process, the air is at 101 kPa and 27°C. During the constant volume heat addition process, 790 kJ/kg of heat is transferred to the air. Accounting for variable specific heats with temperature, determine: the maximum temperature during the cycle 1266.862 °C the maximum pressure during the cycle 6239.424 kPa the specific net work output 475.495481 kJ/kg the mean effective pressure (MEP)...
Temperature and pressure at the beginning of the compression process of an air-standard Otto cycle are 295 K and 100 kPa, respectively. The compression ratio is 10 and the maximum temperature during the cycle is 2200 K. Draw P-v and T-s diagrams of the cycle and determine: a) The net work in kJ/kg. b) The thermal efficiency. c) The mean effective pressure, in kPa. Assume R = 287 J/kg.K for air.
Required information An ideal Otto cycle has a compression ratio of 8. At the beginning of the compression process, air is at 95 kPa and 27 and 720 kJ/kg of heat is transferred to air during the constant volume heat addition process. Take into account the variation of specific heats with temperature. The gas constant of air is R=0.287 kJ/kg.K. Determine the network output (You must provide an answer before moving on to the next part.) The net work output...
A Diesel cycle has a compression ratio of 22 and begins its compression at 80 kPa and 15 °C. The maximum cycle temperature is 1200°C. Utilize air-standard assumptions. The properties of air at room temperature are R-0.287 kPa-m3/kg-K Cp 1.005 kJ/kg-K, cv0.718 kJ/kg-K, and k 1.4. Determine the thermal efficiency of this cycle using variable specific heats at room temperature. Use data from the tables The thermal efficiency of this cycle is
A Diesel cycle has a compression ratio of...
4. A4.6 L spark ignition engine operates on the ideal Otto cycle with a compression ratio of 10. At the beginning of the compression process the air is at 107 kPa and 21 C. The maximum cycle temperature is 1116°C. Accounting for variable specific heats, determine: (a) the heat addition per cycle in kJ. Ans: 3.368 kJ (b) the net work per cycle in kJ. Ans: 1.907 kJ (c) the mean effective pressure in kPa. Ans: 460.6 kPa (d) the...
At the beginning of the compression process of an air standard
Diesel cycle, the pressure is 109 kPa and the temperature is 284 K.
The volume of state 1 is 800.0 cm3. The compression ratio for the
Diesel cycle is 12 and cut-off-ratio is 1.95. Determine: a) the
heat addition, in kJ kJ b) the net work, in kJ kJ c) the thermal
efficiency % d) the mean effective pressure, in kPa kPa
At the beginning of the compression process...
