Question 16. A maximal plane graph is a plane graph G = (V, E) with n ≥ 3 vertices such that if we join any two non-adjacent vertices in G, we obtain a non-plane graph. (a) Draw a maximal plane graphs...

Question

Question

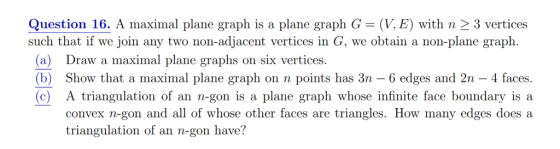

Question 16. A maximal plane graph is a plane graph -(V. E) with n 〉 3 vertices such that if we join any two non-adjacent ver Question 16. A maximal plane graph is a plane graph G = (V, E) with n ≥ 3 vertices such that if we join any two non-adjacent vertices in G, we obtain a non-plane graph. (a) Draw a maximal plane graphs on six vertices. (b) Show that a maximal plane graph on n points has 3n − 6 edges and 2n − 4 faces. (c) A triangulation of an n-gon is a plane graph whose infinite face boundary is a convex n-gon and all of whose other faces are triangles. How many edges does a triangulation of an n-gon have?

math geometry

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

I A) on Sex Lo Then E 1-4クノ n = n+ギース 2 3 tu.
