In the figure below draw the free body diagrams for all three members. 3.) In the figure below draw the free body diagrams for all three members. s) 3 m 2 m 1 m 3 kN 1.5 m 3.) In the figure...

Question

Question

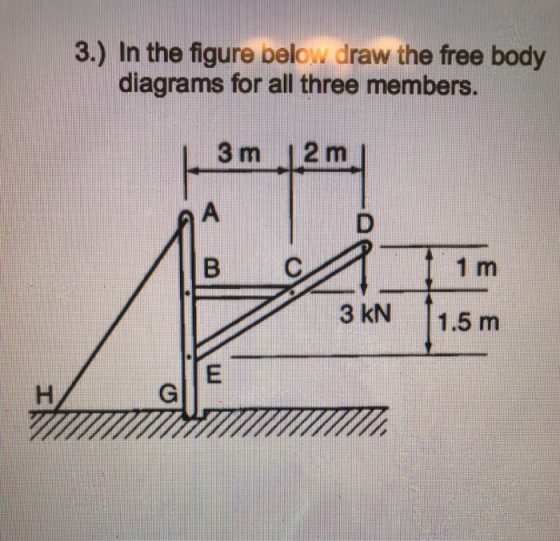

In the figure below draw the free body

diagrams for all three members.

engineering Mechanical-Engineering

Answer 1

Answer #1

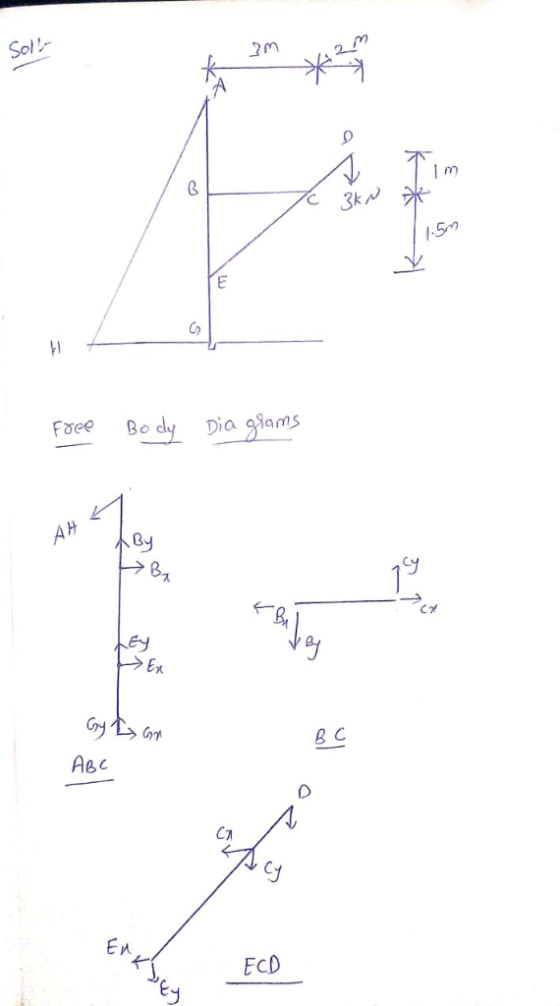

1.5n Foee Bo dy Dia alams 8y C 2Y Ex G2 Aec ECD

Answer 2

Similar Homework Help Questions

Statics problems Question A2 The plane truss shown in Figure A2 is supported at points A and J. -30° and the external loads are Fi 1.5 kN and F 3 kN. Draw the free body diagram of the truss. D...

Statics problems Question A2 The plane truss shown in Figure A2 is supported at points A and J. -30° and the external loads are Fi 1.5 kN and F 3 kN. Draw the free body diagram of the truss. Determine all the reactions at the supports or, if this is not possible, explain why. a) Calculate the internal forces in members CF, EH, GH and HI, stating whether they are in tension or compression. b) (12) Are members CF and...
For the two frames given below Compute the Support Reactions Draw the Free Body Diagrams for...

For the two frames given below Compute the Support Reactions Draw the Free Body Diagrams for all members, and joints with concentrated load or moment Draw the Bending Moment Diagram, Shear Force Diagram, and Axial Force Diagram using the sign conventions and labeling scheme taught in the class Draw the Qualitative Deflected Shape, clearly showing the Inflection Points, if any. 1. (50 points) 45 k Need FBD 3 k/ft 15 ft 2. (50 points) 15 kN/m F G 65 kN...
Draw Free Body Diagrams (FBD) for member "be" and "ce" 12 kN/m 6 kN 4 m...

Draw Free Body Diagrams (FBD) for member "be" and "ce" 12 kN/m 6 kN 4 m V. -30 kN H6 kN M 78 kN -m v,-42 kN

Reactions of all pins and members must be calculated. Draw the free-body diagram of each member...

Reactions of all pins and members must be calculated. Draw the free-body diagram of each member (AB, BC, AD, EDC) and pin (A, B, C, D, E). Then, find all the forces previously reported. Force at C (5 kN) is applied on the pin C 5 kN/m 1 kN/m 1 kN/m 2 kN-m 2 m 1.5 m 1.5 m 5 kN
Draw the shear and moment diagrams. 6 kN 6 kN/m B -3 m -1.5 m 1.5...

Draw the shear and moment diagrams. 6 kN 6 kN/m B -3 m -1.5 m 1.5 m
Note: Draw Free-body diagrams for all problems Q.1) Two flanged shafts subjected to a torque To...

Note: Draw Free-body diagrams for all problems Q.1) Two flanged shafts subjected to a torque To 18 kN-m are connected by four 30-mm bolts as shown in figure below. The diameter of the bolt circle is da- 200 mm. Calculate the shear stress in the bolts. To To

Draw the free body diagrams for the figures Draw the free body Diagram for the figures...

Draw the free body diagrams for the figures Draw the free body Diagram for the figures below. 20 1. 65° 1.7 m 12 m S 250 m
Test #3 (Chapter 6) Draw all necessary free body diagrams for each problem. The compound beam...

Test #3 (Chapter 6) Draw all necessary free body diagrams for each problem. The compound beam is fixed at A and supported by rockers at B and C. There are pins at D and E. Determine the support reactions at A, B, and C. 1. 15 kN 30 kN m 6 m 6 m 2 m 2 m 2 m
Use the Slope-Deflection Method to analyse the structure of Figure 1 and draw the shear force, axial force, and bending moment diagrams 4 m (1.5 EI) 20 KN/m 10 KN/m 50 kN.m Figure 1 Use the Slop...

Use the Slope-Deflection Method to analyse the structure of Figure 1 and draw the shear force, axial force, and bending moment diagrams 4 m (1.5 EI) 20 KN/m 10 KN/m 50 kN.m Figure 1 Use the Slope-Deflection Method to analyse the structure of Figure 1 and draw the shear force, axial force, and bending moment diagrams 4 m (1.5 EI) 20 KN/m 10 KN/m 50 kN.m Figure 1

2.0 kN/m 1.5 kN/m Figure 3. Rigid body with distributed loads

2.0 kN/m 1.5 kN/m Figure 3. Rigid body with distributed loads
