For the following set of points, describe how the CLOSEST-PAIR algorithm finds a closest pair of points: (3) (3,2),(2,1)...

For the following set of points, describe how the CLOSEST-PAIR algorithm finds a closest pair
of points: (3)
(3,2),(2,1),(2,3),(1,2),(3,1),(2,2),(1,3),(3,−1),(5,−2)

engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

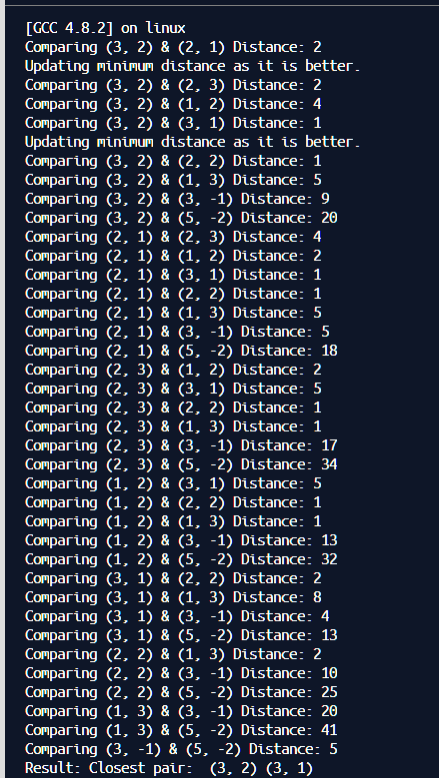

GCC 4.8.2] on linux Cormparing (3, 2) & (2. 1) Distance: 2 Updating rinimum distance as it is better. Conparing (3, 2) & (2,

Flow:
We keep a mindistance variable to hold the result for the minimum distance found till now. We start making pairs of each point and then find the distance between them. If the distance between them is lower than the minDistance found till now, then they become our result set.. Using this procedure, we keep improving our result set.

Flow output:
Comparing (3, 2) & (2, 1) Distance: 2
Updating minimum distance as it is better.
Comparing (3, 2) & (2, 3) Distance: 2
Comparing (3, 2) & (1, 2) Distance: 4
Comparing (3, 2) & (3, 1) Distance: 1
Updating minimum distance as it is better.
Comparing (3, 2) & (2, 2) Distance: 1
Comparing (3, 2) & (1, 3) Distance: 5
Comparing (3, 2) & (3, -1) Distance: 9
Comparing (3, 2) & (5, -2) Distance: 20
Comparing (2, 1) & (2, 3) Distance: 4
Comparing (2, 1) & (1, 2) Distance: 2
Comparing (2, 1) & (3, 1) Distance: 1
Comparing (2, 1) & (2, 2) Distance: 1
Comparing (2, 1) & (1, 3) Distance: 5
Comparing (2, 1) & (3, -1) Distance: 5
Comparing (2, 1) & (5, -2) Distance: 18
Comparing (2, 3) & (1, 2) Distance: 2
Comparing (2, 3) & (3, 1) Distance: 5
Comparing (2, 3) & (2, 2) Distance: 1
Comparing (2, 3) & (1, 3) Distance: 1
Comparing (2, 3) & (3, -1) Distance: 17
Comparing (2, 3) & (5, -2) Distance: 34
Comparing (1, 2) & (3, 1) Distance: 5
Comparing (1, 2) & (2, 2) Distance: 1
Comparing (1, 2) & (1, 3) Distance: 1
Comparing (1, 2) & (3, -1) Distance: 13
Comparing (1, 2) & (5, -2) Distance: 32
Comparing (3, 1) & (2, 2) Distance: 2
Comparing (3, 1) & (1, 3) Distance: 8
Comparing (3, 1) & (3, -1) Distance: 4
Comparing (3, 1) & (5, -2) Distance: 13
Comparing (2, 2) & (1, 3) Distance: 2
Comparing (2, 2) & (3, -1) Distance: 10
Comparing (2, 2) & (5, -2) Distance: 25
Comparing (1, 3) & (3, -1) Distance: 20
Comparing (1, 3) & (5, -2) Distance: 41
Comparing (3, -1) & (5, -2) Distance: 5
Result: Closest pair: (3, 2) (3, 1)

I have written a python code, just in case you want it:

# though the distance is the square root of the difference
# but because we just want to compare and find closest pair,
# it is fine and simple
def pairDistance(p1, p2):
        return (p1[0] - p2[0]) ** 2 +  (p1[1] - p2[1]) ** 2


pairs = [(3,2),(2,1),(2,3),(1,2),(3,1),(2,2),(1,3),(3,-1), (5,-2)]

minDistance = None
index1 = None
index2 = None

for i in range(len(pairs)):
        for j in range(i + 1, len(pairs)):

                # compare point i and j.
                dist = pairDistance(pairs[i], pairs[j])

                print('Comparing', pairs[i], '&', pairs[j], 'Distance:', dist)

                if minDistance is None or minDistance > dist:

                        print('Updating minimum distance as it is better.')
                        minDistance = dist
                        index1, index2 = i, j

print('Result: Closest pair: ', pairs[index1], pairs[index2])
