Question

matlab

The error function is a mathematical function that frequently arises in probability and statistics. It also can show up in the solution to some partial differential equations, particularly those arising in heat and mass transfer applications. The error function is defined as 2 e-t dt picture attached This function is actually built-in to MATLAB as the command erf, and here we'll use that function to compute a "true value" with which we can compare results of two interpolation approaches. Note that this value in MATLAB is actually the result of a numerical integration since the integral defining the error function cannot be solved analytically. More on that in week 7… For this problem consider the following tabulated valucs of the error function attached table 0.5 1.0 1.5 2.0 0.0 0.9953 erf(x)0.0 0.5205 0.8427 0.9661 Write a function mfile tha t accepts a single, scalar input for x and uses these tabulated values to calculate and output the following fou results (in order and all scalars) 1. An interpolated value for erfx) using a 2nd order Lagrange interpolating polynomial. 2. The true error associated with the first output 3. An interpolated value for erfix) generated using a spline with "not-a-knot" end conditions 4. The true error associated with the third output. Notes: For the Lagrange interpolating polynomial, you will need to formulate the polynomial by hand and enter it as a mathematical expression in your function. Make sure your function always uses the three data points closest to the input value for the Lagrange interpolation. Use MATLAB's built-in erf(x) function to compute the true value for the error calculations.

Answer 1

`Hey,

Note: Brother in case of any queries, just comment in box I would be very happy to assist all your queries

% a. Define the necessary symbolic variables.
clear, clc
[L,LE,S,SE]=interpolated(1)

function [L,LE,S,SE]=interpolated(x)
XX=[0:0.5:2];
Y=[0,0.5205,0.8427,0.9661,0.9953];
min=inf;
ind=-1;
for i=1:length(XX)-2
if(min>norm(XX(i:i+2)-x))
ind=i;
end
end
L=lagrangeInterp(XX(ind:ind+2),Y(ind:ind+2),x);
LE=abs(L-erf(x));
S=interp1(XX,Y,x,'spline');
SE=abs(S-erf(x));
function [yhat]=lagrangeInterp(x,y,interpx)

X=x;
f=y;
x=interpx;

l=0;
for i=1:length(X)
li=1;
for j=1:length(X)
if i~=j
li=(li).*((x-X(j))/(X(i)-X(j)));
end
end
l=(l)+((li)*f(i));
end
yhat=l;

end
end

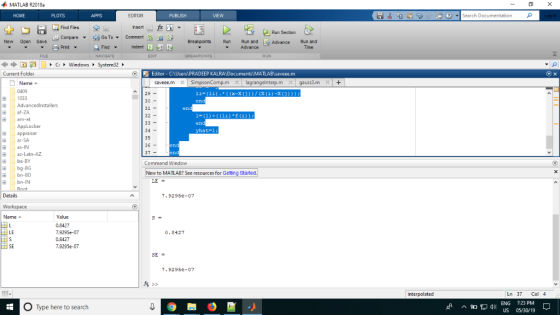

MATLAB R2018a 1 di T (魁ㄅㄧ , e, 3 rch Documentation EDITOR Find Files Run Section ie Compare ▼ [a Go To▼ Comment % Advance Run and New Open Save Breakpoints Run Run and Print Find Indent Time C: Windows System32 Current Folder Editor CAUsers PRADEEP KALRANDocuments MATLABsaveee.m Name ▲ 0409 29- E 1033 af-ZA am-et 33- 34- hat-1 困| | appraiser ar-SA 35 as-IN be-BY Command Window bg-BG New to MATLAB? See resources for Getting bn-IN Details 7.9295e-07 Name Value 0.8427 LE 7.9295e-07 0.8427 0.8427 7.9295e-07 SE SE 7.9295e-07 Ln 37 Col 4 interpolated ENG 7:23 PM O Type here to search ^恤洞 1) US 05/30/19

Kindly revert for any queries

Thanks.
