hello there ,, can anyone give the solution of this Assuming a graph is represented as an adjacency matrix, write the ps...

hello there ,, can anyone give the solution of this

Assuming a graph is represented as an adjacency matrix, write the pseudocode for an algorithm that can determine if any path exists between two vertices.

The algorithm would accept as input:

The nxn adjacency matrix for an undirected, unweighted graph
A source vertex
A destination vertex

Returning as output:

A boolean value indicating whether there is a path between the source and destination.

You can use anything for variable/function names (but be consistent within your solution)

engineering Computer-Science

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

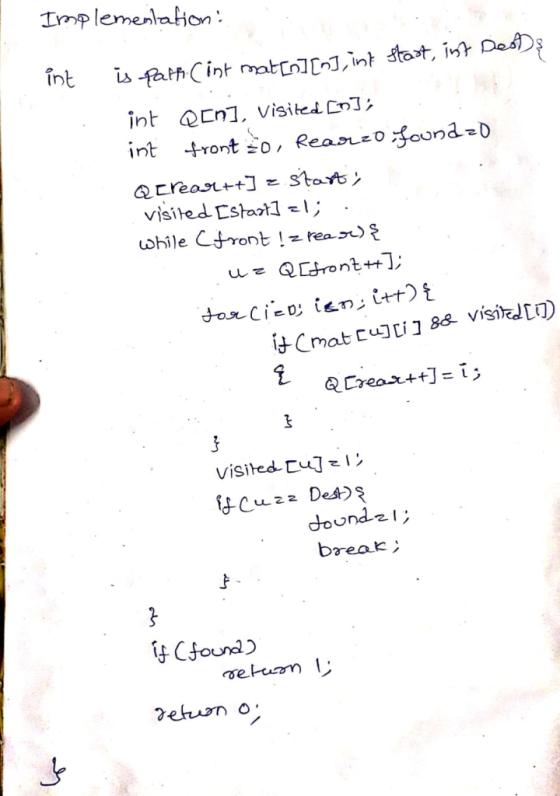

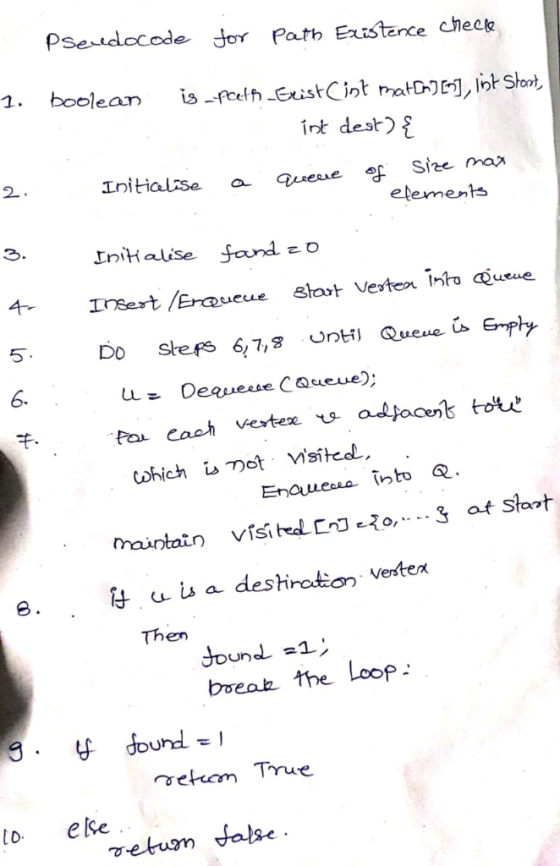

$Pseudoco de Jor patb Easterce check înt desr) \ Initial-se a Rene 앙 sieno etements 2 3 4IneErueue stat Vesten intueue 5 6. in$ Imp lemenlaion int @Cn1. visikiCn visite d Estat! visited T don break

we can use DFS or BFS to check path between two nodes...
