A temperature sensor based WSN node provides an output of 10 mV to 210 mV over its operating range. Develop a signal con...
A temperature sensor based WSN node provides an output of 10 mV to 210 mV over its operating range. Develop a signal conditioning circuit so that the output becomes 0 V to 3.3 V for the operating range. The circuit should offer very high input impedance.
Homework Answers
Answer:
This signal conditioning can be done in two op-amp stages. First we subtract an offset to 10mV. So the raw signal range is from 0 to 200mV. Then we amplify this signal using a non-inverting amplifier of gain 16.5 (0.2 * 16.5 = 3.3V).

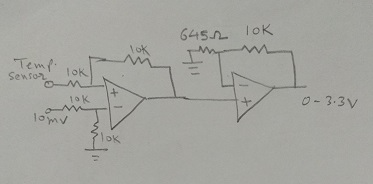

This circuit is shown in the image below:
The 10mV signal can be generated using a multi-turn potentiometer.
The gain of second stage is give by 1+ 10000/645 = 16.5
As the circuit consists of op-amp, it offers high input impedance by design.
Hope this helps.
Add Answer to:
A temperature sensor based WSN node provides an output of 10 mV to 210 mV over its operating range. Develop a signal con...
-A sensor output range of 20mV to 250mV as a variable varies over its range. Develop...
-A sensor output range of 20mV to 250mV as a variable varies over its range. Develop signal conditioning so that this become 0 to 5V. By using: a)Instrumentation Amplifier b)Summing Circuit -What is the resolution of the signal conditioning?
L。2.1 Exercises Analog signal conditioning EEC 3003 17-18 S2 100.0mv to 600 mV as a variable var...
L。2.1 Exercises Analog signal conditioning EEC 3003 17-18 S2 100.0mv to 600 mV as a variable varies over its range. 40. A sensor outputs a range of Develop signal conditioning so that this becomes 0 to 12V? 15 V 5.7 V 21 ?? Vo 1 Vout Vi Differential Amplifier What is the DC bias? a. What is the gain of the differential amplifier? b. c. What is the value of R1, R3, R4? What is value of the voltage labelled...
