Question

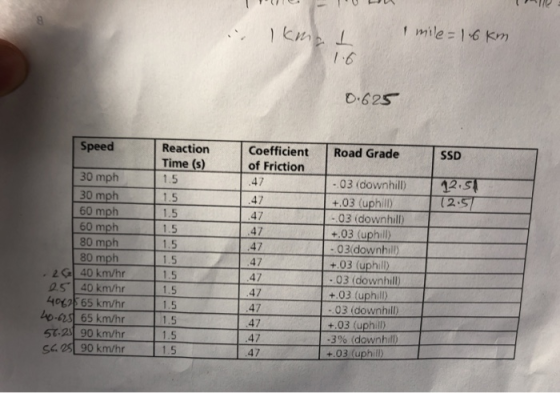

Stopping sight distance (SSD) is defined as the distance needed for a driver to see an object on the roadway and then stop before colliding with it. It's composed of the distance to react on first seeing the object and then the distance to stop after the brake is engaged. The following is a formula for determining stopping sight distance: ssi) = (. | c:/ + |-. SSD is the stopping sight distance (m or ft e is the conversion factor .278 m-hr/km-s (metric units) or 1.47 f-hr/mi-sec (U.S. Customary units). v is the speed (km/hr or mihr). t is the reaction time (sec). g is the acceleration caused by gravity 9.81 m/s2 or 32.2 ft/sec2. fis the road's coefficient of friction (dimensionless). G is the road grade, as a decimal (dimensionless) Using this equation, write, compile, and run a C++ program that first prompts the user for the unit system to use (metric or U.S. Customary units). Based on the response, your program should select the correct conversion factor request the remaining data, and display the stopping sight distance. Use your program to complete the following chart: I .6 0.625 Coefficient Road Grade of Friction SSD Reaction Speed Time (s) -03 (downhill 12.S 2.S 30 mph 47 1.5 +.03 (uphill) - 03 (downhill) 30 mph 47 47 +.03 (uphill) 47 1.5 47 .03(downhill) +.03 (uphill) 03 (downhill) 47 1.5 47 , 2Gİ 40 km/hr .5 40 km/hr 40426 65 km/hr h0625 65 km/hr 5T-2 90 km/hr 47 +.03 (uphill) -03 (downhill) 47 +.03 (uphill) 47 47 -3% (downhil) +.03 (uphill) 47 C 28 90 km/hr

Answer 1

/*
 *  C++ Program to Calculate Stopping Site Distance
 */

#include <iostream>
#include <cstdio>
using namespace std;

#define gM 9.81
#define gF 32.2
#define cM 0.278
#define cF 1.47

int main()
{
  int ch;

  cout << "Enter choice of units -" << endl;
  cout << "1. Metric" << endl;
  cout << "2. U.S. Customery Units" << endl;
  cout << "Enter Choice: ";
  cin >> ch;

  int v;
  float t, f, G;
  double SSD;

  switch(ch)
  {
    case 1:
            cout << "Enter speed (km/h): ";
            cin >> v;
            cout << "Enter reaction time (sec): ";
            cin >> t;
            cout << "Enter Coefficient of friction: ";
            cin >> f;
            cout << "Enter Road Grade: ";
            cin >> G;
            SSD = (cM*v*t) + ((cM*cM*v*v)/(2*gM*(f + G)));
            cout << "SSD: " << SSD << " m";
            break;

    case 2:
            cout << "Enter speed (mi/h): ";
            cin >> v;
            cout << "Enter reaction time (sec): ";
            cin >> t;
            cout << "Enter Coefficient of friction: ";
            cin >> f;
            cout << "Enter Road Grade: ";
            cin >> G;
            SSD = (cF*v*t) + ((cF*cF*v*v)/(2*gF*(f + G)));
            cout << "SSD: " << SSD << " ft";
            break;
  }

  return 0;
}
/*  Program ends here */

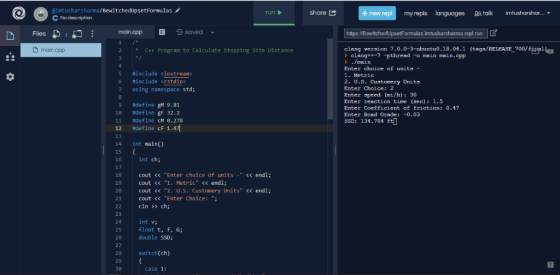

Gimtusharsharma/BewitchedUpsetFormulas C Nodescription shareは +new rep my repls languages talk intusharhar ▼ run main.cpp 日 っsaved ▼ https:/BewitchedUpsetFormulas.imtusharsharma.replrun Files main.cpp clang version 7.0.0-3-ubuntu0.18.04.1 (tags/RELEASE 700/ftmall clang++-7pthread -o main main.cpp t ./main Enter choice of units 1. Metric 2 C++ Program to Calculate Stopping Site Distance #include <iostream> 6 #include <cstdio> 2. U.S. Customery Unit:s Enter Choice: 2 7 using namespace std; Enter speed (mi/h):30 Enter reaction time (sec): 1.5 Enter Cocfficient of friction: 0.47 Enter Road Grade:-0.03 SSD: 134.784 ftl #define gM 9.81 @define gF 32.2 1θ 11 #define cM0.278 12 #definecF 1.4 13 14 int main() 15 int ch; 16 17 18 cout << "Enter choice of units -"<< endl; 19 cout << "1" Metric" くくendl; cout << "2. U.S.Customery Units << endl; cout << "Enter Choice: "; cin > ch; 2e 21 23 24 float t, f, G; double SSD; 25 26 27 28 Switch(ch) 29 case 1: 30

Note: The complete program is tested and the output is attached, please wait the table is being updated. I will attach once it is done.
