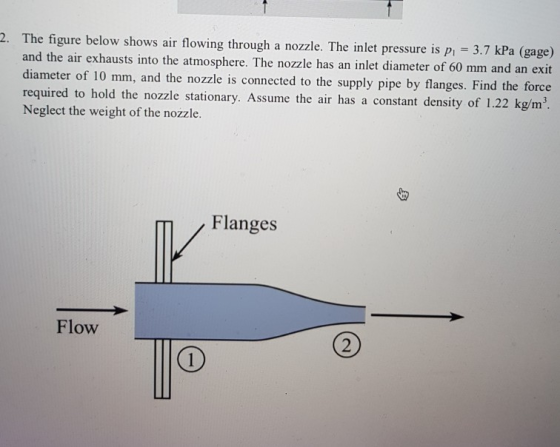

g through a nozzle. The inlet pressure is p 3.7 kPa (gage) air flowing and the air exhausts into the atmosphere. The...
Air flows into the atmosphere from a nozzle and strikes a vertical plate as shown in...
Air flows into the atmosphere from a nozzle and strikes a vertical plate as shown in below figure. The reading on the pressure gage was 1.82 kPa. Determine the horizontal force required to hold the plate in place. Assume the flow to be incompressible and frictionless. Also consider the density of air is 1.23 kg/m² and neglect the air weight. P-1.82 kPa F-IN A-0.003 m A-0.01 m
Air flows into the atmosphere from a nozzle and strikes a vertical plate as shown in...
Air flows into the atmosphere from a nozzle and strikes a
vertical plate as shown in below figure. The reading on the
pressure gage was 1.82 kPa. Determine the horizontal force required
to hold the plate in place. Assume the flow to be incompressible
and frictionless. Also consider the density of air is 1.23 kg/m3
and neglect the air weight.
P= 1.82 kPa F = ?? N A=0.003 m A = 0,01 m²
Consider water flowing through a converging channel as shown and discharging freely to the atmosphere at...
Consider water flowing through a converging channel as shown and discharging freely to the atmosphere at the exit. What is the gage pressure at the inlet? Assume the flow to be incompressible, and neglect any frictional effects. D, = 150 mm D2 = 75 mm V1 = 1.2 m/s P2 = Patm %3D (A) 10.2 kPa (B) 10.8 kPa (C) 11.3 kPa (D) 12.7 kPa
Q 5 please DC 28 29 Questions 28 5. A convergent nozzle has an inlet area...
Q 5 please
DC 28 29 Questions 28 5. A convergent nozzle has an inlet area of 100 mm2 and an exit area of 50 mm2. The fluid flowing through the nozzle is air, having a density of 1.2 kg/m3 and a velocity of 20 m/s at the inlet. If the density at the outlet is 0.18 kg/m3, calculate the mass flow rate and the outlet velocity 6. Water flows through a circular pipe A with a constant diameter of...
A flow nozzle equipped with a differential pressure gage is used to measure the flow rate of water at 10°C (p 9997 kg/m3 and p 1.307 x 10-3 kg/m s) through a 3-cm-diameter horizontal pipe. The nozzle...
A flow nozzle equipped with a differential pressure gage is used to measure the flow rate of water at 10°C (p 9997 kg/m3 and p 1.307 x 10-3 kg/m s) through a 3-cm-diameter horizontal pipe. The nozzle exit diameter is 1.5 cm, and the measured pressure drop is 3.3 kPa. Determine the volume flow rate of water, the average velocity through the pipe, and the head loss 1.5 cm Differential pressure gage -3 m3(s m/s The volume flow rate of...
Question 2 (30 marks) (a) A fluid flowing into a nozzle with specific enthalpy of 2980...
Question 2 (30 marks) (a) A fluid flowing into a nozzle with specific enthalpy of 2980 kJ/kg and the velocity is 80 m/s. At the exit of the nozzle, the specific enthalpy of the fluid drops to 2670 kJ/kg. The nozzle orientation is horizontal and the heat loss is negligible. Given that the nozzle inlet area is 0.25 m2 and the specific volume of the fluid is 0.2 m2/kg, calculate the velocity of the fluid at exit, the mass flow...
Air enters a nozzle in a jet engine at a pressure of 500 kPa, temperature of...
Air enters a nozzle in a jet engine at a pressure of 500 kPa, temperature of 650K, and velocity of 75 m/s. The air exits the nozzle at a pressure of 100 kPa, and the isentropic nozzle efficiency is 82%. a). Determine the velocity of the air at the nozzle exit. b). Determine the rate of entropy generation in the nozzle per kg of air flowing in kW/kgK
ater (density 1000 kg/m3, viscosity 0.001 N-s/m2) flows from a large reservoir through straight pipe into the atmosphere at a flowrate of 2.5 m3/s. The reservoir is pressurized to 200 kPa (gage)....
ater (density 1000 kg/m3, viscosity 0.001 N-s/m2) flows from a large reservoir through straight pipe into the atmosphere at a flowrate of 2.5 m3/s. The reservoir is pressurized to 200 kPa (gage). The pipe has a diameter of 0.5 m and absolute roughness of 0.1 mm. The pipe also contains a turbine that has an efficiency of 0.6. si A) Is the flow in the pipe laminar or turbulent? (3 pts) B) What is the power transmitted from the turbine...
8-C) As shown below water is pumped and sprayed through a nozzle into the atmosphere at 20 m/s at...
8-C) As shown below water is pumped and sprayed through a nozzle into the atmosphere at 20 m/s at an elevation 10 m above the reservoir surface. The mass flow rate is 40 kg/s and the volumetric flow rate is 0.040 m3/s. The large diameter inlet pipe total length is 50 m. The pump effidency is 65%. The longer smaller diameter pipe leaving the pump is 200 m in total length. The pipes have different diameters as indicated below. The...
5) Oil (S.G=0.9) flows enters the pipe shown through the bottom inlet at a rate of...
5) Oil (S.G=0.9) flows enters the pipe shown through the bottom inlet at a rate of 0.25 m/min and is discharged to at P. - 76 kPa the nozzle outlet at the top. The pipe has a diameter Di = 40 mm at the entrance and a diameter D2 = 20 mm at the exit. If P. = 76 kPa, P2 =20 kPa, and the weight the oil and the piping is negligible, what is the reaction moment at flange...
Air flows into the atmosphere from a nozzle and strikes a vertical plate as shown in below figure. The reading on the pressure gage was 1.82 kPa. Determine the horizontal force required to hold the plate in place. Assume the flow to be incompressible and frictionless. Also consider the density of air is 1.23 kg/m² and neglect the air weight. P-1.82 kPa F-IN A-0.003 m A-0.01 m
Air flows into the atmosphere from a nozzle and strikes a
vertical plate as shown in below figure. The reading on the
pressure gage was 1.82 kPa. Determine the horizontal force required
to hold the plate in place. Assume the flow to be incompressible
and frictionless. Also consider the density of air is 1.23 kg/m3
and neglect the air weight.
P= 1.82 kPa F = ?? N A=0.003 m A = 0,01 m²
Consider water flowing through a converging channel as shown and discharging freely to the atmosphere at the exit. What is the gage pressure at the inlet? Assume the flow to be incompressible, and neglect any frictional effects. D, = 150 mm D2 = 75 mm V1 = 1.2 m/s P2 = Patm %3D (A) 10.2 kPa (B) 10.8 kPa (C) 11.3 kPa (D) 12.7 kPa
Q 5 please
DC 28 29 Questions 28 5. A convergent nozzle has an inlet area of 100 mm2 and an exit area of 50 mm2. The fluid flowing through the nozzle is air, having a density of 1.2 kg/m3 and a velocity of 20 m/s at the inlet. If the density at the outlet is 0.18 kg/m3, calculate the mass flow rate and the outlet velocity 6. Water flows through a circular pipe A with a constant diameter of...
A flow nozzle equipped with a differential pressure gage is used to measure the flow rate of water at 10°C (p 9997 kg/m3 and p 1.307 x 10-3 kg/m s) through a 3-cm-diameter horizontal pipe. The nozzle exit diameter is 1.5 cm, and the measured pressure drop is 3.3 kPa. Determine the volume flow rate of water, the average velocity through the pipe, and the head loss 1.5 cm Differential pressure gage -3 m3(s m/s The volume flow rate of...
Question 2 (30 marks) (a) A fluid flowing into a nozzle with specific enthalpy of 2980 kJ/kg and the velocity is 80 m/s. At the exit of the nozzle, the specific enthalpy of the fluid drops to 2670 kJ/kg. The nozzle orientation is horizontal and the heat loss is negligible. Given that the nozzle inlet area is 0.25 m2 and the specific volume of the fluid is 0.2 m2/kg, calculate the velocity of the fluid at exit, the mass flow...
ater (density 1000 kg/m3, viscosity 0.001 N-s/m2) flows from a large reservoir through straight pipe into the atmosphere at a flowrate of 2.5 m3/s. The reservoir is pressurized to 200 kPa (gage). The pipe has a diameter of 0.5 m and absolute roughness of 0.1 mm. The pipe also contains a turbine that has an efficiency of 0.6. si A) Is the flow in the pipe laminar or turbulent? (3 pts) B) What is the power transmitted from the turbine...
8-C) As shown below water is pumped and sprayed through a nozzle into the atmosphere at 20 m/s at an elevation 10 m above the reservoir surface. The mass flow rate is 40 kg/s and the volumetric flow rate is 0.040 m3/s. The large diameter inlet pipe total length is 50 m. The pump effidency is 65%. The longer smaller diameter pipe leaving the pump is 200 m in total length. The pipes have different diameters as indicated below. The...
5) Oil (S.G=0.9) flows enters the pipe shown through the bottom inlet at a rate of 0.25 m/min and is discharged to at P. - 76 kPa the nozzle outlet at the top. The pipe has a diameter Di = 40 mm at the entrance and a diameter D2 = 20 mm at the exit. If P. = 76 kPa, P2 =20 kPa, and the weight the oil and the piping is negligible, what is the reaction moment at flange...
